Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 90-112 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
61 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 90 × 98 × 2 mm | 90 mm | 98 mm | 2 mm |
| Simmerring 90 × 105 × 10 mm | 90 mm | 105 mm | 10 mm |
| Simmerring 90 × 110 × 5 mm | 90 mm | 110 mm | 5 mm |
| Simmerring 90 × 110 × 7 mm | 90 mm | 110 mm | 7 mm |
| Simmerring 90 × 110 × 8 mm | 90 mm | 110 mm | 8 mm |
| Simmerring 90 × 110 × 8,5 mm | 90 mm | 110 mm | 8,5 mm |
| Simmerring 90 × 110 × 9/10 mm | 90 mm | 110 mm | 9/10 mm |
| Simmerring 90 × 110 × 10 mm | 90 mm | 110 mm | 10 mm |
| Simmerring 90 × 112 × 2 mm | 90 mm | 112 mm | 2 mm |
| Simmerring 90 × 115 × 9 mm | 90 mm | 115 mm | 9 mm |
| Simmerring 90 × 115 × 10 mm | 90 mm | 115 mm | 10 mm |
| Simmerring 90 × 115 × 15 mm | 90 mm | 115 mm | 15 mm |
| Simmerring 91 × 120 × 1 mm | 91 mm | 120 mm | 1 mm |
| Simmerring 91 × 120 × 10 mm | 91 mm | 120 mm | 10 mm |
| Simmerring 91 × 124 × 3 mm | 91 mm | 124 mm | 3 mm |
| Simmerring 91 × 125 × 2 mm | 91 mm | 125 mm | 2 mm |
| Simmerring 91 × 125 × 3 mm | 91 mm | 125 mm | 3 mm |
| Simmerring 91 × 125 × 7 mm | 91 mm | 125 mm | 7 mm |
| Simmerring 91 × 125 × 14 mm | 91 mm | 125 mm | 14 mm |
| Simmerring 91 × 125 × 15 mm | 91 mm | 125 mm | 15 mm |
| Simmerring 91 × 127 × 11,31 mm | 91 mm | 127 mm | 11,31 mm |
| Simmerring 91 × 130 × 1 mm | 91 mm | 130 mm | 1 mm |
| Simmerring 91 × 130 × 3 mm | 91 mm | 130 mm | 3 mm |
| Simmerring 91 × 130 × 4 mm | 91 mm | 130 mm | 4 mm |
| Simmerring 91 × 130 × 10 mm | 91 mm | 130 mm | 10 mm |
| Simmerring 91 × 130 × 15 mm | 91 mm | 130 mm | 15 mm |
| Simmerring 91 × 130 × 16 mm | 91 mm | 130 mm | 16 mm |
| Simmerring 91 × 130 × 18,5 mm | 91 mm | 130 mm | 18,5 mm |
| Simmerring 91 × 135 × 10 mm | 91 mm | 135 mm | 10 mm |
| Simmerring 91 × 135 × 12 mm | 91 mm | 135 mm | 12 mm |
| Simmerring 91 × 230 × 1 mm | 91 mm | 230 mm | 1 mm |
| Simmerring 92,07 × 747 × 12,7 mm | 92,07 mm | 747 mm | 12,7 mm |
| Simmerring 93 × 108 × 7 mm | 93 mm | 108 mm | 7 mm |
| Simmerring 98 × 120 × 7 mm | 98 mm | 120 mm | 7 mm |
| Simmerring 98 × 210 × 2 mm | 98 mm | 210 mm | 2 mm |
| Simmerring 99 × 122 × 17 mm | 99 mm | 122 mm | 17 mm |
| Simmerring 99 × 125 × 5 mm | 99 mm | 125 mm | 5 mm |
| Simmerring 99 × 125,25 × 10 mm | 99 mm | 125,25 mm | 10 mm |
| Simmerring 99 × 130 × 1 mm | 99 mm | 130 mm | 1 mm |
| Simmerring 99 × 130 × 4 mm | 99 mm | 130 mm | 4 mm |
| Simmerring 99 × 133 × 5 mm | 99 mm | 133 mm | 5 mm |
| Simmerring 99 × 145 × 10 mm | 99 mm | 145 mm | 10 mm |
| Simmerring 99 × 145 × 10/15 mm | 99 mm | 145 mm | 10/15 mm |
| Simmerring 99,2 × 110 × 8,5 mm | 99,2 mm | 110 mm | 8,5 mm |
| Simmerring 99,2 × 110 × 10 mm | 99,2 mm | 110 mm | 10 mm |
| Simmerring 99,5 × 115 × 5 mm | 99,5 mm | 115 mm | 5 mm |
| Simmerring 99,5 × 115 × 14 mm | 99,5 mm | 115 mm | 14 mm |
| Simmerring 99,5 × 115 × 19 mm | 99,5 mm | 115 mm | 19 mm |
| Simmerring 99,5 × 120 × 10 mm | 99,5 mm | 120 mm | 10 mm |
| Simmerring 99,5 × 120 × 14 mm | 99,5 mm | 120 mm | 14 mm |
| Simmerring 99,5 × 120 × 15 mm | 99,5 mm | 120 mm | 15 mm |
| Simmerring 99,5 × 125 × 1 mm | 99,5 mm | 125 mm | 1 mm |
| Simmerring 99,5 × 130 × 1 mm | 99,5 mm | 130 mm | 1 mm |
| Simmerring 99,5 × 130 × 15 mm | 99,5 mm | 130 mm | 15 mm |
| Simmerring 99,5 × 130 × 16 mm | 99,5 mm | 130 mm | 16 mm |
| Simmerring 99,5 × 135 × 13 mm | 99,5 mm | 135 mm | 13 mm |
| Simmerring 100 × 140 × 15,52 mm | 100 mm | 140 mm | 15,52 mm |
| Simmerring 100 × 140 × 15,572 mm | 100 mm | 140 mm | 15,572 mm |
| Simmerring 100 × 150 × 2 mm | 100 mm | 150 mm | 2 mm |
| Simmerring 100 × 150 × 15,5/20 mm | 100 mm | 150 mm | 15,5/20 mm |
| Simmerring 107,95 × 139,36 × 11,13 mm | 107,95 mm | 139,36 mm | 11,13 mm |

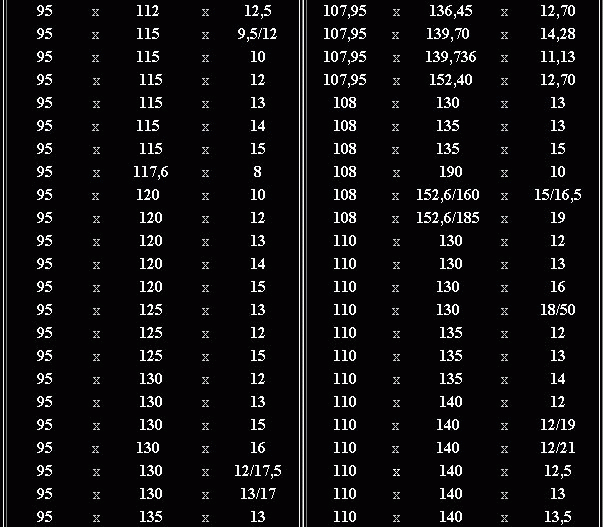

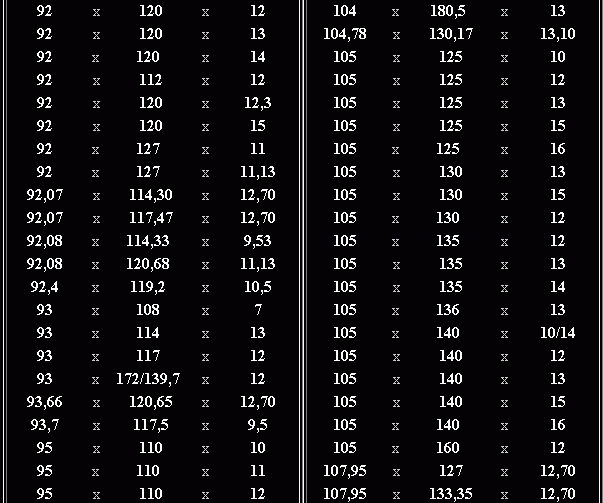

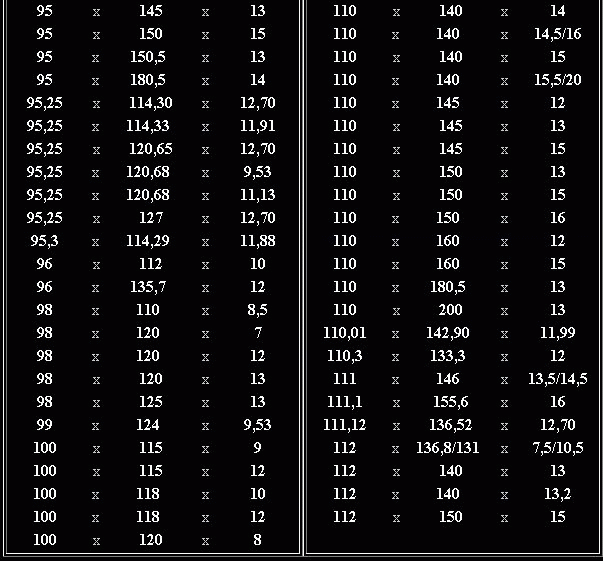

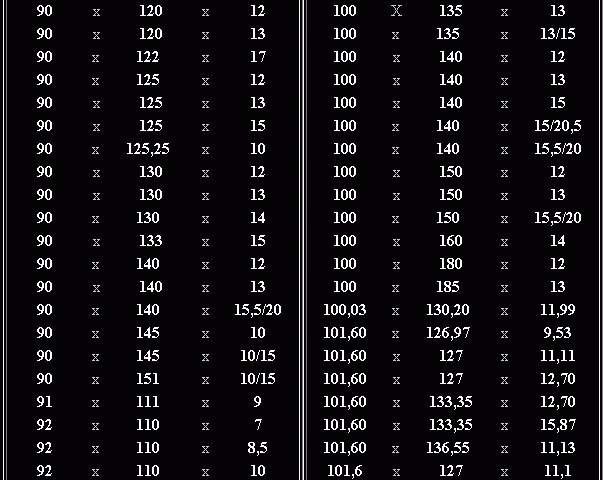

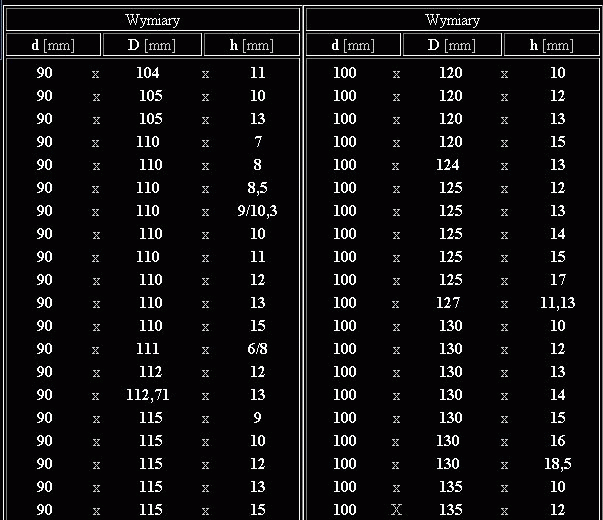

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
