Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 76-89 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
77 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 76 × 94 × 9 mm | 76 mm | 94 mm | 9 mm |
| Simmerring 77 × 93 × 10/12 mm | 77 mm | 93 mm | 10/12 mm |
| Simmerring 77,2 × 101,6 × 12,7 mm | 77,2 mm | 101,6 mm | 12,7 mm |
| Simmerring 77,9 × 95 × 10 mm | 77,9 mm | 95 mm | 10 mm |
| Simmerring 77,9 × 99 × 9,6 mm | 77,9 mm | 99 mm | 9,6 mm |
| Simmerring 77,937 × 101,6 × 12,7 mm | 77,937 mm | 101,6 mm | 12,7 mm |
| Simmerring 77,937 × 104,77 × 12,7 mm | 77,937 mm | 104,77 mm | 12,7 mm |
| Simmerring 77,938 × 95,25 × 1 mm | 77,938 mm | 95,25 mm | 1 mm |
| Simmerring 77,938 × 104,78 × 9,53 mm | 77,938 mm | 104,78 mm | 9,53 mm |
| Simmerring 78 × 100 × 8 mm | 78 mm | 100 mm | 8 mm |
| Simmerring 78 × 100 × 14 mm | 78 mm | 100 mm | 14 mm |
| Simmerring 78 × 105 × 10 mm | 78 mm | 105 mm | 10 mm |
| Simmerring 78 × 105 × 15 mm | 78 mm | 105 mm | 15 mm |
| Simmerring 78 × 108 × 10 mm | 78 mm | 108 mm | 10 mm |
| Simmerring 78 × 110 × 13 mm | 78 mm | 110 mm | 13 mm |
| Simmerring 78 × 120 × 1 mm | 78 mm | 120 mm | 1 mm |
| Simmerring 78 × 120 × 15 mm | 78 mm | 120 mm | 15 mm |
| Simmerring 78 × 125 × 10 mm | 78 mm | 125 mm | 10 mm |
| Simmerring 78 × 140 × 2 mm | 78 mm | 140 mm | 2 mm |
| Simmerring 78,2 × 105 × 4 mm | 78,2 mm | 105 mm | 4 mm |
| Simmerring 78,6 × 100 × 8,5 mm | 78,6 mm | 100 mm | 8,5 mm |
| Simmerring 78,6 × 105 × 10 mm | 78,6 mm | 105 mm | 10 mm |
| Simmerring 78,6 × 110 × 16 mm | 78,6 mm | 110 mm | 16 mm |
| Simmerring 78,89 × 104,78 × 9,5 mm | 78,89 mm | 104,78 mm | 9,5 mm |
| Simmerring 79 × 127 × 1,28 mm | 79 mm | 127 mm | 1,28 mm |
| Simmerring 79,938 × 104,78 × 11,13 mm | 79,938 mm | 104,78 mm | 11,13 mm |
| Simmerring 80 × 100 × 10 mm | 80 mm | 100 mm | 10 mm |
| Simmerring 80 × 100 × 12 mm | 80 mm | 100 mm | 12 mm |
| Simmerring 80 × 105 × 2 mm | 80 mm | 105 mm | 2 mm |
| Simmerring 80 × 110,05 × 12 mm | 80 mm | 110,05 mm | 12 mm |
| Simmerring 81,2 × 107,92 × 11,13 mm | 81,2 mm | 107,92 mm | 11,13 mm |
| Simmerring 82 × 98,25 × 9,82 mm | 82 mm | 98,25 mm | 9,82 mm |
| Simmerring 82 × 98,45 × 11,13 mm | 82 mm | 98,45 mm | 11,13 mm |
| Simmerring 83 × 95 × 13 mm | 83 mm | 95 mm | 13 mm |
| Simmerring 85 × 105 × 1 mm | 85 mm | 105 mm | 1 mm |
| Simmerring 85 × 105 × 8 mm | 85 mm | 105 mm | 8 mm |
| Simmerring 85 × 105 × 9 mm | 85 mm | 105 mm | 9 mm |
| Simmerring 85 × 105 × 10 mm | 85 mm | 105 mm | 10 mm |
| Simmerring 85 × 105 × 15 mm | 85 mm | 105 mm | 15 mm |
| Simmerring 85 × 105 × 16,5 mm | 85 mm | 105 mm | 16,5 mm |
| Simmerring 85 × 105 × 68/11 mm | 85 mm | 105 mm | 68/11 mm |
| Simmerring 85 × 105 × 103/12 mm | 85 mm | 105 mm | 103/12 mm |
| Simmerring 85 × 110 × 1 mm | 85 mm | 110 mm | 1 mm |
| Simmerring 85 × 110 × 4 mm | 85 mm | 110 mm | 4 mm |
| Simmerring 85 × 110 × 10 mm | 85 mm | 110 mm | 10 mm |
| Simmerring 85 × 110 × 12/16 mm | 85 mm | 110 mm | 12/16 mm |
| Simmerring 85 × 110 × 15 mm | 85 mm | 110 mm | 15 mm |
| Simmerring 85 × 115 × 12 mm | 85 mm | 115 mm | 12 mm |
| Simmerring 86 × 100 × 12,75 mm | 86 mm | 100 mm | 12,75 mm |
| Simmerring 86 × 105 × 13 mm | 86 mm | 105 mm | 13 mm |
| Simmerring 87,2 × 101,6 × 9,82 mm | 87,2 mm | 101,6 mm | 9,82 mm |
| Simmerring 87,2 × 101,6 × 14 mm | 87,2 mm | 101,6 mm | 14 mm |
| Simmerring 87,2 × 114,3 × 11,13 mm | 87,2 mm | 114,3 mm | 11,13 mm |
| Simmerring 87,62 × 101,68 × 2 mm | 87,62 mm | 101,68 mm | 2 mm |
| Simmerring 88 × 95 × 8 mm | 88 mm | 95 mm | 8 mm |
| Simmerring 88 × 95 × 10 mm | 88 mm | 95 mm | 10 mm |
| Simmerring 88 × 96 × 9 mm | 88 mm | 96 mm | 9 mm |
| Simmerring 88 × 100 × 3 mm | 88 mm | 100 mm | 3 mm |
| Simmerring 88 × 100 × 10 mm | 88 mm | 100 mm | 10 mm |
| Simmerring 88 × 100 × 13 mm | 88 mm | 100 mm | 13 mm |
| Simmerring 88 × 100 × 14,5 mm | 88 mm | 100 mm | 14,5 mm |
| Simmerring 88 × 105 × 3 mm | 88 mm | 105 mm | 3 mm |
| Simmerring 88 × 105 × 5,6 mm | 88 mm | 105 mm | 5,6 mm |
| Simmerring 88 × 110 × 2 mm | 88 mm | 110 mm | 2 mm |
| Simmerring 88 × 110 × 10 mm | 88 mm | 110 mm | 10 mm |
| Simmerring 88 × 120 × 2 mm | 88 mm | 120 mm | 2 mm |
| Simmerring 88 × 120 × 7 mm | 88 mm | 120 mm | 7 mm |
| Simmerring 88 × 120 × 10 mm | 88 mm | 120 mm | 10 mm |
| Simmerring 88 × 160 × 1 mm | 88 mm | 160 mm | 1 mm |
| Simmerring 88,261 × 139,7 × 165/194 mm | 88,261 mm | 139,7 mm | 165/194 mm |
| Simmerring 88,3 × 100 × 9 mm | 88,3 mm | 100 mm | 9 mm |
| Simmerring 88,573 × 115 × 13 mm | 88,573 mm | 115 mm | 13 mm |
| Simmerring 88,6 × 98 × 10 mm | 88,6 mm | 98 mm | 10 mm |
| Simmerring 88,6 × 100 × 13/15 mm | 88,6 mm | 100 mm | 13/15 mm |
| Simmerring 88,6 × 110 × 2 mm | 88,6 mm | 110 mm | 2 mm |
| Simmerring 88,7 × 100 × 8,5 mm | 88,7 mm | 100 mm | 8,5 mm |
| Simmerring 88,8 × 105 × 10/15 mm | 88,8 mm | 105 mm | 10/15 mm |

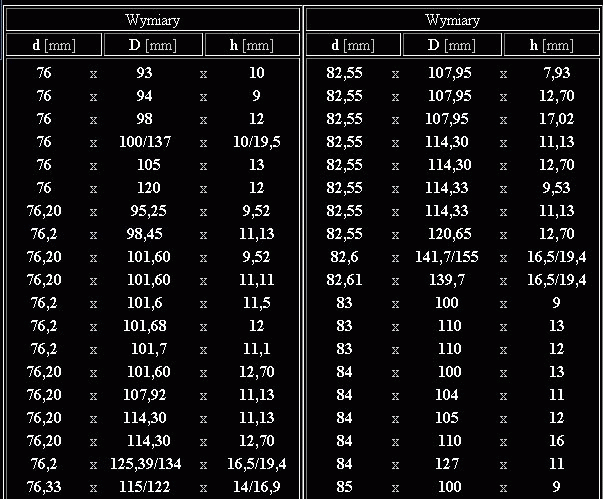

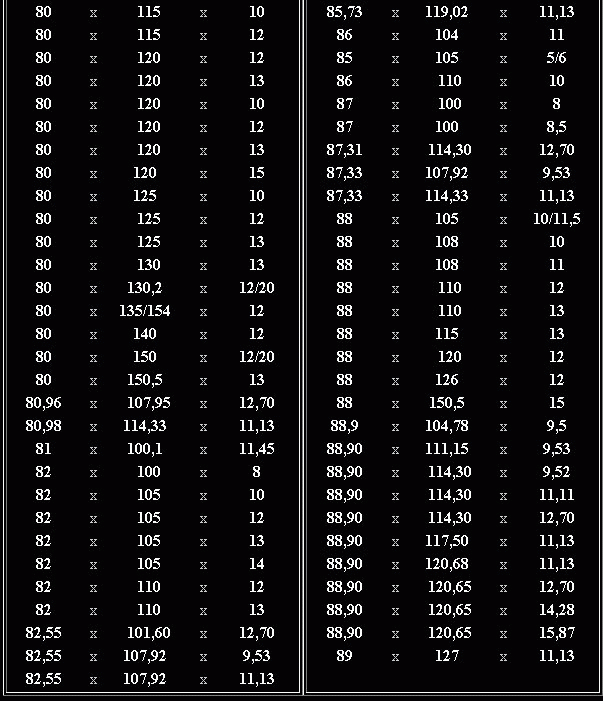

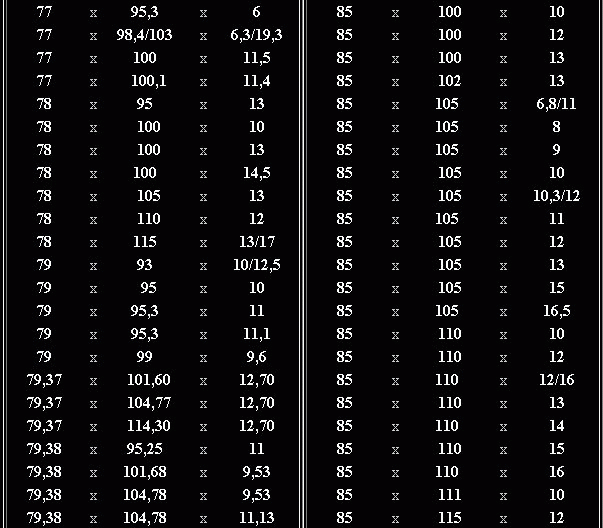

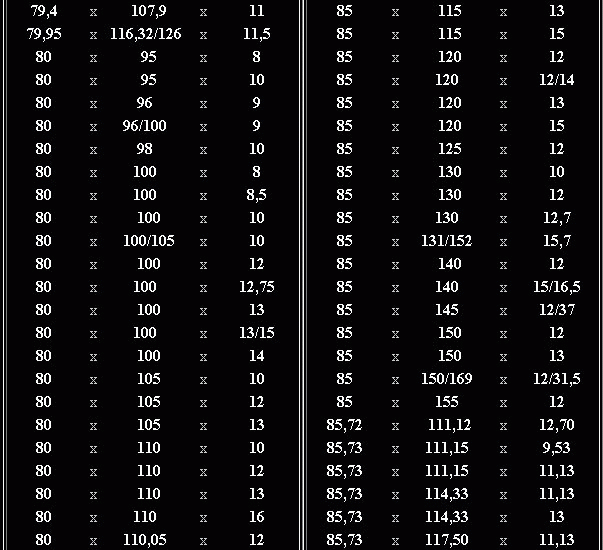

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
