Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 66-75 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
114 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 66 × 80 × 9 mm | 66 mm | 80 mm | 9 mm |
| Simmerring 66 × 85 × 8/10 mm | 66 mm | 85 mm | 8/10 mm |
| Simmerring 66 × 85 × 10 mm | 66 mm | 85 mm | 10 mm |
| Simmerring 66,667 × 85,72 × 9,82 mm | 66,667 mm | 85,72 mm | 9,82 mm |
| Simmerring 66,667 × 88,96 × 12,7 mm | 66,667 mm | 88,96 mm | 12,7 mm |
| Simmerring 66,667 × 89,3 × 10 mm | 66,667 mm | 89,3 mm | 10 mm |
| Simmerring 66,668 × 85,62 × 11,13 mm | 66,668 mm | 85,62 mm | 11,13 mm |
| Simmerring 66,668 × 89,99 × 12,76 mm | 66,668 mm | 89,99 mm | 12,76 mm |
| Simmerring 66,668 × 92,02 × 9,53 mm | 66,668 mm | 92,02 mm | 9,53 mm |
| Simmerring 66,668 × 92,02 × 11,13 mm | 66,668 mm | 92,02 mm | 11,13 mm |
| Simmerring 66,67 × 85,6 × 12 mm | 66,67 mm | 85,6 mm | 12 mm |
| Simmerring 66,67 × 85,7 × 10 mm | 66,67 mm | 85,7 mm | 10 mm |
| Simmerring 66,7 × 85 × 10 mm | 66,7 mm | 85 mm | 10 mm |
| Simmerring 66,8 × 80 × 8 mm | 66,8 mm | 80 mm | 8 mm |
| Simmerring 67 × 85 × 8 mm | 67 mm | 85 mm | 8 mm |
| Simmerring 67 × 87 × 8,5 mm | 67 mm | 87 mm | 8,5 mm |
| Simmerring 67 × 88 × 2 mm | 67 mm | 88 mm | 2 mm |
| Simmerring 67 × 88 × 8 mm | 67 mm | 88 mm | 8 mm |
| Simmerring 67 × 88 × 10/12 mm | 67 mm | 88 mm | 10/12 mm |
| Simmerring 67 × 90 × 2 mm | 67 mm | 90 mm | 2 mm |
| Simmerring 67 × 90 × 7 mm | 67 mm | 90 mm | 7 mm |
| Simmerring 67 × 90 × 8 mm | 67 mm | 90 mm | 8 mm |
| Simmerring 67 × 90 × 13,56 mm | 67 mm | 90 mm | 13,56 mm |
| Simmerring 67 × 92 × 1 mm | 67 mm | 92 mm | 1 mm |
| Simmerring 67 × 92 × 8,5 mm | 67 mm | 92 mm | 8,5 mm |
| Simmerring 67 × 92 × 10 mm | 67 mm | 92 mm | 10 mm |
| Simmerring 67 × 92 × 18 mm | 67 mm | 92 mm | 18 mm |
| Simmerring 67 × 95 × 3 mm | 67 mm | 95 mm | 3 mm |
| Simmerring 67 × 95 × 8 mm | 67 mm | 95 mm | 8 mm |
| Simmerring 67 × 96 × 9 mm | 67 mm | 96 mm | 9 mm |
| Simmerring 67 × 96 × 13,5 mm | 67 mm | 96 mm | 13,5 mm |
| Simmerring 67 × 96 × 18/12 mm | 67 mm | 96 mm | 18/12 mm |
| Simmerring 67 × 96 × 135/145 mm | 67 mm | 96 mm | 135/145 mm |
| Simmerring 67 × 98 × 2 mm | 67 mm | 98 mm | 2 mm |
| Simmerring 67 × 98 × 10 mm | 67 mm | 98 mm | 10 mm |
| Simmerring 67 × 98 × 13 mm | 67 mm | 98 mm | 13 mm |
| Simmerring 67 × 98 × 13/45 mm | 67 mm | 98 mm | 13/45 mm |
| Simmerring 67 × 100 × 10 mm | 67 mm | 100 mm | 10 mm |
| Simmerring 67 × 100 × 13,871 mm | 67 mm | 100 mm | 13,871 mm |
| Simmerring 67 × 110 × 10 mm | 67 mm | 110 mm | 10 mm |
| Simmerring 67 × 120 × 10 mm | 67 mm | 120 mm | 10 mm |
| Simmerring 67 × 179 × 14 mm | 67 mm | 179 mm | 14 mm |
| Simmerring 67,145 × 98,45 × 11,3 mm | 67,145 mm | 98,45 mm | 11,3 mm |
| Simmerring 67,45 × 102 × 14 mm | 67,45 mm | 102 mm | 14 mm |
| Simmerring 67,5 × 105 × 10 mm | 67,5 mm | 105 mm | 10 mm |
| Simmerring 68 × 86 × 8 mm | 68 mm | 86 mm | 8 mm |
| Simmerring 68 × 87 × 8 mm | 68 mm | 87 mm | 8 mm |
| Simmerring 68 × 88 × 8 mm | 68 mm | 88 mm | 8 mm |
| Simmerring 68 × 88 × 9,5 mm | 68 mm | 88 mm | 9,5 mm |
| Simmerring 68 × 90 × 2 mm | 68 mm | 90 mm | 2 mm |
| Simmerring 68 × 90 × 8 mm | 68 mm | 90 mm | 8 mm |
| Simmerring 68 × 90 × 10 mm | 68 mm | 90 mm | 10 mm |
| Simmerring 68 × 90 × 95/195 mm | 68 mm | 90 mm | 95/195 mm |
| Simmerring 68 × 92 × 2 mm | 68 mm | 92 mm | 2 mm |
| Simmerring 68 × 92 × 10 mm | 68 mm | 92 mm | 10 mm |
| Simmerring 68 × 94 × 8 mm | 68 mm | 94 mm | 8 mm |
| Simmerring 68 × 95 × 2 mm | 68 mm | 95 mm | 2 mm |
| Simmerring 68 × 95 × 10 mm | 68 mm | 95 mm | 10 mm |
| Simmerring 68 × 100 × 2 mm | 68 mm | 100 mm | 2 mm |
| Simmerring 68 × 100 × 10 mm | 68 mm | 100 mm | 10 mm |
| Simmerring 68 × 100 × 13 mm | 68 mm | 100 mm | 13 mm |
| Simmerring 68,6 × 100 × 11 mm | 68,6 mm | 100 mm | 11 mm |
| Simmerring 68,667 × 98,25 × 12,7 mm | 68,667 mm | 98,25 mm | 12,7 mm |
| Simmerring 69 × 80 × 4,285 mm | 69 mm | 80 mm | 4,285 mm |
| Simmerring 69,2 × 85 × 8 mm | 69,2 mm | 85 mm | 8 mm |
| Simmerring 69,2 × 90 × 8 mm | 69,2 mm | 90 mm | 8 mm |
| Simmerring 69,2 × 96 × 9 mm | 69,2 mm | 96 mm | 9 mm |
| Simmerring 69,2 × 105 × 3 mm | 69,2 mm | 105 mm | 3 mm |
| Simmerring 69,8 × 84,05 × 2 mm | 69,8 mm | 84,05 mm | 2 mm |
| Simmerring 69,8 × 98,4 × 19 mm | 69,8 mm | 98,4 mm | 19 mm |
| Simmerring 69,85 × 88,9 × 12,76 mm | 69,85 mm | 88,9 mm | 12,76 mm |
| Simmerring 69,85 × 88,96 × 9,82 mm | 69,85 mm | 88,96 mm | 9,82 mm |
| Simmerring 69,85 × 98,25 × 12,7 mm | 69,85 mm | 98,25 mm | 12,7 mm |
| Simmerring 69,85 × 98,42 × 12,7 mm | 69,85 mm | 98,42 mm | 12,7 mm |
| Simmerring 69,85 × 98,45 × 11 mm | 69,85 mm | 98,45 mm | 11 mm |
| Simmerring 69,85 × 98,45 × 11,13 mm | 69,85 mm | 98,45 mm | 11,13 mm |
| Simmerring 70 × 80 × 12 mm | 70 mm | 80 mm | 12 mm |
| Simmerring 71 × 92 × 16 mm | 71 mm | 92 mm | 16 mm |
| Simmerring 71 × 96 × 10 mm | 71 mm | 96 mm | 10 mm |
| Simmerring 71 × 98 × 15/165 mm | 71 mm | 98 mm | 15/165 mm |
| Simmerring 71 × 100 × 2 mm | 71 mm | 100 mm | 2 mm |
| Simmerring 71 × 100 × 6 mm | 71 mm | 100 mm | 6 mm |
| Simmerring 71 × 101,6 × 14,2 mm | 71 mm | 101,6 mm | 14,2 mm |
| Simmerring 71 × 105 × 2 mm | 71 mm | 105 mm | 2 mm |
| Simmerring 71 × 105 × 10 mm | 71 mm | 105 mm | 10 mm |
| Simmerring 71 × 110 × 2 mm | 71 mm | 110 mm | 2 mm |
| Simmerring 71 × 110 × 8 mm | 71 mm | 110 mm | 8 mm |
| Simmerring 71 × 110 × 12,7 mm | 71 mm | 110 mm | 12,7 mm |
| Simmerring 71 × 118 × 18 mm | 71 mm | 118 mm | 18 mm |
| Simmerring 71 × 125 × 1 mm | 71 mm | 125 mm | 1 mm |
| Simmerring 71 × 125 × 2 mm | 71 mm | 125 mm | 2 mm |
| Simmerring 72 × 85,5 × 8/105 mm | 72 mm | 85,5 mm | 8/105 mm |
| Simmerring 72 × 86 × 7 mm | 72 mm | 86 mm | 7 mm |
| Simmerring 72 × 88 × 8 mm | 72 mm | 88 mm | 8 mm |
| Simmerring 72 × 90 × 2 mm | 72 mm | 90 mm | 2 mm |
| Simmerring 72 × 90 × 10 mm | 72 mm | 90 mm | 10 mm |
| Simmerring 72 × 95 × 1 mm | 72 mm | 95 mm | 1 mm |
| Simmerring 72 × 95 × 2 mm | 72 mm | 95 mm | 2 mm |
| Simmerring 72 × 95 × 10 mm | 72 mm | 95 mm | 10 mm |
| Simmerring 72 × 100 × 2 mm | 72 mm | 100 mm | 2 mm |
| Simmerring 72 × 100 × 3 mm | 72 mm | 100 mm | 3 mm |
| Simmerring 72 × 100 × 10 mm | 72 mm | 100 mm | 10 mm |
| Simmerring 73,02 × 92,07 × 11,11 mm | 73,02 mm | 92,07 mm | 11,11 mm |
| Simmerring 73,02 × 98,25 × 12,7 mm | 73,02 mm | 98,25 mm | 12,7 mm |
| Simmerring 73,03 × 92,02 × 11,13 mm | 73,03 mm | 92,02 mm | 11,13 mm |
| Simmerring 73,03 × 95,28 × 11,13 mm | 73,03 mm | 95,28 mm | 11,13 mm |
| Simmerring 74 × 88 × 8 mm | 74 mm | 88 mm | 8 mm |
| Simmerring 74 × 90 × 8 mm | 74 mm | 90 mm | 8 mm |
| Simmerring 74 × 90 × 10 mm | 74 mm | 90 mm | 10 mm |
| Simmerring 74 × 95 × 10 mm | 74 mm | 95 mm | 10 mm |
| Simmerring 74 × 98 × 2 mm | 74 mm | 98 mm | 2 mm |
| Simmerring 74,61 × 95,25 × 9,52 mm | 74,61 mm | 95,25 mm | 9,52 mm |
| Simmerring 74,63 × 95,28 × 9,53 mm | 74,63 mm | 95,28 mm | 9,53 mm |
| Simmerring 74,63 × 98,45 × 9,53 mm | 74,63 mm | 98,45 mm | 9,53 mm |

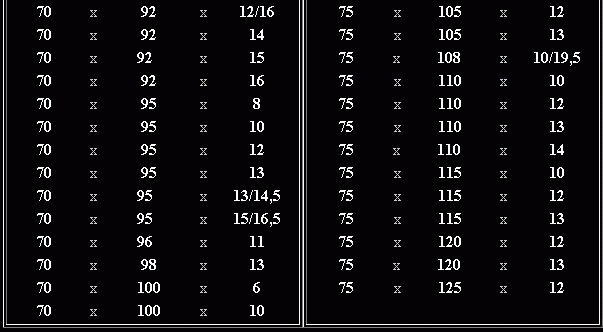

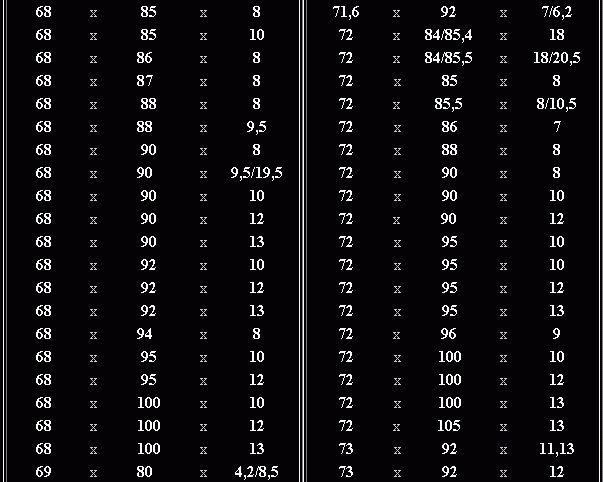

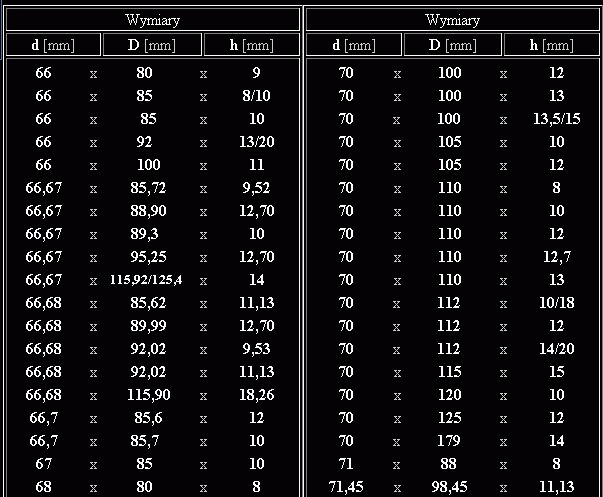

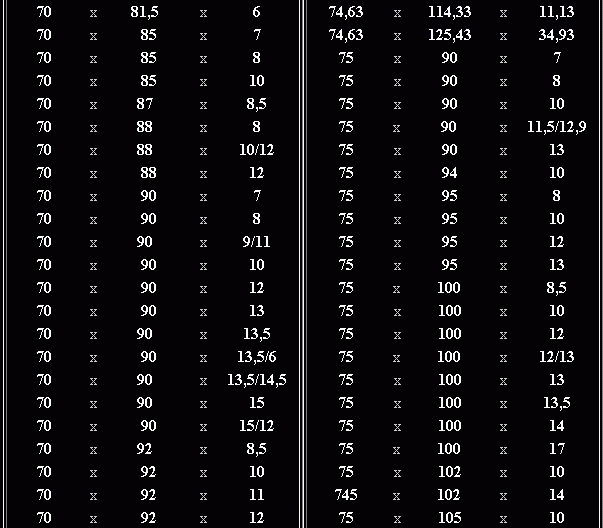

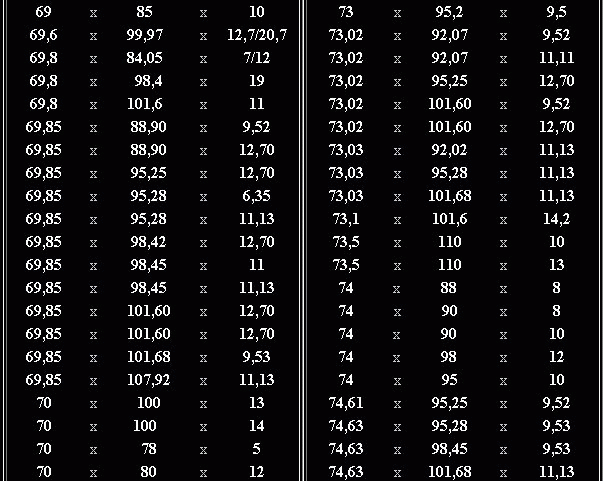

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
