Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 58-65 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
144 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 58 × 72 × 8 mm | 58 mm | 72 mm | 8 mm |
| Simmerring 58 × 72 × 9 mm | 58 mm | 72 mm | 9 mm |
| Simmerring 58 × 74 × 10 mm | 58 mm | 74 mm | 10 mm |
| Simmerring 58 × 75 × 9 mm | 58 mm | 75 mm | 9 mm |
| Simmerring 58 × 76 × 9 mm | 58 mm | 76 mm | 9 mm |
| Simmerring 58 × 82 × 1 mm | 58 mm | 82 mm | 1 mm |
| Simmerring 58 × 85 × 8 mm | 58 mm | 85 mm | 8 mm |
| Simmerring 58 × 85 × 10 mm | 58 mm | 85 mm | 10 mm |
| Simmerring 58 × 86 × 2 mm | 58 mm | 86 mm | 2 mm |
| Simmerring 58 × 86 × 10 mm | 58 mm | 86 mm | 10 mm |
| Simmerring 58 × 86 × 13/15 mm | 58 mm | 86 mm | 13/15 mm |
| Simmerring 58 × 86 × 16,5 mm | 58 mm | 86 mm | 16,5 mm |
| Simmerring 58 × 90 × 8 mm | 58 mm | 90 mm | 8 mm |
| Simmerring 58 × 96 × 3 mm | 58 mm | 96 mm | 3 mm |
| Simmerring 58 × 96 × 10 mm | 58 mm | 96 mm | 10 mm |
| Simmerring 58,3 × 80 × 1 mm | 58,3 mm | 80 mm | 1 mm |
| Simmerring 58,3 × 80 × 8 mm | 58,3 mm | 80 mm | 8 mm |
| Simmerring 58,5 × 80 × 8 mm | 58,5 mm | 80 mm | 8 mm |
| Simmerring 58,5 × 80 × 10 mm | 58,5 mm | 80 mm | 10 mm |
| Simmerring 58,5 × 88 × 2 mm | 58,5 mm | 88 mm | 2 mm |
| Simmerring 58,5 × 92 × 14 mm | 58,5 mm | 92 mm | 14 mm |
| Simmerring 58,5 × 100 × 3 mm | 58,5 mm | 100 mm | 3 mm |
| Simmerring 58,8 × 85 × 10 mm | 58,8 mm | 85 mm | 10 mm |
| Simmerring 58,8 × 92 × 1,13 mm | 58,8 mm | 92 mm | 1,13 mm |
| Simmerring 58,8 × 92 × 18 mm | 58,8 mm | 92 mm | 18 mm |
| Simmerring 58,8 × 96 × 15/20 mm | 58,8 mm | 96 mm | 15/20 mm |
| Simmerring 58,8 × 100 × 10 mm | 58,8 mm | 100 mm | 10 mm |
| Simmerring 58,8 × 100 × 14 mm | 58,8 mm | 100 mm | 14 mm |
| Simmerring 58,8 × 120 × 12/4 mm | 58,8 mm | 120 mm | 12/4 mm |
| Simmerring 59 × 86 × 10 mm | 59 mm | 86 mm | 10 mm |
| Simmerring 59,9 × 80 × 8/10 mm | 59,9 mm | 80 mm | 8/10 mm |
| Simmerring 60 × 74 × 10 mm | 60 mm | 74 mm | 10 mm |
| Simmerring 60 × 75 × 7 mm | 60 mm | 75 mm | 7 mm |
| Simmerring 60 × 75 × 10 mm | 60 mm | 75 mm | 10 mm |
| Simmerring 60 × 80 × 2 mm | 60 mm | 80 mm | 2 mm |
| Simmerring 60 × 80 × 7 mm | 60 mm | 80 mm | 7 mm |
| Simmerring 60 × 80 × 8 mm | 60 mm | 80 mm | 8 mm |
| Simmerring 60 × 80 × 9 mm | 60 mm | 80 mm | 9 mm |
| Simmerring 60 × 80 × 10 mm | 60 mm | 80 mm | 10 mm |
| Simmerring 60 × 80 × 10/13 mm | 60 mm | 80 mm | 10/13 mm |
| Simmerring 60 × 80 × 12,5 mm | 60 mm | 80 mm | 12,5 mm |
| Simmerring 60 × 80 × 13 mm | 60 mm | 80 mm | 13 mm |
| Simmerring 60 × 82 × 8 mm | 60 mm | 82 mm | 8 mm |
| Simmerring 60 × 82 × 10 mm | 60 mm | 82 mm | 10 mm |
| Simmerring 60 × 82 × 12 mm | 60 mm | 82 mm | 12 mm |
| Simmerring 60 × 85 × 3 mm | 60 mm | 85 mm | 3 mm |
| Simmerring 60 × 85 × 8 mm | 60 mm | 85 mm | 8 mm |
| Simmerring 60 × 85 × 10 mm | 60 mm | 85 mm | 10 mm |
| Simmerring 60 × 85 × 13/25 mm | 60 mm | 85 mm | 13/25 mm |
| Simmerring 60 × 85 × 14 mm | 60 mm | 85 mm | 14 mm |
| Simmerring 60 × 90 × 8 mm | 60 mm | 90 mm | 8 mm |
| Simmerring 60 × 90 × 10 mm | 60 mm | 90 mm | 10 mm |
| Simmerring 60 × 90 × 14/163 mm | 60 mm | 90 mm | 14/163 mm |
| Simmerring 60 × 92 × 3 mm | 60 mm | 92 mm | 3 mm |
| Simmerring 60 × 95 × 8 mm | 60 mm | 95 mm | 8 mm |
| Simmerring 60 × 96 × 13 mm | 60 mm | 96 mm | 13 mm |
| Simmerring 60 × 98 × 10 mm | 60 mm | 98 mm | 10 mm |
| Simmerring 60 × 98 × 13 mm | 60 mm | 98 mm | 13 mm |
| Simmerring 60 × 105 × 8 mm | 60 mm | 105 mm | 8 mm |
| Simmerring 60 × 110 × 3 mm | 60 mm | 110 mm | 3 mm |
| Simmerring 60 × 110 × 8 mm | 60 mm | 110 mm | 8 mm |
| Simmerring 60,3 × 85,7 × 12,7 mm | 60,3 mm | 85,7 mm | 12,7 mm |
| Simmerring 60,32 × 85,72 × 13 mm | 60,32 mm | 85,72 mm | 13 mm |
| Simmerring 60,32 × 720 × 9,52 mm | 60,32 mm | 720 mm | 9,52 mm |
| Simmerring 60,33 × 88,9 × 9,53 mm | 60,33 mm | 88,9 mm | 9,53 mm |
| Simmerring 60,33 × 794 × 9,571 mm | 60,33 mm | 794 mm | 9,571 mm |
| Simmerring 60,4 × 82,5 × 11 mm | 60,4 mm | 82,5 mm | 11 mm |
| Simmerring 60,4 × 793 × 11 mm | 60,4 mm | 793 mm | 11 mm |
| Simmerring 61,91 × 79,37 × 8,74 mm | 61,91 mm | 79,37 mm | 8,74 mm |
| Simmerring 61,91 × 82,55 × 9,52 mm | 61,91 mm | 82,55 mm | 9,52 mm |
| Simmerring 61,93 × 85,09 × 9,53 mm | 61,93 mm | 85,09 mm | 9,53 mm |
| Simmerring 61,93 × 88,9 × 11,13 mm | 61,93 mm | 88,9 mm | 11,13 mm |
| Simmerring 62 × 80 × 2 mm | 62 mm | 80 mm | 2 mm |
| Simmerring 62 × 80 × 8 mm | 62 mm | 80 mm | 8 mm |
| Simmerring 62 × 80 × 9 mm | 62 mm | 80 mm | 9 mm |
| Simmerring 62 × 82 × 10 mm | 62 mm | 82 mm | 10 mm |
| Simmerring 62 × 83 × 9 mm | 62 mm | 83 mm | 9 mm |
| Simmerring 62 × 83 × 10 mm | 62 mm | 83 mm | 10 mm |
| Simmerring 62 × 85 × 8/10 mm | 62 mm | 85 mm | 8/10 mm |
| Simmerring 62 × 85 × 8 mm | 62 mm | 85 mm | 8 mm |
| Simmerring 62 × 85 × 10 mm | 62 mm | 85 mm | 10 mm |
| Simmerring 62 × 86 × 10 mm | 62 mm | 86 mm | 10 mm |
| Simmerring 62 × 90 × 8 mm | 62 mm | 90 mm | 8 mm |
| Simmerring 62 × 90 × 10 mm | 62 mm | 90 mm | 10 mm |
| Simmerring 62 × 90 × 11,13 mm | 62 mm | 90 mm | 11,13 mm |
| Simmerring 62 × 90 × 12 mm | 62 mm | 90 mm | 12 mm |
| Simmerring 62 × 92 × 2 mm | 62 mm | 92 mm | 2 mm |
| Simmerring 62 × 92 × 3 mm | 62 mm | 92 mm | 3 mm |
| Simmerring 62 × 92 × 9 mm | 62 mm | 92 mm | 9 mm |
| Simmerring 62 × 92 × 10 mm | 62 mm | 92 mm | 10 mm |
| Simmerring 62 × 98 × 10 mm | 62 mm | 98 mm | 10 mm |
| Simmerring 62 × 100 × 2 mm | 62 mm | 100 mm | 2 mm |
| Simmerring 62 × 100 × 10 mm | 62 mm | 100 mm | 10 mm |
| Simmerring 63 × 78 × 5 mm | 63 mm | 78 mm | 5 mm |
| Simmerring 63 × 80 × 9 mm | 63 mm | 80 mm | 9 mm |
| Simmerring 63 × 85 × 8 mm | 63 mm | 85 mm | 8 mm |
| Simmerring 63 × 86 × 2 mm | 63 mm | 86 mm | 2 mm |
| Simmerring 63 × 86 × 10 mm | 63 mm | 86 mm | 10 mm |
| Simmerring 63 × 88 × 10 mm | 63 mm | 88 mm | 10 mm |
| Simmerring 63 × 96 × 8 mm | 63 mm | 96 mm | 8 mm |
| Simmerring 63 × 96 × 10 mm | 63 mm | 96 mm | 10 mm |
| Simmerring 63,5 × 76,2 × 9,52 mm | 63,5 mm | 76,2 mm | 9,52 mm |
| Simmerring 63,5 × 80,16 × 4,93 mm | 63,5 mm | 80,16 mm | 4,93 mm |
| Simmerring 63,5 × 82,5 × 8 mm | 63,5 mm | 82,5 mm | 8 mm |
| Simmerring 63,5 × 82,55 × 9,82 mm | 63,5 mm | 82,55 mm | 9,82 mm |
| Simmerring 63,5 × 82,55 × 12,7 mm | 63,5 mm | 82,55 mm | 12,7 mm |
| Simmerring 63,5 × 85,72 × 12,7 mm | 63,5 mm | 85,72 mm | 12,7 mm |
| Simmerring 63,5 × 87,3 × 12,7 mm | 63,5 mm | 87,3 mm | 12,7 mm |
| Simmerring 63,5 × 88,9 × 11,13 mm | 63,5 mm | 88,9 mm | 11,13 mm |
| Simmerring 63,5 × 88,9 × 12,7 mm | 63,5 mm | 88,9 mm | 12,7 mm |
| Simmerring 63,5 × 88,9 × 19 mm | 63,5 mm | 88,9 mm | 19 mm |
| Simmerring 63,5 × 88,96 × 9,52 mm | 63,5 mm | 88,96 mm | 9,52 mm |
| Simmerring 63,5 × 89,99 × 11,13 mm | 63,5 mm | 89,99 mm | 11,13 mm |
| Simmerring 63,5 × 90,49 × 12,7 mm | 63,5 mm | 90,49 mm | 12,7 mm |
| Simmerring 63,5 × 98,25 × 12,7 mm | 63,5 mm | 98,25 mm | 12,7 mm |
| Simmerring 63,5 × 98,45 × 11,13 mm | 63,5 mm | 98,45 mm | 11,13 mm |
| Simmerring 64 × 80 × 8 mm | 64 mm | 80 mm | 8 mm |
| Simmerring 64 × 80 × 13 mm | 64 mm | 80 mm | 13 mm |
| Simmerring 64 × 85 × 12 mm | 64 mm | 85 mm | 12 mm |
| Simmerring 64 × 88 × 6 mm | 64 mm | 88 mm | 6 mm |
| Simmerring 64 × 90 × 3 mm | 64 mm | 90 mm | 3 mm |
| Simmerring 64,9 × 96 × 10 mm | 64,9 mm | 96 mm | 10 mm |
| Simmerring 65 × 75 × 8 mm | 65 mm | 75 mm | 8 mm |
| Simmerring 65 × 80 × 12 mm | 65 mm | 80 mm | 12 mm |
| Simmerring 65 × 82 × 10 mm | 65 mm | 82 mm | 10 mm |
| Simmerring 65 × 85 × 2 mm | 65 mm | 85 mm | 2 mm |
| Simmerring 65 × 85 × 8 mm | 65 mm | 85 mm | 8 mm |
| Simmerring 65 × 85 × 13/17 mm | 65 mm | 85 mm | 13/17 mm |
| Simmerring 65 × 86 × 14 mm | 65 mm | 86 mm | 14 mm |
| Simmerring 65 × 90 × 3 mm | 65 mm | 90 mm | 3 mm |
| Simmerring 65 × 90 × 8 mm | 65 mm | 90 mm | 8 mm |
| Simmerring 65 × 90 × 10 mm | 65 mm | 90 mm | 10 mm |
| Simmerring 65 × 90 × 12 mm | 65 mm | 90 mm | 12 mm |
| Simmerring 65 × 92 × 2 mm | 65 mm | 92 mm | 2 mm |
| Simmerring 65 × 95 × 3 mm | 65 mm | 95 mm | 3 mm |
| Simmerring 65 × 95 × 12 mm | 65 mm | 95 mm | 12 mm |
| Simmerring 65 × 96 × 13/145 mm | 65 mm | 96 mm | 13/145 mm |
| Simmerring 65 × 98 × 10 mm | 65 mm | 98 mm | 10 mm |
| Simmerring 65 × 100 × 2 mm | 65 mm | 100 mm | 2 mm |
| Simmerring 65 × 100 × 8 mm | 65 mm | 100 mm | 8 mm |
| Simmerring 65 × 110 × 10 mm | 65 mm | 110 mm | 10 mm |
| Simmerring 65 × 120 × 2 mm | 65 mm | 120 mm | 2 mm |
| Simmerring 65 × 120 × 8 mm | 65 mm | 120 mm | 8 mm |
| Simmerring 65 × 120 × 10 mm | 65 mm | 120 mm | 10 mm |

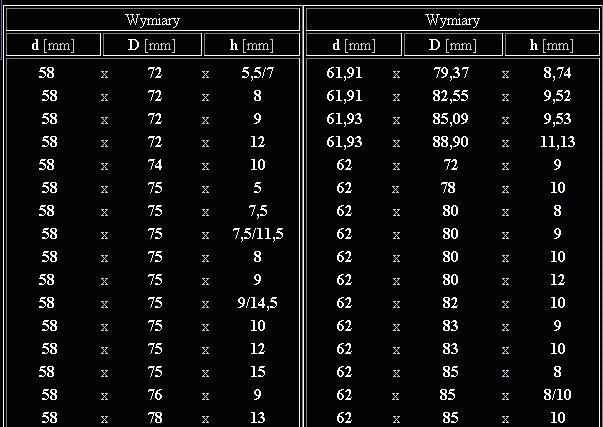

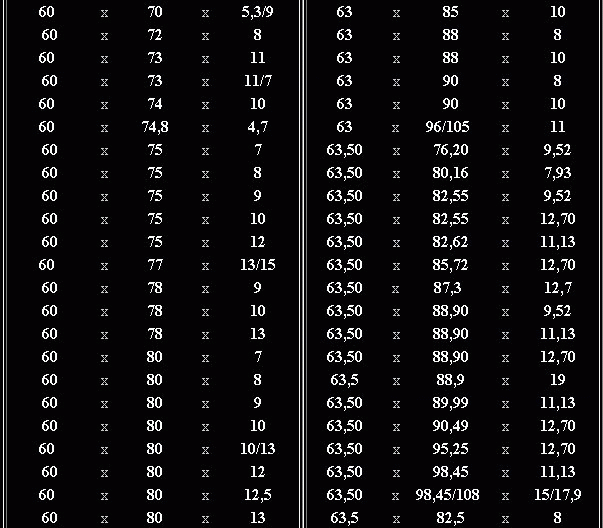

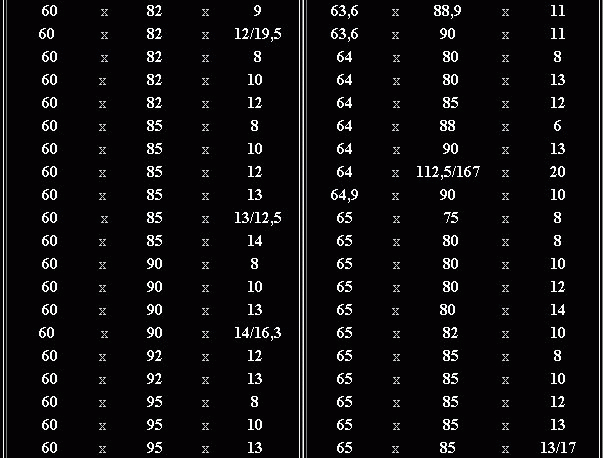

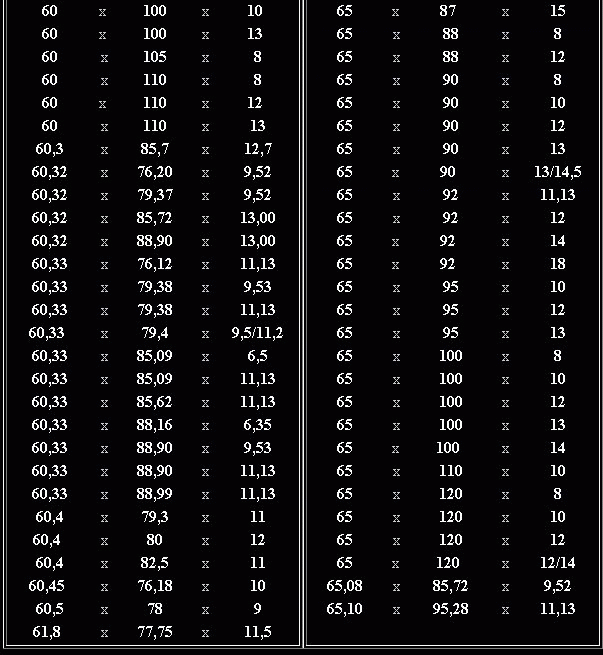

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
