Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 51-57 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
90 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 51 × 63 × 8,5 mm | 51 mm | 63 mm | 8,5 mm |
| Simmerring 51 × 63 × 85/12 mm | 51 mm | 63 mm | 85/12 mm |
| Simmerring 51 × 65 × 7 mm | 51 mm | 65 mm | 7 mm |
| Simmerring 51 × 73 × 8 mm | 51 mm | 73 mm | 8 mm |
| Simmerring 51 × 80 × 9,53 mm | 51 mm | 80 mm | 9,53 mm |
| Simmerring 51 × 81 × 9,53 mm | 51 mm | 81 mm | 9,53 mm |
| Simmerring 51 × 83 × 6 mm | 51 mm | 83 mm | 6 mm |
| Simmerring 51 × 92 × 11,13 mm | 51 mm | 92 mm | 11,13 mm |
| Simmerring 51 × 96 × 11,13 mm | 51 mm | 96 mm | 11,13 mm |
| Simmerring 51,9 × 72 × 8/10 mm | 51,9 mm | 72 mm | 8/10 mm |
| Simmerring 52 × 63 × 8 mm | 52 mm | 63 mm | 8 mm |
| Simmerring 52 × 65 × 8 mm | 52 mm | 65 mm | 8 mm |
| Simmerring 52 × 65 × 9 mm | 52 mm | 65 mm | 9 mm |
| Simmerring 52 × 66 × 9 mm | 52 mm | 66 mm | 9 mm |
| Simmerring 52 × 66 × 75/21 mm | 52 mm | 66 mm | 75/21 mm |
| Simmerring 52 × 68 × 3 mm | 52 mm | 68 mm | 3 mm |
| Simmerring 52 × 68 × 5 mm | 52 mm | 68 mm | 5 mm |
| Simmerring 52 × 68 × 8 mm | 52 mm | 68 mm | 8 mm |
| Simmerring 52 × 68 × 9 mm | 52 mm | 68 mm | 9 mm |
| Simmerring 52 × 68 × 10 mm | 52 mm | 68 mm | 10 mm |
| Simmerring 52 × 68 × 13,56 mm | 52 mm | 68 mm | 13,56 mm |
| Simmerring 52 × 68 × 75/24 mm | 52 mm | 68 mm | 75/24 mm |
| Simmerring 52 × 69 × 10 mm | 52 mm | 69 mm | 10 mm |
| Simmerring 52 × 70 × 9 mm | 52 mm | 70 mm | 9 mm |
| Simmerring 52 × 72 × 8 mm | 52 mm | 72 mm | 8 mm |
| Simmerring 52 × 72 × 9 mm | 52 mm | 72 mm | 9 mm |
| Simmerring 52 × 92,8 × 10 mm | 52 mm | 92,8 mm | 10 mm |
| Simmerring 53,7 × 72 × 8,4 mm | 53,7 mm | 72 mm | 8,4 mm |
| Simmerring 53,7 × 110 × 9,8 mm | 53,7 mm | 110 mm | 9,8 mm |
| Simmerring 53,97 × 720 × 9,52 mm | 53,97 mm | 720 mm | 9,52 mm |
| Simmerring 53,97 × 937 × 9,52 mm | 53,97 mm | 937 mm | 9,52 mm |
| Simmerring 53,98 × 73,03 × 11,13 mm | 53,98 mm | 73,03 mm | 11,13 mm |
| Simmerring 53,98 × 77,75 × 12,7 mm | 53,98 mm | 77,75 mm | 12,7 mm |
| Simmerring 53,98 × 720 × 9,53 mm | 53,98 mm | 720 mm | 9,53 mm |
| Simmerring 54 × 68 × 7,5 mm | 54 mm | 68 mm | 7,5 mm |
| Simmerring 54 × 68 × 8 mm | 54 mm | 68 mm | 8 mm |
| Simmerring 54 × 72 × 8 mm | 54 mm | 72 mm | 8 mm |
| Simmerring 54 × 72 × 10 mm | 54 mm | 72 mm | 10 mm |
| Simmerring 54 × 74 × 8 mm | 54 mm | 74 mm | 8 mm |
| Simmerring 54 × 81 × 10 mm | 54 mm | 81 mm | 10 mm |
| Simmerring 54 × 86 × 13/15 mm | 54 mm | 86 mm | 13/15 mm |
| Simmerring 54 × 92 × 5 mm | 54 mm | 92 mm | 5 mm |
| Simmerring 54 × 725 × 9 mm | 54 mm | 725 mm | 9 mm |
| Simmerring 54,51 × 76,09 × 9,5/15 mm | 54,51 mm | 76,09 mm | 9,5/15 mm |
| Simmerring 55 × 63 × 5 mm | 55 mm | 63 mm | 5 mm |
| Simmerring 55 × 68 × 8 mm | 55 mm | 68 mm | 8 mm |
| Simmerring 55 × 68 × 8,5 mm | 55 mm | 68 mm | 8,5 mm |
| Simmerring 55 × 70 × 7 mm | 55 mm | 70 mm | 7 mm |
| Simmerring 55 × 70 × 8 mm | 55 mm | 70 mm | 8 mm |
| Simmerring 55 × 70 × 9 mm | 55 mm | 70 mm | 9 mm |
| Simmerring 55 × 72 × 8 mm | 55 mm | 72 mm | 8 mm |
| Simmerring 55 × 72 × 9 mm | 55 mm | 72 mm | 9 mm |
| Simmerring 55 × 73 × 8 mm | 55 mm | 73 mm | 8 mm |
| Simmerring 55 × 73,43 × 8 mm | 55 mm | 73,43 mm | 8 mm |
| Simmerring 55 × 74 × 6,82 mm | 55 mm | 74 mm | 6,82 mm |
| Simmerring 55 × 75 × 9 mm | 55 mm | 75 mm | 9 mm |
| Simmerring 55 × 80 × 1 mm | 55 mm | 80 mm | 1 mm |
| Simmerring 55 × 80 × 8 mm | 55 mm | 80 mm | 8 mm |
| Simmerring 55 × 82 × 2 mm | 55 mm | 82 mm | 2 mm |
| Simmerring 55 × 82 × 16,5 mm | 55 mm | 82 mm | 16,5 mm |
| Simmerring 55,2 × 62 × 10 mm | 55,2 mm | 62 mm | 10 mm |
| Simmerring 55,2 × 68 × 7 mm | 55,2 mm | 68 mm | 7 mm |
| Simmerring 55,2 × 80 × 13 mm | 55,2 mm | 80 mm | 13 mm |
| Simmerring 55,2 × 97 × 10/8 mm | 55,2 mm | 97 mm | 10/8 mm |
| Simmerring 55,238 × 73,02 × 9,52 mm | 55,238 mm | 73,02 mm | 9,52 mm |
| Simmerring 55,238 × 720 × 9,52 mm | 55,238 mm | 720 mm | 9,52 mm |
| Simmerring 55,5 × 85 × 2 mm | 55,5 mm | 85 mm | 2 mm |
| Simmerring 55,5 × 90 × 2 mm | 55,5 mm | 90 mm | 2 mm |
| Simmerring 55,5 × 90 × 3 mm | 55,5 mm | 90 mm | 3 mm |
| Simmerring 55,5 × 96 × 8 mm | 55,5 mm | 96 mm | 8 mm |
| Simmerring 55,5 × 100 × 2 mm | 55,5 mm | 100 mm | 2 mm |
| Simmerring 55,5 × 100 × 8 mm | 55,5 mm | 100 mm | 8 mm |
| Simmerring 55,56 × 76,2 × 9,52 mm | 55,56 mm | 76,2 mm | 9,52 mm |
| Simmerring 55,58 × 76,2 × 9,53 mm | 55,58 mm | 76,2 mm | 9,53 mm |
| Simmerring 55,58 × 85,09 × 11,13 mm | 55,58 mm | 85,09 mm | 11,13 mm |
| Simmerring 55,6 × 70 × 8/10 mm | 55,6 mm | 70 mm | 8/10 mm |
| Simmerring 55,6 × 72 × 8 mm | 55,6 mm | 72 mm | 8 mm |
| Simmerring 55,6 × 72 × 9 mm | 55,6 mm | 72 mm | 9 mm |
| Simmerring 55,6 × 72 × 10/14 mm | 55,6 mm | 72 mm | 10/14 mm |
| Simmerring 55,6 × 73,15 × 10 mm | 55,6 mm | 73,15 mm | 10 mm |
| Simmerring 55,6 × 74,2 × 6,5/10 mm | 55,6 mm | 74,2 mm | 6,5/10 mm |
| Simmerring 55,6 × 75 × 8 mm | 55,6 mm | 75 mm | 8 mm |
| Simmerring 55,6 × 80 × 2 mm | 55,6 mm | 80 mm | 2 mm |
| Simmerring 55,6 × 85 × 8 mm | 55,6 mm | 85 mm | 8 mm |
| Simmerring 55,6 × 86 × 10 mm | 55,6 mm | 86 mm | 10 mm |
| Simmerring 55,6 × 100 × 10 mm | 55,6 mm | 100 mm | 10 mm |
| Simmerring 55,7 × 81 × 8/115 mm | 55,7 mm | 81 mm | 8/115 mm |
| Simmerring 55,715 × 80,96 × 12,7 mm | 55,715 mm | 80,96 mm | 12,7 mm |
| Simmerring 55,715 × 88,9 × 11,13 mm | 55,715 mm | 88,9 mm | 11,13 mm |
| Simmerring 55,75 × 120 × 10 mm | 55,75 mm | 120 mm | 10 mm |

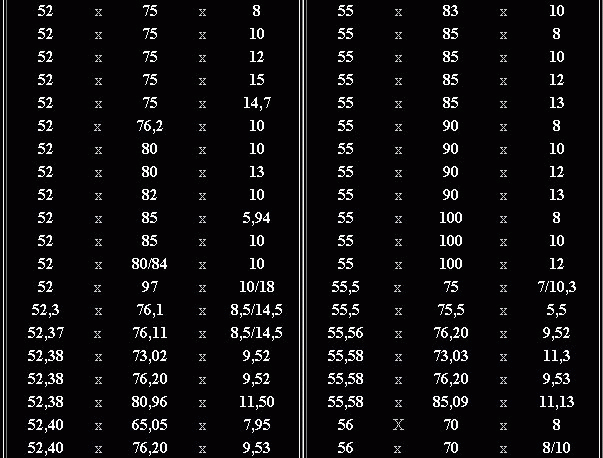

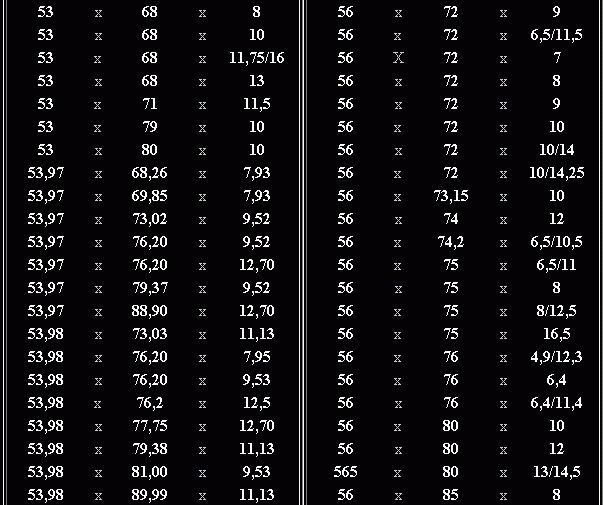

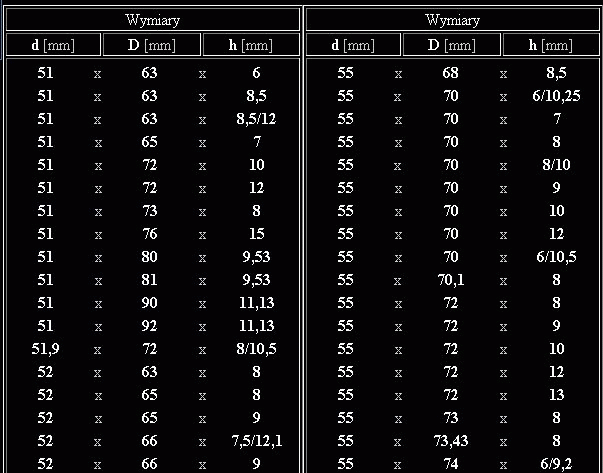

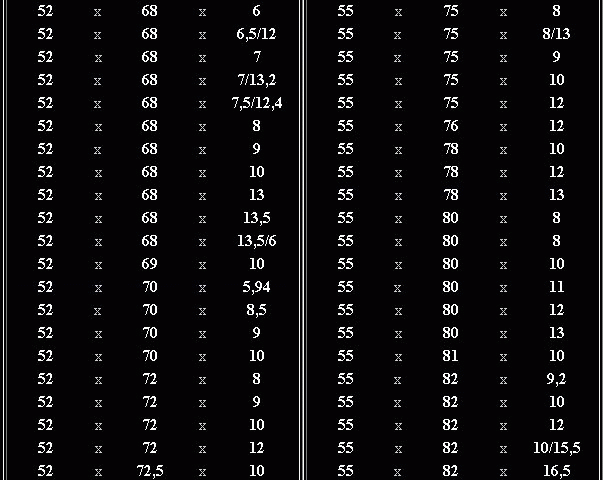

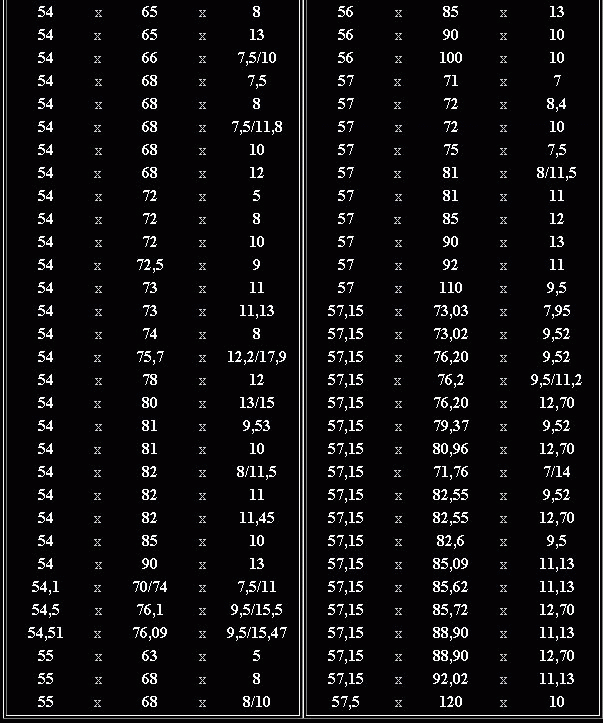

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
