Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 47-50 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
101 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 47 × 58 × 7 mm | 47 mm | 58 mm | 7 mm |
| Simmerring 47 × 60 × 8 mm | 47 mm | 60 mm | 8 mm |
| Simmerring 47 × 62 × 7 mm | 47 mm | 62 mm | 7 mm |
| Simmerring 47 × 62 × 8 mm | 47 mm | 62 mm | 8 mm |
| Simmerring 47 × 62 × 10 mm | 47 mm | 62 mm | 10 mm |
| Simmerring 47 × 64 × 6/14 mm | 47 mm | 64 mm | 6/14 mm |
| Simmerring 47 × 64 × 7 mm | 47 mm | 64 mm | 7 mm |
| Simmerring 47 × 65 × 7 mm | 47 mm | 65 mm | 7 mm |
| Simmerring 47 × 65 × 8 mm | 47 mm | 65 mm | 8 mm |
| Simmerring 47 × 65 × 10 mm | 47 mm | 65 mm | 10 mm |
| Simmerring 47 × 66 × 6 mm | 47 mm | 66 mm | 6 mm |
| Simmerring 47 × 72 × 8 mm | 47 mm | 72 mm | 8 mm |
| Simmerring 47 × 72,2 × 6,8 mm | 47 mm | 72,2 mm | 6,8 mm |
| Simmerring 47 × 85 × 16,5 mm | 47 mm | 85 mm | 16,5 mm |
| Simmerring 47,5 × 62 × 7 mm | 47,5 mm | 62 mm | 7 mm |
| Simmerring 47,5 × 70,65 × 9 mm | 47,5 mm | 70,65 mm | 9 mm |
| Simmerring 47,5 × 96 × 4,77 mm | 47,5 mm | 96 mm | 4,77 mm |
| Simmerring 47,6 × 68 × 9,5 mm | 47,6 mm | 68 mm | 9,5 mm |
| Simmerring 47,62 × 720 × 9,52 mm | 47,62 mm | 720 mm | 9,52 mm |
| Simmerring 47,63 × 760 × 15 mm | 47,63 mm | 760 mm | 15 mm |
| Simmerring 48 × 60 × 8 mm | 48 mm | 60 mm | 8 mm |
| Simmerring 48 × 60 × 10 mm | 48 mm | 60 mm | 10 mm |
| Simmerring 48 × 62 × 2 mm | 48 mm | 62 mm | 2 mm |
| Simmerring 48 × 62 × 7 mm | 48 mm | 62 mm | 7 mm |
| Simmerring 48 × 62 × 8 mm | 48 mm | 62 mm | 8 mm |
| Simmerring 48 × 62 × 9 mm | 48 mm | 62 mm | 9 mm |
| Simmerring 48 × 62 × 9/24 mm | 48 mm | 62 mm | 9/24 mm |
| Simmerring 48 × 62 × 10 mm | 48 mm | 62 mm | 10 mm |
| Simmerring 48 × 62,3 × 8/13 mm | 48 mm | 62,3 mm | 8/13 mm |
| Simmerring 48 × 64 × 2 mm | 48 mm | 64 mm | 2 mm |
| Simmerring 48 × 65 × 4 mm | 48 mm | 65 mm | 4 mm |
| Simmerring 48 × 65 × 8 mm | 48 mm | 65 mm | 8 mm |
| Simmerring 48 × 65 × 9 mm | 48 mm | 65 mm | 9 mm |
| Simmerring 48 × 65 × 10 mm | 48 mm | 65 mm | 10 mm |
| Simmerring 48 × 68 × 2 mm | 48 mm | 68 mm | 2 mm |
| Simmerring 48 × 68 × 14 mm | 48 mm | 68 mm | 14 mm |
| Simmerring 48 × 69 × 10 mm | 48 mm | 69 mm | 10 mm |
| Simmerring 48 × 70 × 8 mm | 48 mm | 70 mm | 8 mm |
| Simmerring 48 × 70 × 9 mm | 48 mm | 70 mm | 9 mm |
| Simmerring 48 × 72 × 7 mm | 48 mm | 72 mm | 7 mm |
| Simmerring 48 × 72 × 8 mm | 48 mm | 72 mm | 8 mm |
| Simmerring 48 × 72,5 × 10 mm | 48 mm | 72,5 mm | 10 mm |
| Simmerring 48 × 75 × 8 mm | 48 mm | 75 mm | 8 mm |
| Simmerring 48 × 80 × 13 mm | 48 mm | 80 mm | 13 mm |
| Simmerring 48 × 82 × 8 mm | 48 mm | 82 mm | 8 mm |
| Simmerring 48 × 85 × 1 mm | 48 mm | 85 mm | 1 mm |
| Simmerring 48 × 85 × 10 mm | 48 mm | 85 mm | 10 mm |
| Simmerring 48 × 90 × 8 mm | 48 mm | 90 mm | 8 mm |
| Simmerring 48 × 96 × 10 mm | 48 mm | 96 mm | 10 mm |
| Simmerring 48 × 635 × 8 mm | 48 mm | 635 mm | 8 mm |
| Simmerring 48,08 × 66,62 × 9,8 mm | 48,08 mm | 66,62 mm | 9,8 mm |
| Simmerring 48,7 × 58 × 55/91 mm | 48,7 mm | 58 mm | 55/91 mm |
| Simmerring 49 × 62,5 × 8 mm | 49 mm | 62,5 mm | 8 mm |
| Simmerring 49 × 68 × 3 mm | 49 mm | 68 mm | 3 mm |
| Simmerring 49 × 72,2 × 6/8 mm | 49 mm | 72,2 mm | 6/8 mm |
| Simmerring 49,21 × 62,5 × 8/13 mm | 49,21 mm | 62,5 mm | 8/13 mm |
| Simmerring 49,21 × 69,85 × 9,52 mm | 49,21 mm | 69,85 mm | 9,52 mm |
| Simmerring 49,21 × 69,9 × 9,5 mm | 49,21 mm | 69,9 mm | 9,5 mm |
| Simmerring 49,21 × 73,02 × 7,93 mm | 49,21 mm | 73,02 mm | 7,93 mm |
| Simmerring 49,21 × 663,5 × 9,52 mm | 49,21 mm | 663,5 mm | 9,52 mm |
| Simmerring 49,23 × 68,22 × 9,53 mm | 49,23 mm | 68,22 mm | 9,53 mm |
| Simmerring 49,23 × 73,03 × 7,95 mm | 49,23 mm | 73,03 mm | 7,95 mm |
| Simmerring 49,5 × 64 × 6/125 mm | 49,5 mm | 64 mm | 6/125 mm |
| Simmerring 50 × 58 × 4 mm | 50 mm | 58 mm | 4 mm |
| Simmerring 50 × 60 × 8 mm | 50 mm | 60 mm | 8 mm |
| Simmerring 50 × 62 × 5 mm | 50 mm | 62 mm | 5 mm |
| Simmerring 50 × 62 × 7 mm | 50 mm | 62 mm | 7 mm |
| Simmerring 50 × 62 × 8,7 mm | 50 mm | 62 mm | 8,7 mm |
| Simmerring 50 × 62 × 9 mm | 50 mm | 62 mm | 9 mm |
| Simmerring 50 × 62 × 10 mm | 50 mm | 62 mm | 10 mm |
| Simmerring 50 × 62 × 12 mm | 50 mm | 62 mm | 12 mm |
| Simmerring 50 × 65 × 9 mm | 50 mm | 65 mm | 9 mm |
| Simmerring 50 × 65 × 9,754 mm | 50 mm | 65 mm | 9,754 mm |
| Simmerring 50 × 65 × 10 mm | 50 mm | 65 mm | 10 mm |
| Simmerring 50 × 65 × 12 mm | 50 mm | 65 mm | 12 mm |
| Simmerring 50 × 65 × 14 mm | 50 mm | 65 mm | 14 mm |
| Simmerring 50 × 65,2 × 10 mm | 50 mm | 65,2 mm | 10 mm |
| Simmerring 50 × 66 × 8 mm | 50 mm | 66 mm | 8 mm |
| Simmerring 50 × 67 × 11 mm | 50 mm | 67 mm | 11 mm |
| Simmerring 50 × 68 × 2 mm | 50 mm | 68 mm | 2 mm |
| Simmerring 50 × 68 × 8 mm | 50 mm | 68 mm | 8 mm |
| Simmerring 50 × 68 × 8,5 mm | 50 mm | 68 mm | 8,5 mm |
| Simmerring 50 × 68 × 9 mm | 50 mm | 68 mm | 9 mm |
| Simmerring 50 × 68 × 10 mm | 50 mm | 68 mm | 10 mm |
| Simmerring 50 × 70 × 8 mm | 50 mm | 70 mm | 8 mm |
| Simmerring 50 × 70 × 9 mm | 50 mm | 70 mm | 9 mm |
| Simmerring 50 × 70 × 10 mm | 50 mm | 70 mm | 10 mm |
| Simmerring 50 × 72 × 6 mm | 50 mm | 72 mm | 6 mm |
| Simmerring 50 × 72 × 7 mm | 50 mm | 72 mm | 7 mm |
| Simmerring 50 × 72 × 8 mm | 50 mm | 72 mm | 8 mm |
| Simmerring 50 × 80 × 2 mm | 50 mm | 80 mm | 2 mm |
| Simmerring 50 × 80 × 8 mm | 50 mm | 80 mm | 8 mm |
| Simmerring 50 × 80 × 18 mm | 50 mm | 80 mm | 18 mm |
| Simmerring 50 × 85 × 3 mm | 50 mm | 85 mm | 3 mm |
| Simmerring 50 × 85 × 8 mm | 50 mm | 85 mm | 8 mm |
| Simmerring 50 × 85 × 10 mm | 50 mm | 85 mm | 10 mm |
| Simmerring 50 × 86 × 10 mm | 50 mm | 86 mm | 10 mm |
| Simmerring 50 × 90 × 8 mm | 50 mm | 90 mm | 8 mm |
| Simmerring 50 × 96 × 3 mm | 50 mm | 96 mm | 3 mm |
| Simmerring 50 × 100 × 10 mm | 50 mm | 100 mm | 10 mm |
| Simmerring 50 × 675 × 5 mm | 50 mm | 675 mm | 5 mm |

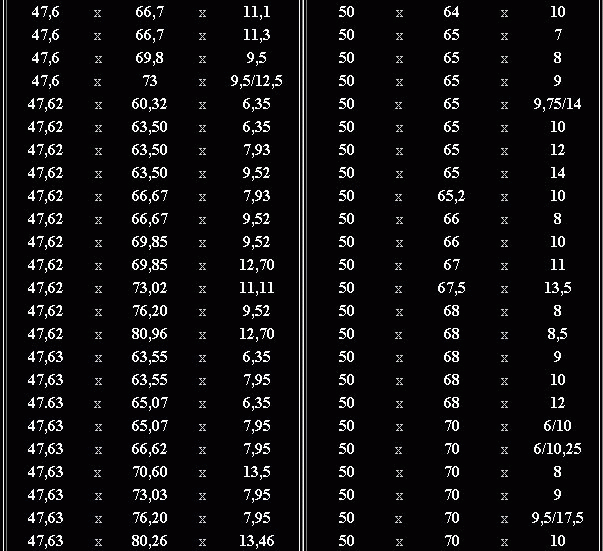

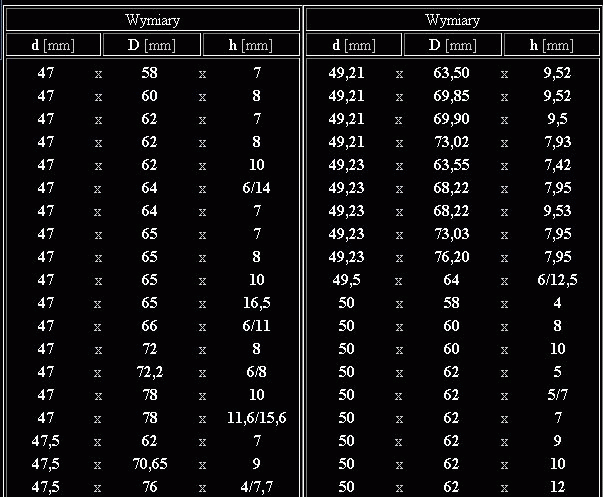

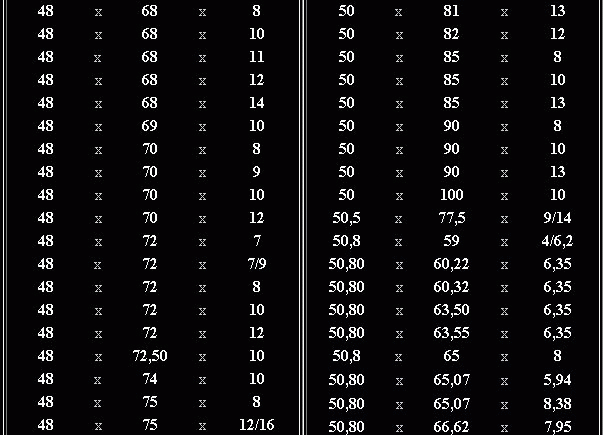

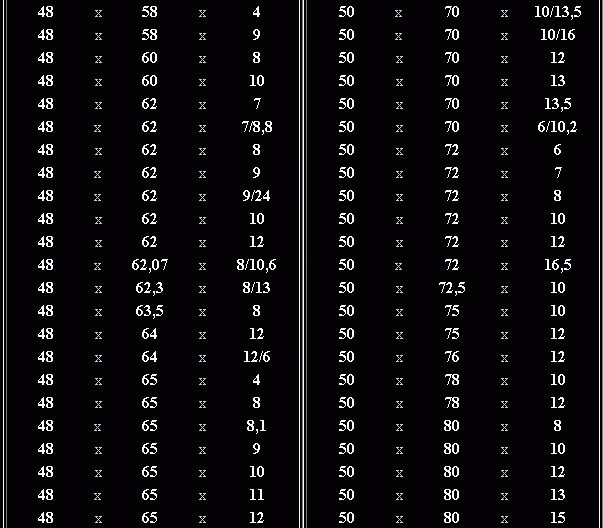

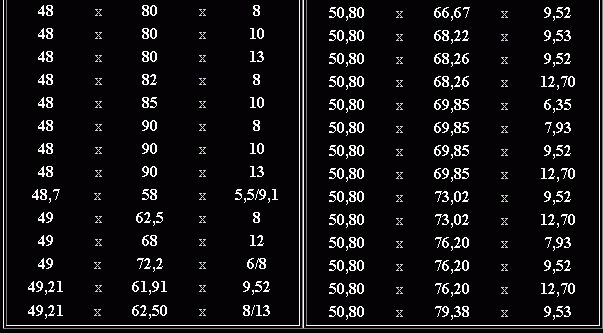

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
