Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 43-46 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
139 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 44 × 53 × 4 mm | 44 mm | 53 mm | 4 mm |
| Simmerring 44 × 62 × 8 mm | 44 mm | 62 mm | 8 mm |
| Simmerring 44 × 62 × 8/14 mm | 44 mm | 62 mm | 8/14 mm |
| Simmerring 44 × 62 × 10 mm | 44 mm | 62 mm | 10 mm |
| Simmerring 44 × 65 × 8 mm | 44 mm | 65 mm | 8 mm |
| Simmerring 44 × 65 × 10 mm | 44 mm | 65 mm | 10 mm |
| Simmerring 44 × 65 × 11 mm | 44 mm | 65 mm | 11 mm |
| Simmerring 44 × 66 × 10 mm | 44 mm | 66 mm | 10 mm |
| Simmerring 44 × 68 × 8 mm | 44 mm | 68 mm | 8 mm |
| Simmerring 44 × 72 × 8 mm | 44 mm | 72 mm | 8 mm |
| Simmerring 44 × 72 × 10 mm | 44 mm | 72 mm | 10 mm |
| Simmerring 44 × 80 × 6 mm | 44 mm | 80 mm | 6 mm |
| Simmerring 44 × 85 × 10 mm | 44 mm | 85 mm | 10 mm |
| Simmerring 44,3 × 55 × 8 mm | 44,3 mm | 55 mm | 8 mm |
| Simmerring 44,3 × 57 × 8 mm | 44,3 mm | 57 mm | 8 mm |
| Simmerring 44,3 × 58 × 7 mm | 44,3 mm | 58 mm | 7 mm |
| Simmerring 44,3 × 60 × 8 mm | 44,3 mm | 60 mm | 8 mm |
| Simmerring 44,3 × 60 × 10 mm | 44,3 mm | 60 mm | 10 mm |
| Simmerring 44,3 × 62 × 2 mm | 44,3 mm | 62 mm | 2 mm |
| Simmerring 44,3 × 62 × 8 mm | 44,3 mm | 62 mm | 8 mm |
| Simmerring 44,3 × 62 × 10 mm | 44,3 mm | 62 mm | 10 mm |
| Simmerring 44,3 × 65 × 8 mm | 44,3 mm | 65 mm | 8 mm |
| Simmerring 44,3 × 66 × 10 mm | 44,3 mm | 66 mm | 10 mm |
| Simmerring 44,3 × 68 × 10 mm | 44,3 mm | 68 mm | 10 mm |
| Simmerring 44,3 × 69 × 8 mm | 44,3 mm | 69 mm | 8 mm |
| Simmerring 44,3 × 73 × 8 mm | 44,3 mm | 73 mm | 8 mm |
| Simmerring 44,3 × 84 × 6,5 mm | 44,3 mm | 84 mm | 6,5 mm |
| Simmerring 44,3 × 84 × 7,5 mm | 44,3 mm | 84 mm | 7,5 mm |
| Simmerring 44,3 × 84 × 10 mm | 44,3 mm | 84 mm | 10 mm |
| Simmerring 44,3 × 89 × 10 mm | 44,3 mm | 89 mm | 10 mm |
| Simmerring 44,4 × 55 × 7 mm | 44,4 mm | 55 mm | 7 mm |
| Simmerring 44,445 × 53,97 × 4,76 mm | 44,445 mm | 53,97 mm | 4,76 mm |
| Simmerring 44,445 × 58,73 × 6,35 mm | 44,445 mm | 58,73 mm | 6,35 mm |
| Simmerring 44,445 × 60,32 × 7,93 mm | 44,445 mm | 60,32 mm | 7,93 mm |
| Simmerring 44,445 × 60,32 × 9,52 mm | 44,445 mm | 60,32 mm | 9,52 mm |
| Simmerring 44,445 × 60,32 × 12,7 mm | 44,445 mm | 60,32 mm | 12,7 mm |
| Simmerring 44,445 × 60,33 × 9,5 mm | 44,445 mm | 60,33 mm | 9,5 mm |
| Simmerring 44,445 × 63,5 × 7,93 mm | 44,445 mm | 63,5 mm | 7,93 mm |
| Simmerring 44,445 × 63,5 × 9,52 mm | 44,445 mm | 63,5 mm | 9,52 mm |
| Simmerring 44,445 × 66,3 × 6,35 mm | 44,445 mm | 66,3 mm | 6,35 mm |
| Simmerring 44,45 × 62 × 10 mm | 44,45 mm | 62 mm | 10 mm |
| Simmerring 44,45 × 65,15 × 7,95 mm | 44,45 mm | 65,15 mm | 7,95 mm |
| Simmerring 44,45 × 66,62 × 7,95 mm | 44,45 mm | 66,62 mm | 7,95 mm |
| Simmerring 44,45 × 66,67 × 9,52 mm | 44,45 mm | 66,67 mm | 9,52 mm |
| Simmerring 44,45 × 69,85 × 7,93 mm | 44,45 mm | 69,85 mm | 7,93 mm |
| Simmerring 44,45 × 69,85 × 9,52 mm | 44,45 mm | 69,85 mm | 9,52 mm |
| Simmerring 44,45 × 69,85 × 12,7 mm | 44,45 mm | 69,85 mm | 12,7 mm |
| Simmerring 44,45 × 73,02 × 9,52 mm | 44,45 mm | 73,02 mm | 9,52 mm |
| Simmerring 44,45 × 73,02 × 12,7 mm | 44,45 mm | 73,02 mm | 12,7 mm |
| Simmerring 44,45 × 73,03 × 6,35 mm | 44,45 mm | 73,03 mm | 6,35 mm |
| Simmerring 44,45 × 76,2 × 12,7 mm | 44,45 mm | 76,2 mm | 12,7 mm |
| Simmerring 44,47 × 54 × 6,85 mm | 44,47 mm | 54 mm | 6,85 mm |
| Simmerring 44,5 × 52 × 4 mm | 44,5 mm | 52 mm | 4 mm |
| Simmerring 44,5 × 55 × 4 mm | 44,5 mm | 55 mm | 4 mm |
| Simmerring 44,5 × 55 × 7 mm | 44,5 mm | 55 mm | 7 mm |
| Simmerring 44,5 × 55 × 8 mm | 44,5 mm | 55 mm | 8 mm |
| Simmerring 44,5 × 55 × 10 mm | 44,5 mm | 55 mm | 10 mm |
| Simmerring 44,5 × 57 × 7 mm | 44,5 mm | 57 mm | 7 mm |
| Simmerring 44,5 × 58 × 7 mm | 44,5 mm | 58 mm | 7 mm |
| Simmerring 44,5 × 59 × 8 mm | 44,5 mm | 59 mm | 8 mm |
| Simmerring 44,5 × 60 × 5 mm | 44,5 mm | 60 mm | 5 mm |
| Simmerring 44,5 × 60 × 6,5 mm | 44,5 mm | 60 mm | 6,5 mm |
| Simmerring 44,5 × 60 × 7 mm | 44,5 mm | 60 mm | 7 mm |
| Simmerring 44,5 × 60 × 8 mm | 44,5 mm | 60 mm | 8 mm |
| Simmerring 44,5 × 60 × 9 mm | 44,5 mm | 60 mm | 9 mm |
| Simmerring 44,5 × 60 × 10 mm | 44,5 mm | 60 mm | 10 mm |
| Simmerring 44,5 × 60,5 × 10 mm | 44,5 mm | 60,5 mm | 10 mm |
| Simmerring 44,5 × 62 × 1 mm | 44,5 mm | 62 mm | 1 mm |
| Simmerring 44,5 × 62 × 6 mm | 44,5 mm | 62 mm | 6 mm |
| Simmerring 44,5 × 62 × 7 mm | 44,5 mm | 62 mm | 7 mm |
| Simmerring 44,5 × 62 × 7,8 mm | 44,5 mm | 62 mm | 7,8 mm |
| Simmerring 44,5 × 62 × 8 mm | 44,5 mm | 62 mm | 8 mm |
| Simmerring 44,5 × 62 × 9 mm | 44,5 mm | 62 mm | 9 mm |
| Simmerring 44,5 × 62 × 10 mm | 44,5 mm | 62 mm | 10 mm |
| Simmerring 44,5 × 62 × 12 mm | 44,5 mm | 62 mm | 12 mm |
| Simmerring 44,5 × 62 × 13 mm | 44,5 mm | 62 mm | 13 mm |
| Simmerring 44,5 × 62 × 16 mm | 44,5 mm | 62 mm | 16 mm |
| Simmerring 44,5 × 63 × 7 mm | 44,5 mm | 63 mm | 7 mm |
| Simmerring 44,5 × 64 × 2 mm | 44,5 mm | 64 mm | 2 mm |
| Simmerring 44,5 × 64 × 6,5 mm | 44,5 mm | 64 mm | 6,5 mm |
| Simmerring 44,5 × 64 × 8 mm | 44,5 mm | 64 mm | 8 mm |
| Simmerring 44,5 × 64 × 10 mm | 44,5 mm | 64 mm | 10 mm |
| Simmerring 44,5 × 65 × 6 mm | 44,5 mm | 65 mm | 6 mm |
| Simmerring 44,5 × 65 × 7 mm | 44,5 mm | 65 mm | 7 mm |
| Simmerring 44,5 × 65 × 8 mm | 44,5 mm | 65 mm | 8 mm |
| Simmerring 44,5 × 65 × 9 mm | 44,5 mm | 65 mm | 9 mm |
| Simmerring 44,5 × 65 × 10/12 mm | 44,5 mm | 65 mm | 10/12 mm |
| Simmerring 44,5 × 65 × 10 mm | 44,5 mm | 65 mm | 10 mm |
| Simmerring 44,5 × 65 × 10/14 mm | 44,5 mm | 65 mm | 10/14 mm |
| Simmerring 44,5 × 66 × 6 mm | 44,5 mm | 66 mm | 6 mm |
| Simmerring 44,5 × 67 × 8 mm | 44,5 mm | 67 mm | 8 mm |
| Simmerring 44,5 × 67 × 10 mm | 44,5 mm | 67 mm | 10 mm |
| Simmerring 44,5 × 68 × 2 mm | 44,5 mm | 68 mm | 2 mm |
| Simmerring 44,5 × 68 × 8 mm | 44,5 mm | 68 mm | 8 mm |
| Simmerring 44,5 × 68 × 9 mm | 44,5 mm | 68 mm | 9 mm |
| Simmerring 44,5 × 68 × 10 mm | 44,5 mm | 68 mm | 10 mm |
| Simmerring 44,5 × 70 × 8 mm | 44,5 mm | 70 mm | 8 mm |
| Simmerring 44,5 × 70 × 10 mm | 44,5 mm | 70 mm | 10 mm |
| Simmerring 44,5 × 72 × 9 mm | 44,5 mm | 72 mm | 9 mm |
| Simmerring 44,5 × 72 × 10 mm | 44,5 mm | 72 mm | 10 mm |
| Simmerring 44,5 × 72,2 × 7,585 mm | 44,5 mm | 72,2 mm | 7,585 mm |
| Simmerring 44,5 × 73 × 7 mm | 44,5 mm | 73 mm | 7 mm |
| Simmerring 44,5 × 85 × 2 mm | 44,5 mm | 85 mm | 2 mm |
| Simmerring 44,5 × 86 × 10 mm | 44,5 mm | 86 mm | 10 mm |
| Simmerring 44,5 × 87 × 10 mm | 44,5 mm | 87 mm | 10 mm |
| Simmerring 44,5 × 92 × 8 mm | 44,5 mm | 92 mm | 8 mm |
| Simmerring 44,5 × 595 × 12/13 mm | 44,5 mm | 595 mm | 12/13 mm |
| Simmerring 44,6 × 65 × 9 mm | 44,6 mm | 65 mm | 9 mm |
| Simmerring 44,6 × 65 × 10 mm | 44,6 mm | 65 mm | 10 mm |
| Simmerring 44,6 × 65 × 15,7 mm | 44,6 mm | 65 mm | 15,7 mm |
| Simmerring 44,6 × 68 × 8 mm | 44,6 mm | 68 mm | 8 mm |
| Simmerring 44,6 × 72 × 8 mm | 44,6 mm | 72 mm | 8 mm |
| Simmerring 44,6 × 85 × 10 mm | 44,6 mm | 85 mm | 10 mm |
| Simmerring 44,603 × 63,5 × 9,52 mm | 44,603 mm | 63,5 mm | 9,52 mm |
| Simmerring 44,636 × 65,28 × 6,35 mm | 44,636 mm | 65,28 mm | 6,35 mm |
| Simmerring 44,694 × 62 × 8 mm | 44,694 mm | 62 mm | 8 mm |
| Simmerring 44,8 × 59 × 10 mm | 44,8 mm | 59 mm | 10 mm |
| Simmerring 45 × 80 × 8 mm | 45 mm | 80 mm | 8 mm |
| Simmerring 45 × 82 × 7 mm | 45 mm | 82 mm | 7 mm |
| Simmerring 45 × 85 × 8 mm | 45 mm | 85 mm | 8 mm |
| Simmerring 45 × 85 × 10 mm | 45 mm | 85 mm | 10 mm |
| Simmerring 45 × 85,3 × 8/15 mm | 45 mm | 85,3 mm | 8/15 mm |
| Simmerring 45 × 86 × 3 mm | 45 mm | 86 mm | 3 mm |
| Simmerring 45 × 86 × 10 mm | 45 mm | 86 mm | 10 mm |
| Simmerring 45 × 86 × 16 mm | 45 mm | 86 mm | 16 mm |
| Simmerring 45 × 90 × 10 mm | 45 mm | 90 mm | 10 mm |
| Simmerring 45 × 98,3 × 9,8/12 mm | 45 mm | 98,3 mm | 9,8/12 mm |
| Simmerring 45 × 100 × 10 mm | 45 mm | 100 mm | 10 mm |
| Simmerring 46 × 58 × 7 mm | 46 mm | 58 mm | 7 mm |
| Simmerring 46 × 58 × 8 mm | 46 mm | 58 mm | 8 mm |
| Simmerring 46 × 58 × 10,5/11 mm | 46 mm | 58 mm | 10,5/11 mm |
| Simmerring 46 × 59 × 7 mm | 46 mm | 59 mm | 7 mm |
| Simmerring 46 × 60 × 7 mm | 46 mm | 60 mm | 7 mm |
| Simmerring 46 × 60 × 8 mm | 46 mm | 60 mm | 8 mm |
| Simmerring 46 × 60 × 10/16 mm | 46 mm | 60 mm | 10/16 mm |
| Simmerring 46 × 62 × 7 mm | 46 mm | 62 mm | 7 mm |
| Simmerring 46 × 62 × 8 mm | 46 mm | 62 mm | 8 mm |
| Simmerring 46 × 62 × 9 mm | 46 mm | 62 mm | 9 mm |
| Simmerring 46 × 64 × 8 mm | 46 mm | 64 mm | 8 mm |

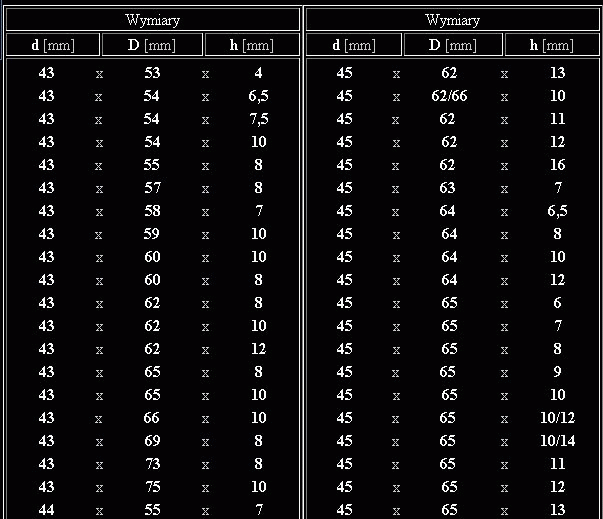

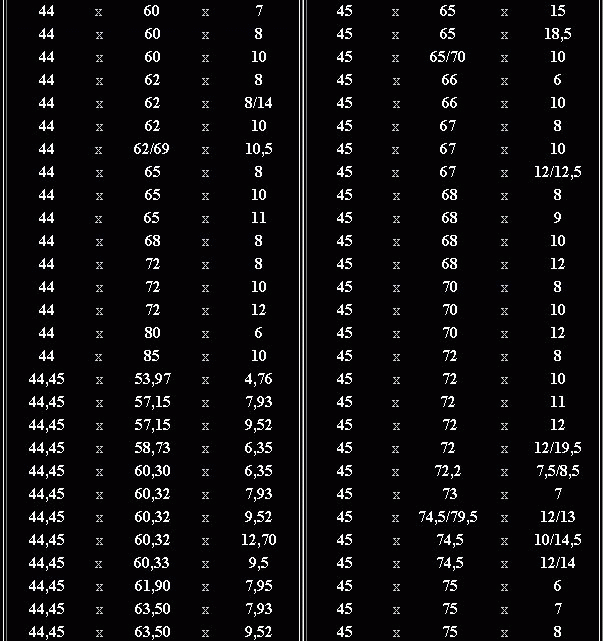

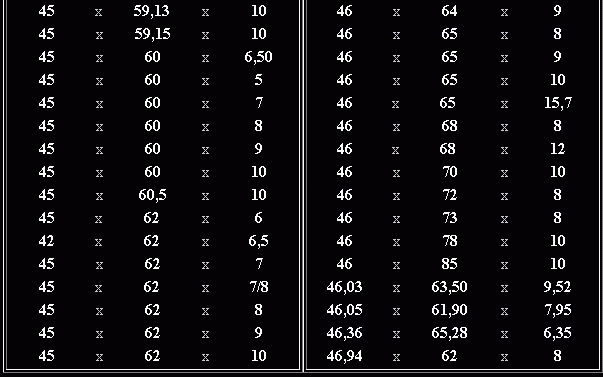

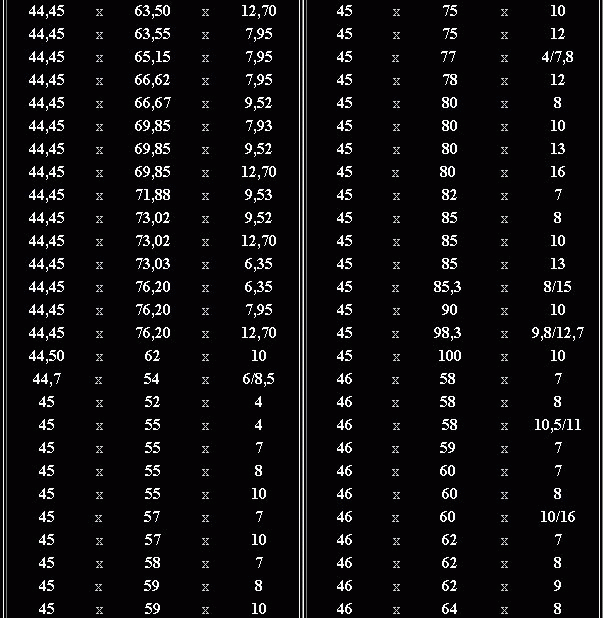

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
