Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 40-42 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
133 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 40 × 46 × 12,818 mm | 40 mm | 46 mm | 12,818 mm |
| Simmerring 40 × 47 × 4 mm | 40 mm | 47 mm | 4 mm |
| Simmerring 40 × 49,6 × 7 mm | 40 mm | 49,6 mm | 7 mm |
| Simmerring 40 × 50 × 4 mm | 40 mm | 50 mm | 4 mm |
| Simmerring 40 × 50 × 5 mm | 40 mm | 50 mm | 5 mm |
| Simmerring 40 × 50 × 6 mm | 40 mm | 50 mm | 6 mm |
| Simmerring 40 × 50 × 7 mm | 40 mm | 50 mm | 7 mm |
| Simmerring 40 × 52 × 5 mm | 40 mm | 52 mm | 5 mm |
| Simmerring 40 × 55 × 7 mm | 40 mm | 55 mm | 7 mm |
| Simmerring 40 × 55 × 8 mm | 40 mm | 55 mm | 8 mm |
| Simmerring 40 × 55 × 9 mm | 40 mm | 55 mm | 9 mm |
| Simmerring 40 × 55 × 9,5 mm | 40 mm | 55 mm | 9,5 mm |
| Simmerring 40 × 55 × 58/78 mm | 40 mm | 55 mm | 58/78 mm |
| Simmerring 40 × 56 × 7 mm | 40 mm | 56 mm | 7 mm |
| Simmerring 40 × 56 × 8/18 mm | 40 mm | 56 mm | 8/18 mm |
| Simmerring 40 × 56 × 8 mm | 40 mm | 56 mm | 8 mm |
| Simmerring 40 × 56 × 8/136 mm | 40 mm | 56 mm | 8/136 mm |
| Simmerring 40 × 56 × 10 mm | 40 mm | 56 mm | 10 mm |
| Simmerring 40 × 57 × 8 mm | 40 mm | 57 mm | 8 mm |
| Simmerring 40 × 58 × 7 mm | 40 mm | 58 mm | 7 mm |
| Simmerring 40 × 58 × 8 mm | 40 mm | 58 mm | 8 mm |
| Simmerring 40 × 58 × 9 mm | 40 mm | 58 mm | 9 mm |
| Simmerring 40 × 58 × 10 mm | 40 mm | 58 mm | 10 mm |
| Simmerring 40 × 58 × 11,3 mm | 40 mm | 58 mm | 11,3 mm |
| Simmerring 40 × 58 × 12 mm | 40 mm | 58 mm | 12 mm |
| Simmerring 40 × 60 × 2 mm | 40 mm | 60 mm | 2 mm |
| Simmerring 40 × 60 × 10/115 mm | 40 mm | 60 mm | 10/115 mm |
| Simmerring 40 × 60 × 18,5 mm | 40 mm | 60 mm | 18,5 mm |
| Simmerring 40 × 62 × 2 mm | 40 mm | 62 mm | 2 mm |
| Simmerring 40 × 62 × 7 mm | 40 mm | 62 mm | 7 mm |
| Simmerring 40 × 62 × 8 mm | 40 mm | 62 mm | 8 mm |
| Simmerring 40 × 62 × 9 mm | 40 mm | 62 mm | 9 mm |
| Simmerring 40 × 62 × 10/12 mm | 40 mm | 62 mm | 10/12 mm |
| Simmerring 40 × 62 × 10 mm | 40 mm | 62 mm | 10 mm |
| Simmerring 40 × 63 × 7 mm | 40 mm | 63 mm | 7 mm |
| Simmerring 40 × 63 × 8/115 mm | 40 mm | 63 mm | 8/115 mm |
| Simmerring 40 × 64 × 2 mm | 40 mm | 64 mm | 2 mm |
| Simmerring 40 × 64 × 10/16 mm | 40 mm | 64 mm | 10/16 mm |
| Simmerring 40 × 64 × 16 mm | 40 mm | 64 mm | 16 mm |
| Simmerring 40 × 65 × 7 mm | 40 mm | 65 mm | 7 mm |
| Simmerring 40 × 65 × 8 mm | 40 mm | 65 mm | 8 mm |
| Simmerring 40 × 65 × 9 mm | 40 mm | 65 mm | 9 mm |
| Simmerring 40 × 65 × 10 mm | 40 mm | 65 mm | 10 mm |
| Simmerring 40 × 65 × 14 mm | 40 mm | 65 mm | 14 mm |
| Simmerring 40 × 65 × 18,5 mm | 40 mm | 65 mm | 18,5 mm |
| Simmerring 40 × 66 × 10 mm | 40 mm | 66 mm | 10 mm |
| Simmerring 40 × 67 × 8 mm | 40 mm | 67 mm | 8 mm |
| Simmerring 40 × 68 × 2 mm | 40 mm | 68 mm | 2 mm |
| Simmerring 40 × 68 × 6 mm | 40 mm | 68 mm | 6 mm |
| Simmerring 40 × 68 × 7 mm | 40 mm | 68 mm | 7 mm |
| Simmerring 40 × 68 × 8 mm | 40 mm | 68 mm | 8 mm |
| Simmerring 40 × 68 × 14 mm | 40 mm | 68 mm | 14 mm |
| Simmerring 40 × 70 × 7 mm | 40 mm | 70 mm | 7 mm |
| Simmerring 40 × 70 × 8/15 mm | 40 mm | 70 mm | 8/15 mm |
| Simmerring 40 × 70 × 8 mm | 40 mm | 70 mm | 8 mm |
| Simmerring 40 × 71 × 2 mm | 40 mm | 71 mm | 2 mm |
| Simmerring 40 × 72 × 2 mm | 40 mm | 72 mm | 2 mm |
| Simmerring 40 × 72 × 7 mm | 40 mm | 72 mm | 7 mm |
| Simmerring 40 × 72 × 8 mm | 40 mm | 72 mm | 8 mm |
| Simmerring 40 × 74 × 8 mm | 40 mm | 74 mm | 8 mm |
| Simmerring 40 × 75 × 8 mm | 40 mm | 75 mm | 8 mm |
| Simmerring 40 × 80 × 2 mm | 40 mm | 80 mm | 2 mm |
| Simmerring 40 × 80 × 7 mm | 40 mm | 80 mm | 7 mm |
| Simmerring 40 × 80 × 8 mm | 40 mm | 80 mm | 8 mm |
| Simmerring 40 × 80 × 10 mm | 40 mm | 80 mm | 10 mm |
| Simmerring 40 × 85 × 2 mm | 40 mm | 85 mm | 2 mm |
| Simmerring 40 × 85 × 6,5 mm | 40 mm | 85 mm | 6,5 mm |
| Simmerring 40 × 85 × 10 mm | 40 mm | 85 mm | 10 mm |
| Simmerring 40 × 86 × 3 mm | 40 mm | 86 mm | 3 mm |
| Simmerring 40 × 90 × 2 mm | 40 mm | 90 mm | 2 mm |
| Simmerring 40 × 90 × 8 mm | 40 mm | 90 mm | 8 mm |
| Simmerring 40 × 90 × 10 mm | 40 mm | 90 mm | 10 mm |
| Simmerring 40 × 715 × 10 mm | 40 mm | 715 mm | 10 mm |
| Simmerring 40 × 837 × 10 mm | 40 mm | 837 mm | 10 mm |
| Simmerring 41 × 52 × 10 mm | 41 mm | 52 mm | 10 mm |
| Simmerring 41 × 53 × 7 mm | 41 mm | 53 mm | 7 mm |
| Simmerring 41 × 55 × 2 mm | 41 mm | 55 mm | 2 mm |
| Simmerring 41 × 55 × 6 mm | 41 mm | 55 mm | 6 mm |
| Simmerring 41 × 56 × 7 mm | 41 mm | 56 mm | 7 mm |
| Simmerring 41 × 84 × 2 mm | 41 mm | 84 mm | 2 mm |
| Simmerring 41 × 555 × 9 mm | 41 mm | 555 mm | 9 mm |
| Simmerring 41,27 × 60,32 × 9,52 mm | 41,27 mm | 60,32 mm | 9,52 mm |
| Simmerring 41,27 × 63,5 × 7,93 mm | 41,27 mm | 63,5 mm | 7,93 mm |
| Simmerring 41,27 × 63,5 × 12,7 mm | 41,27 mm | 63,5 mm | 12,7 mm |
| Simmerring 41,27 × 65,08 × 9,82 mm | 41,27 mm | 65,08 mm | 9,82 mm |
| Simmerring 41,27 × 66,67 × 9,52 mm | 41,27 mm | 66,67 mm | 9,52 mm |
| Simmerring 41,28 × 56,8 × 6,35 mm | 41,28 mm | 56,8 mm | 6,35 mm |
| Simmerring 42 × 49,2 × 3,54 mm | 42 mm | 49,2 mm | 3,54 mm |
| Simmerring 42 × 50 × 7 mm | 42 mm | 50 mm | 7 mm |
| Simmerring 42 × 52 × 4 mm | 42 mm | 52 mm | 4 mm |
| Simmerring 42 × 52 × 5 mm | 42 mm | 52 mm | 5 mm |
| Simmerring 42 × 52 × 7 mm | 42 mm | 52 mm | 7 mm |
| Simmerring 42 × 53 × 7 mm | 42 mm | 53 mm | 7 mm |
| Simmerring 42 × 55 × 8 mm | 42 mm | 55 mm | 8 mm |
| Simmerring 42 × 55 × 9 mm | 42 mm | 55 mm | 9 mm |
| Simmerring 42 × 56 × 6,5 mm | 42 mm | 56 mm | 6,5 mm |
| Simmerring 42 × 56 × 7 mm | 42 mm | 56 mm | 7 mm |
| Simmerring 42 × 56 × 8,5 mm | 42 mm | 56 mm | 8,5 mm |
| Simmerring 42 × 56 × 10 mm | 42 mm | 56 mm | 10 mm |
| Simmerring 42 × 56,2 × 6/95 mm | 42 mm | 56,2 mm | 6/95 mm |
| Simmerring 42 × 58 × 1 mm | 42 mm | 58 mm | 1 mm |
| Simmerring 42 × 58 × 2 mm | 42 mm | 58 mm | 2 mm |
| Simmerring 42 × 58 × 7 mm | 42 mm | 58 mm | 7 mm |
| Simmerring 42 × 58 × 8 mm | 42 mm | 58 mm | 8 mm |
| Simmerring 42 × 58 × 9 mm | 42 mm | 58 mm | 9 mm |
| Simmerring 42 × 58 × 10 mm | 42 mm | 58 mm | 10 mm |
| Simmerring 42 × 60 × 7 mm | 42 mm | 60 mm | 7 mm |
| Simmerring 42 × 60 × 8 mm | 42 mm | 60 mm | 8 mm |
| Simmerring 42 × 60 × 10 mm | 42 mm | 60 mm | 10 mm |
| Simmerring 42 × 62 × 2 mm | 42 mm | 62 mm | 2 mm |
| Simmerring 42 × 62 × 7 mm | 42 mm | 62 mm | 7 mm |
| Simmerring 42 × 62 × 8 mm | 42 mm | 62 mm | 8 mm |
| Simmerring 42 × 62 × 9 mm | 42 mm | 62 mm | 9 mm |
| Simmerring 42 × 62 × 10 mm | 42 mm | 62 mm | 10 mm |
| Simmerring 42 × 62 × 14 mm | 42 mm | 62 mm | 14 mm |
| Simmerring 42 × 62 × 17 mm | 42 mm | 62 mm | 17 mm |
| Simmerring 42 × 63 × 4,2 mm | 42 mm | 63 mm | 4,2 mm |
| Simmerring 42 × 64 × 7 mm | 42 mm | 64 mm | 7 mm |
| Simmerring 42 × 65 × 9 mm | 42 mm | 65 mm | 9 mm |
| Simmerring 42 × 65 × 10 mm | 42 mm | 65 mm | 10 mm |
| Simmerring 42 × 66 × 6 mm | 42 mm | 66 mm | 6 mm |
| Simmerring 42 × 66 × 8 mm | 42 mm | 66 mm | 8 mm |
| Simmerring 42 × 68 × 8 mm | 42 mm | 68 mm | 8 mm |
| Simmerring 42 × 68 × 10 mm | 42 mm | 68 mm | 10 mm |
| Simmerring 42 × 72 × 2 mm | 42 mm | 72 mm | 2 mm |
| Simmerring 42 × 72 × 8 mm | 42 mm | 72 mm | 8 mm |
| Simmerring 42 × 72 × 10 mm | 42 mm | 72 mm | 10 mm |
| Simmerring 42 × 75 × 9 mm | 42 mm | 75 mm | 9 mm |
| Simmerring 42 × 80 × 10 mm | 42 mm | 80 mm | 10 mm |
| Simmerring 42 × 85 × 10 mm | 42 mm | 85 mm | 10 mm |
| Simmerring 42 × 87 × 7 mm | 42 mm | 87 mm | 7 mm |
| Simmerring 42 × 90 × 11,927 mm | 42 mm | 90 mm | 11,927 mm |
| Simmerring 42 × 90 × 95/13 mm | 42 mm | 90 mm | 95/13 mm |

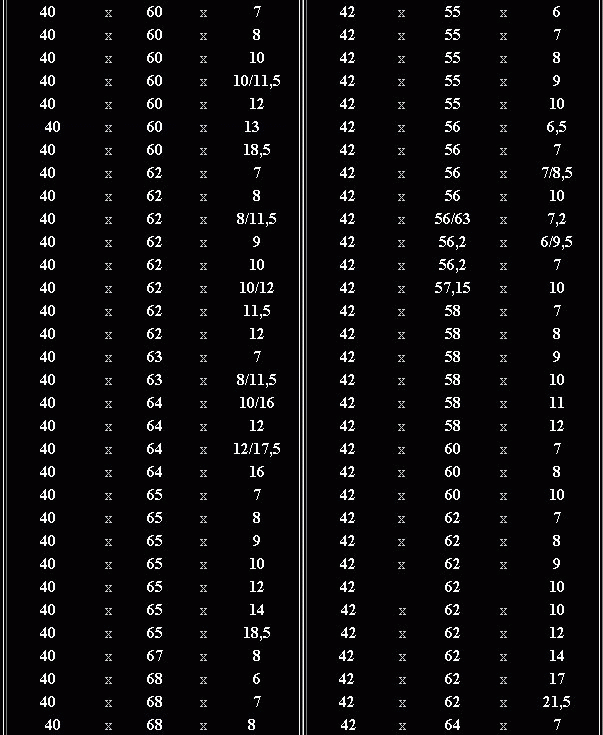

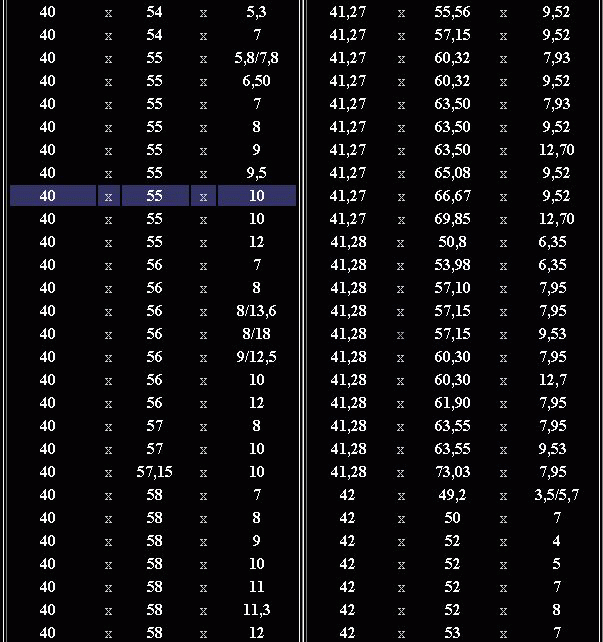

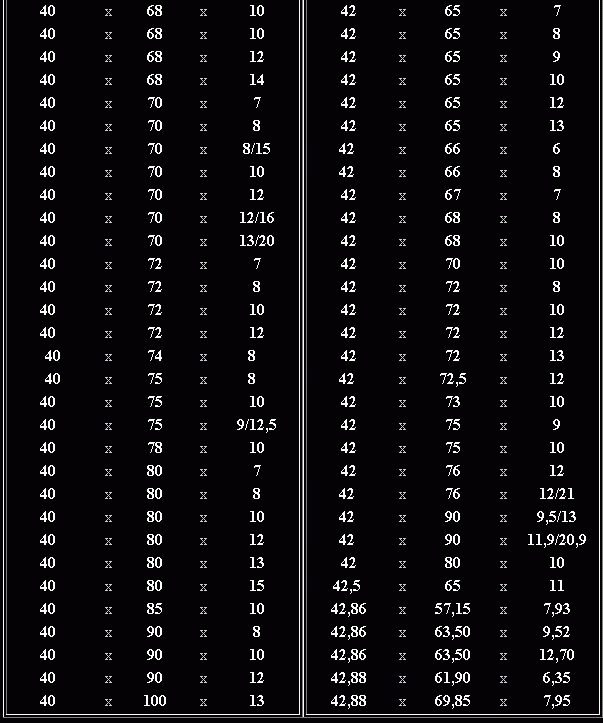

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
