Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 27-29 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
70 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 27 × 33,7 × 3,515 mm | 27 mm | 33,7 mm | 3,515 mm |
| Simmerring 27 × 33,7 × 4 mm | 27 mm | 33,7 mm | 4 mm |
| Simmerring 27 × 35 × 4 mm | 27 mm | 35 mm | 4 mm |
| Simmerring 27 × 35 × 7,5 mm | 27 mm | 35 mm | 7,5 mm |
| Simmerring 27 × 38 × 7 mm | 27 mm | 38 mm | 7 mm |
| Simmerring 27 × 40 × 6 mm | 27 mm | 40 mm | 6 mm |
| Simmerring 27 × 40 × 7 mm | 27 mm | 40 mm | 7 mm |
| Simmerring 27 × 40 × 8 mm | 27 mm | 40 mm | 8 mm |
| Simmerring 27 × 40 × 10 mm | 27 mm | 40 mm | 10 mm |
| Simmerring 27 × 40,06 × 6,35 mm | 27 mm | 40,06 mm | 6,35 mm |
| Simmerring 27 × 41 × 7 mm | 27 mm | 41 mm | 7 mm |
| Simmerring 27 × 41 × 8,5 mm | 27 mm | 41 mm | 8,5 mm |
| Simmerring 27 × 41 × 10 mm | 27 mm | 41 mm | 10 mm |
| Simmerring 27 × 42 × 10 mm | 27 mm | 42 mm | 10 mm |
| Simmerring 27 × 42,82 × 6,35 mm | 27 mm | 42,82 mm | 6,35 mm |
| Simmerring 27 × 43 × 8 mm | 27 mm | 43 mm | 8 mm |
| Simmerring 27 × 43 × 9 mm | 27 mm | 43 mm | 9 mm |
| Simmerring 27 × 45 × 8 mm | 27 mm | 45 mm | 8 mm |
| Simmerring 27 × 47 × 6 mm | 27 mm | 47 mm | 6 mm |
| Simmerring 27 × 47 × 7 mm | 27 mm | 47 mm | 7 mm |
| Simmerring 27 × 47 × 8 mm | 27 mm | 47 mm | 8 mm |
| Simmerring 27 × 47 × 10 mm | 27 mm | 47 mm | 10 mm |
| Simmerring 27 × 47 × 11 mm | 27 mm | 47 mm | 11 mm |
| Simmerring 27 × 50,37 × 6,35 mm | 27 mm | 50,37 mm | 6,35 mm |
| Simmerring 27 × 52 × 8 mm | 27 mm | 52 mm | 8 mm |
| Simmerring 27 × 56 × 9,5 mm | 27 mm | 56 mm | 9,5 mm |
| Simmerring 27 × 56 × 10 mm | 27 mm | 56 mm | 10 mm |
| Simmerring 27 × 62 × 7 mm | 27 mm | 62 mm | 7 mm |
| Simmerring 27,5 × 352 × 5,5 mm | 27,5 mm | 352 mm | 5,5 mm |
| Simmerring 28 × 40 × 5 mm | 28 mm | 40 mm | 5 mm |
| Simmerring 28 × 40 × 7 mm | 28 mm | 40 mm | 7 mm |
| Simmerring 28 × 40 × 8 mm | 28 mm | 40 mm | 8 mm |
| Simmerring 28 × 40 × 10 mm | 28 mm | 40 mm | 10 mm |
| Simmerring 28 × 42 × 7 mm | 28 mm | 42 mm | 7 mm |
| Simmerring 28 × 42 × 8 mm | 28 mm | 42 mm | 8 mm |
| Simmerring 28 × 42 × 10 mm | 28 mm | 42 mm | 10 mm |
| Simmerring 28 × 45 × 7 mm | 28 mm | 45 mm | 7 mm |
| Simmerring 28 × 45 × 8 mm | 28 mm | 45 mm | 8 mm |
| Simmerring 28 × 45 × 9 mm | 28 mm | 45 mm | 9 mm |
| Simmerring 28 × 47 × 7 mm | 28 mm | 47 mm | 7 mm |
| Simmerring 28 × 47 × 8 mm | 28 mm | 47 mm | 8 mm |
| Simmerring 28 × 47 × 9 mm | 28 mm | 47 mm | 9 mm |
| Simmerring 28 × 47 × 10 mm | 28 mm | 47 mm | 10 mm |
| Simmerring 28 × 48 × 8 mm | 28 mm | 48 mm | 8 mm |
| Simmerring 28 × 48,6 × 8 mm | 28 mm | 48,6 mm | 8 mm |
| Simmerring 28 × 50 × 2 mm | 28 mm | 50 mm | 2 mm |
| Simmerring 28 × 50 × 7 mm | 28 mm | 50 mm | 7 mm |
| Simmerring 28 × 50 × 8 mm | 28 mm | 50 mm | 8 mm |
| Simmerring 28 × 52 × 7 mm | 28 mm | 52 mm | 7 mm |
| Simmerring 28 × 56 × 10 mm | 28 mm | 56 mm | 10 mm |
| Simmerring 28 × 62 × 10 mm | 28 mm | 62 mm | 10 mm |
| Simmerring 28 × 72 × 10 mm | 28 mm | 72 mm | 10 mm |
| Simmerring 28 × 97 × 10 mm | 28 mm | 97 mm | 10 mm |
| Simmerring 28,5 × 381 × 6,2 mm | 28,5 mm | 381 mm | 6,2 mm |
| Simmerring 28,58 × 39,75 × 6,35 mm | 28,58 mm | 39,75 mm | 6,35 mm |
| Simmerring 28,58 × 44,45 × 6,35 mm | 28,58 mm | 44,45 mm | 6,35 mm |
| Simmerring 28,58 × 50,8 × 6,35 mm | 28,58 mm | 50,8 mm | 6,35 mm |
| Simmerring 28,58 × 62 × 6,35 mm | 28,58 mm | 62 mm | 6,35 mm |
| Simmerring 28,58 × 506,86 × 9,53 mm | 28,58 mm | 506,86 mm | 9,53 mm |
| Simmerring 28,6 × 43 × 6,5 mm | 28,6 mm | 43 mm | 6,5 mm |
| Simmerring 28,6 × 416 × 9,5 mm | 28,6 mm | 416 mm | 9,5 mm |
| Simmerring 29 × 32 × 9 mm | 29 mm | 32 mm | 9 mm |
| Simmerring 29 × 37 × 5 mm | 29 mm | 37 mm | 5 mm |
| Simmerring 29 × 45 × 8 mm | 29 mm | 45 mm | 8 mm |
| Simmerring 29 × 45 × 9 mm | 29 mm | 45 mm | 9 mm |
| Simmerring 29 × 46 × 10 mm | 29 mm | 46 mm | 10 mm |
| Simmerring 29 × 47 × 8 mm | 29 mm | 47 mm | 8 mm |
| Simmerring 29 × 47 × 10 mm | 29 mm | 47 mm | 10 mm |
| Simmerring 29 × 50 × 10 mm | 29 mm | 50 mm | 10 mm |
| Simmerring 29 × 62 × 10 mm | 29 mm | 62 mm | 10 mm |

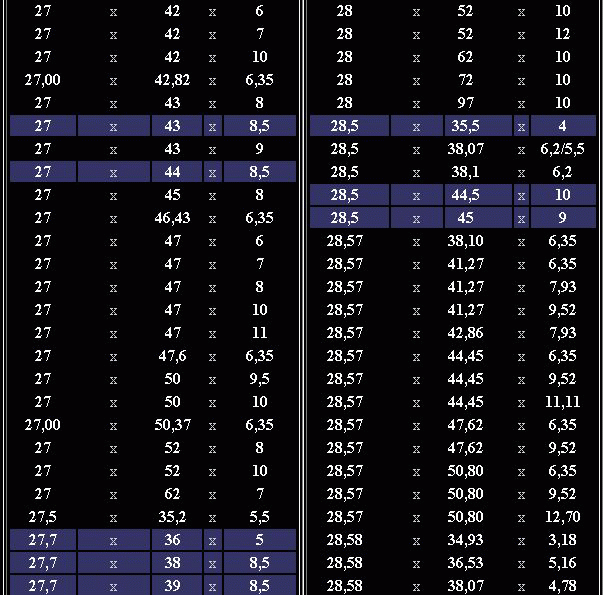

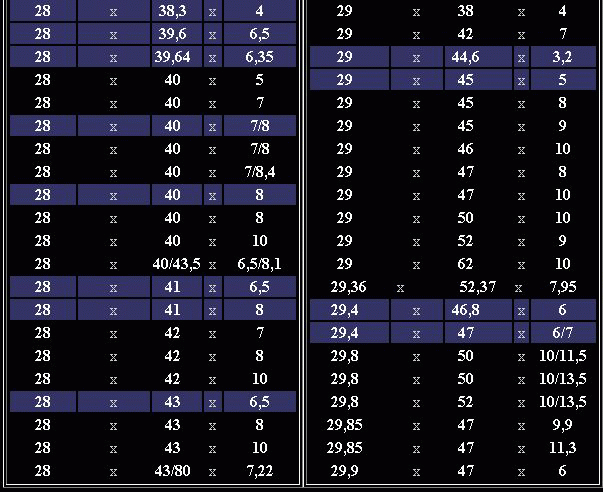

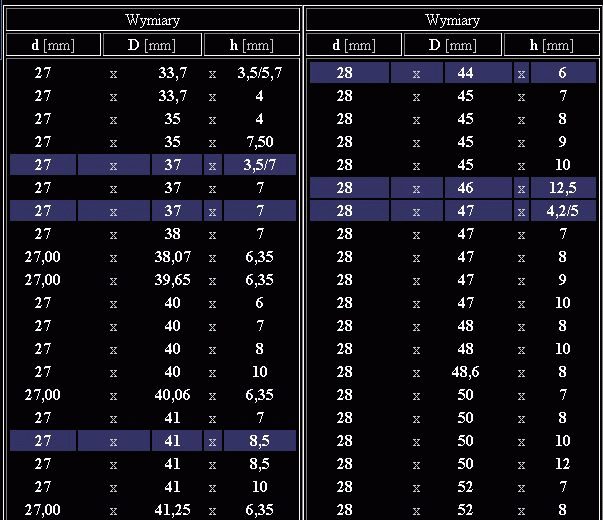

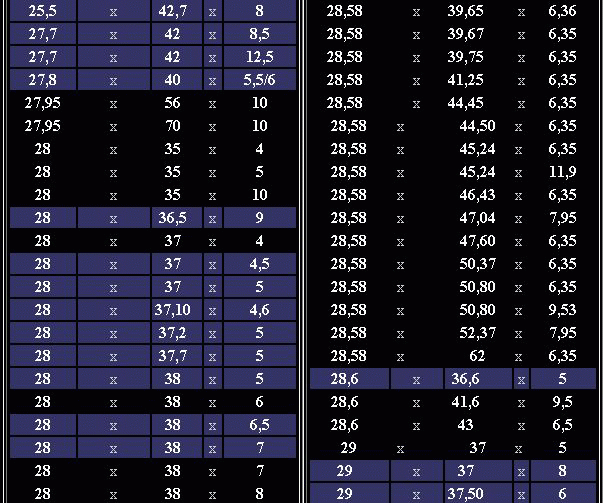

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
