Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 260-400 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
69 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 260 × 290 × 15 mm | 260 mm | 290 mm | 15 mm |
| Simmerring 260 × 290 × 16 mm | 260 mm | 290 mm | 16 mm |
| Simmerring 260 × 300 × 15 mm | 260 mm | 300 mm | 15 mm |
| Simmerring 260 × 300 × 16 mm | 260 mm | 300 mm | 16 mm |
| Simmerring 260 × 300 × 18 mm | 260 mm | 300 mm | 18 mm |
| Simmerring 260 × 300 × 20 mm | 260 mm | 300 mm | 20 mm |
| Simmerring 260 × 320 × 25 mm | 260 mm | 320 mm | 25 mm |
| Simmerring 265 × 290 × 16 mm | 265 mm | 290 mm | 16 mm |
| Simmerring 265 × 305 × 18 mm | 265 mm | 305 mm | 18 mm |
| Simmerring 265 × 310 × 16 mm | 265 mm | 310 mm | 16 mm |
| Simmerring 266 × 310 × 20 mm | 266 mm | 310 mm | 20 mm |
| Simmerring 270 × 310 × 15 mm | 270 mm | 310 mm | 15 mm |
| Simmerring 270 × 310 × 16 mm | 270 mm | 310 mm | 16 mm |
| Simmerring 270 × 310 × 18 mm | 270 mm | 310 mm | 18 mm |
| Simmerring 270 × 310 × 20 mm | 270 mm | 310 mm | 20 mm |
| Simmerring 270 × 335 × 18 mm | 270 mm | 335 mm | 18 mm |
| Simmerring 273 × 310 × 16 mm | 273 mm | 310 mm | 16 mm |
| Simmerring 280 × 310 × 13 mm | 280 mm | 310 mm | 13 mm |
| Simmerring 280 × 310 × 16 mm | 280 mm | 310 mm | 16 mm |
| Simmerring 290 × 325 × 24 mm | 290 mm | 325 mm | 24 mm |
| Simmerring 315 × 335 × 18 mm | 315 mm | 335 mm | 18 mm |
| Simmerring 315 × 350 × 18 mm | 315 mm | 350 mm | 18 mm |
| Simmerring 315 × 365 × 20 mm | 315 mm | 365 mm | 20 mm |
| Simmerring 320 × 350 × 16 mm | 320 mm | 350 mm | 16 mm |
| Simmerring 320 × 350 × 18 mm | 320 mm | 350 mm | 18 mm |
| Simmerring 320 × 355 × 16 mm | 320 mm | 355 mm | 16 mm |
| Simmerring 320 × 360 × 18 mm | 320 mm | 360 mm | 18 mm |
| Simmerring 320 × 360 × 20 mm | 320 mm | 360 mm | 20 mm |
| Simmerring 320 × 364 × 20 mm | 320 mm | 364 mm | 20 mm |
| Simmerring 320 × 380 × 25 mm | 320 mm | 380 mm | 25 mm |
| Simmerring 320 × 380 × 28 mm | 320 mm | 380 mm | 28 mm |
| Simmerring 320 × 380 × 30 mm | 320 mm | 380 mm | 30 mm |
| Simmerring 328 × 330 × 24 mm | 328 mm | 330 mm | 24 mm |
| Simmerring 329 × 330 × 17 mm | 329 mm | 330 mm | 17 mm |
| Simmerring 329,95 × 330 × 17,48 mm | 329,95 mm | 330 mm | 17,48 mm |
| Simmerring 329,98 × 338 × 18 mm | 329,98 mm | 338 mm | 18 mm |
| Simmerring 330 × 338 × 18 mm | 330 mm | 338 mm | 18 mm |
| Simmerring 330 × 340 × 18 mm | 330 mm | 340 mm | 18 mm |
| Simmerring 330 × 340 × 18,01 mm | 330 mm | 340 mm | 18,01 mm |
| Simmerring 330 × 345 × 22 mm | 330 mm | 345 mm | 22 mm |
| Simmerring 330 × 370 × 16 mm | 330 mm | 370 mm | 16 mm |
| Simmerring 330 × 370 × 18 mm | 330 mm | 370 mm | 18 mm |
| Simmerring 330 × 370 × 20 mm | 330 mm | 370 mm | 20 mm |
| Simmerring 330 × 390 × 25 mm | 330 mm | 390 mm | 25 mm |
| Simmerring 331 × 350 × 18 mm | 331 mm | 350 mm | 18 mm |
| Simmerring 331 × 380 × 20 mm | 331 mm | 380 mm | 20 mm |
| Simmerring 334 × 380 × 20 mm | 334 mm | 380 mm | 20 mm |
| Simmerring 335 × 380 × 16 mm | 335 mm | 380 mm | 16 mm |
| Simmerring 336 × 400 × 2 mm | 336 mm | 400 mm | 2 mm |
| Simmerring 336 × 400 × 20 mm | 336 mm | 400 mm | 20 mm |
| Simmerring 336,5 × 405 × 18 mm | 336,5 mm | 405 mm | 18 mm |
| Simmerring 338 × 418 × 19 mm | 338 mm | 418 mm | 19 mm |
| Simmerring 338 × 420 × 2 mm | 338 mm | 420 mm | 2 mm |
| Simmerring 338 × 420 × 18 mm | 338 mm | 420 mm | 18 mm |
| Simmerring 338 × 420 × 22,23 mm | 338 mm | 420 mm | 22,23 mm |
| Simmerring 338 × 430 × 19 mm | 338 mm | 430 mm | 19 mm |
| Simmerring 338 × 440 × 25 mm | 338 mm | 440 mm | 25 mm |
| Simmerring 338 × 440 × 28 mm | 338 mm | 440 mm | 28 mm |
| Simmerring 338,001 × 430 × 19 mm | 338,001 mm | 430 mm | 19 mm |
| Simmerring 339 × 390 × 20 mm | 339 mm | 390 mm | 20 mm |
| Simmerring 339 × 450 × 25 mm | 339 mm | 450 mm | 25 mm |
| Simmerring 340 × 440 × 2 mm | 340 mm | 440 mm | 2 mm |
| Simmerring 340 × 440 × 18 mm | 340 mm | 440 mm | 18 mm |
| Simmerring 340 × 440 × 20 mm | 340 mm | 440 mm | 20 mm |
| Simmerring 340 × 450 × 5 mm | 340 mm | 450 mm | 5 mm |
| Simmerring 340 × 450 × 25 mm | 340 mm | 450 mm | 25 mm |
| Simmerring 340 × 460 × 28 mm | 340 mm | 460 mm | 28 mm |
| Simmerring 350 × 400 × 25,4 mm | 350 mm | 400 mm | 25,4 mm |
| Simmerring 359,99 × 400 × 24,99 mm | 359,99 mm | 400 mm | 24,99 mm |

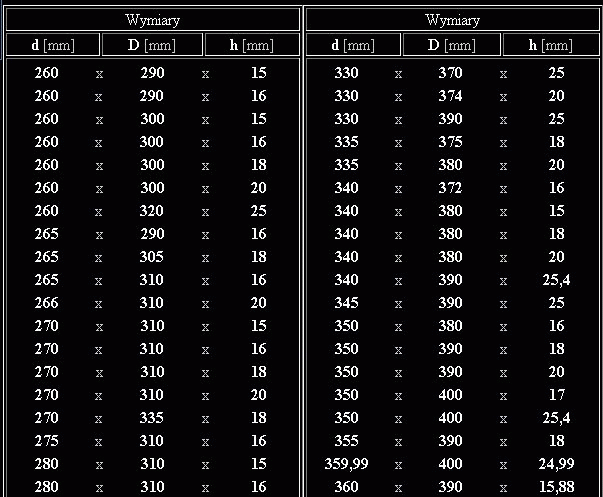

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
