Simmerring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Simmerringi 15-17 mm – tabela wymiarów
Każdy wymiar został opisany słowem Simmerring. Kolumny odpowiadają typowemu zapisowi: średnica wału × średnica zewnętrzna × szerokość.
110 pozycji| Simmerring – wymiar | d [mm] | D [mm] | B [mm] |
|---|---|---|---|
| Simmerring 15 × 21 × 3 mm | 15 mm | 21 mm | 3 mm |
| Simmerring 15 × 21 × 5,7 mm | 15 mm | 21 mm | 5,7 mm |
| Simmerring 15 × 22 × 7 mm | 15 mm | 22 mm | 7 mm |
| Simmerring 15 × 24 × 5 mm | 15 mm | 24 mm | 5 mm |
| Simmerring 15 × 25 × 6 mm | 15 mm | 25 mm | 6 mm |
| Simmerring 15 × 26 × 6 mm | 15 mm | 26 mm | 6 mm |
| Simmerring 15 × 27 × 7 mm | 15 mm | 27 mm | 7 mm |
| Simmerring 15 × 28 × 4 mm | 15 mm | 28 mm | 4 mm |
| Simmerring 15 × 28 × 8 mm | 15 mm | 28 mm | 8 mm |
| Simmerring 15 × 30 × 5 mm | 15 mm | 30 mm | 5 mm |
| Simmerring 15 × 30 × 6 mm | 15 mm | 30 mm | 6 mm |
| Simmerring 15 × 30 × 7 mm | 15 mm | 30 mm | 7 mm |
| Simmerring 15 × 30 × 8 mm | 15 mm | 30 mm | 8 mm |
| Simmerring 15 × 32 × 7 mm | 15 mm | 32 mm | 7 mm |
| Simmerring 15 × 32 × 9 mm | 15 mm | 32 mm | 9 mm |
| Simmerring 15 × 33 × 7 mm | 15 mm | 33 mm | 7 mm |
| Simmerring 15 × 35 × 5 mm | 15 mm | 35 mm | 5 mm |
| Simmerring 15 × 35 × 6 mm | 15 mm | 35 mm | 6 mm |
| Simmerring 15 × 35 × 7 mm | 15 mm | 35 mm | 7 mm |
| Simmerring 15 × 35 × 8 mm | 15 mm | 35 mm | 8 mm |
| Simmerring 15 × 35 × 10 mm | 15 mm | 35 mm | 10 mm |
| Simmerring 15 × 37 × 10 mm | 15 mm | 37 mm | 10 mm |
| Simmerring 15 × 40 × 7 mm | 15 mm | 40 mm | 7 mm |
| Simmerring 15 × 40 × 10 mm | 15 mm | 40 mm | 10 mm |
| Simmerring 15 × 42 × 7 mm | 15 mm | 42 mm | 7 mm |
| Simmerring 15 × 42 × 10 mm | 15 mm | 42 mm | 10 mm |
| Simmerring 15 × 47 × 10 mm | 15 mm | 47 mm | 10 mm |
| Simmerring 15 × 254 × 5,7 mm | 15 mm | 254 mm | 5,7 mm |
| Simmerring 15,5 × 24 × 5 mm | 15,5 mm | 24 mm | 5 mm |
| Simmerring 15,7 × 26 × 7 mm | 15,7 mm | 26 mm | 7 mm |
| Simmerring 15,86 × 28,73 × 4,78 mm | 15,86 mm | 28,73 mm | 4,78 mm |
| Simmerring 15,87 × 25,4 × 6,35 mm | 15,87 mm | 25,4 mm | 6,35 mm |
| Simmerring 15,87 × 28,57 × 6,35 mm | 15,87 mm | 28,57 mm | 6,35 mm |
| Simmerring 15,87 × 28,57 × 7,93 mm | 15,87 mm | 28,57 mm | 7,93 mm |
| Simmerring 15,87 × 28,57 × 9,82 mm | 15,87 mm | 28,57 mm | 9,82 mm |
| Simmerring 15,87 × 38,1 × 6,35 mm | 15,87 mm | 38,1 mm | 6,35 mm |
| Simmerring 15,88 × 23,7 × 4,78 mm | 15,88 mm | 23,7 mm | 4,78 mm |
| Simmerring 15,88 × 28,37 × 6,35 mm | 15,88 mm | 28,37 mm | 6,35 mm |
| Simmerring 15,88 × 28,6 × 6,35 mm | 15,88 mm | 28,6 mm | 6,35 mm |
| Simmerring 15,88 × 34,93 × 6,35 mm | 15,88 mm | 34,93 mm | 6,35 mm |
| Simmerring 15,88 × 36 × 6,35 mm | 15,88 mm | 36 mm | 6,35 mm |
| Simmerring 16 × 22 × 3 mm | 16 mm | 22 mm | 3 mm |
| Simmerring 16 × 22 × 4 mm | 16 mm | 22 mm | 4 mm |
| Simmerring 16 × 24 × 3 mm | 16 mm | 24 mm | 3 mm |
| Simmerring 16 × 24 × 4 mm | 16 mm | 24 mm | 4 mm |
| Simmerring 16 × 24 × 5 mm | 16 mm | 24 mm | 5 mm |
| Simmerring 16 × 24 × 6,5 mm | 16 mm | 24 mm | 6,5 mm |
| Simmerring 16 × 24 × 7 mm | 16 mm | 24 mm | 7 mm |
| Simmerring 16 × 25 × 3 mm | 16 mm | 25 mm | 3 mm |
| Simmerring 16 × 26 × 5 mm | 16 mm | 26 mm | 5 mm |
| Simmerring 16 × 26 × 7 mm | 16 mm | 26 mm | 7 mm |
| Simmerring 16 × 26 × 8 mm | 16 mm | 26 mm | 8 mm |
| Simmerring 16 × 27 × 6 mm | 16 mm | 27 mm | 6 mm |
| Simmerring 16 × 27 × 7 mm | 16 mm | 27 mm | 7 mm |
| Simmerring 16 × 28 × 7 mm | 16 mm | 28 mm | 7 mm |
| Simmerring 16 × 28 × 8 mm | 16 mm | 28 mm | 8 mm |
| Simmerring 16 × 30 × 4,5 mm | 16 mm | 30 mm | 4,5 mm |
| Simmerring 16 × 30 × 8 mm | 16 mm | 30 mm | 8 mm |
| Simmerring 16 × 30 × 10 mm | 16 mm | 30 mm | 10 mm |
| Simmerring 16 × 32 × 7 mm | 16 mm | 32 mm | 7 mm |
| Simmerring 16 × 32 × 8 mm | 16 mm | 32 mm | 8 mm |
| Simmerring 16 × 32 × 10 mm | 16 mm | 32 mm | 10 mm |
| Simmerring 16 × 35 × 7 mm | 16 mm | 35 mm | 7 mm |
| Simmerring 16 × 35 × 10 mm | 16 mm | 35 mm | 10 mm |
| Simmerring 16 × 36 × 6,35 mm | 16 mm | 36 mm | 6,35 mm |
| Simmerring 16 × 36 × 7 mm | 16 mm | 36 mm | 7 mm |
| Simmerring 16 × 38 × 7 mm | 16 mm | 38 mm | 7 mm |
| Simmerring 16 × 40 × 7 mm | 16 mm | 40 mm | 7 mm |
| Simmerring 16 × 47 × 7 mm | 16 mm | 47 mm | 7 mm |
| Simmerring 16,67 × 38,1 × 6,35 mm | 16,67 mm | 38,1 mm | 6,35 mm |
| Simmerring 16,99 × 27,03 × 6,35 mm | 16,99 mm | 27,03 mm | 6,35 mm |
| Simmerring 16,99 × 237 × 4,78 mm | 16,99 mm | 237 mm | 4,78 mm |
| Simmerring 17 × 23 × 3 mm | 17 mm | 23 mm | 3 mm |
| Simmerring 17 × 24 × 7 mm | 17 mm | 24 mm | 7 mm |
| Simmerring 17 × 25 × 4 mm | 17 mm | 25 mm | 4 mm |
| Simmerring 17 × 26 × 6 mm | 17 mm | 26 mm | 6 mm |
| Simmerring 17 × 26 × 7 mm | 17 mm | 26 mm | 7 mm |
| Simmerring 17 × 27 × 6 mm | 17 mm | 27 mm | 6 mm |
| Simmerring 17 × 27 × 6,35 mm | 17 mm | 27 mm | 6,35 mm |
| Simmerring 17 × 27 × 7 mm | 17 mm | 27 mm | 7 mm |
| Simmerring 17 × 27 × 10 mm | 17 mm | 27 mm | 10 mm |
| Simmerring 17 × 28 × 3 mm | 17 mm | 28 mm | 3 mm |
| Simmerring 17 × 28 × 5 mm | 17 mm | 28 mm | 5 mm |
| Simmerring 17 × 28 × 6 mm | 17 mm | 28 mm | 6 mm |
| Simmerring 17 × 28 × 7 mm | 17 mm | 28 mm | 7 mm |
| Simmerring 17 × 29 × 5 mm | 17 mm | 29 mm | 5 mm |
| Simmerring 17 × 29 × 7 mm | 17 mm | 29 mm | 7 mm |
| Simmerring 17 × 30 × 5 mm | 17 mm | 30 mm | 5 mm |
| Simmerring 17 × 30 × 6 mm | 17 mm | 30 mm | 6 mm |
| Simmerring 17 × 30 × 7 mm | 17 mm | 30 mm | 7 mm |
| Simmerring 17 × 32 × 5 mm | 17 mm | 32 mm | 5 mm |
| Simmerring 17 × 32 × 7 mm | 17 mm | 32 mm | 7 mm |
| Simmerring 17 × 32 × 10 mm | 17 mm | 32 mm | 10 mm |
| Simmerring 17 × 33 × 8 mm | 17 mm | 33 mm | 8 mm |
| Simmerring 17 × 34 × 4 mm | 17 mm | 34 mm | 4 mm |
| Simmerring 17 × 34 × 7 mm | 17 mm | 34 mm | 7 mm |
| Simmerring 17 × 35 × 5 mm | 17 mm | 35 mm | 5 mm |
| Simmerring 17 × 35 × 6 mm | 17 mm | 35 mm | 6 mm |
| Simmerring 17 × 35 × 7 mm | 17 mm | 35 mm | 7 mm |
| Simmerring 17 × 35 × 10 mm | 17 mm | 35 mm | 10 mm |
| Simmerring 17 × 37 × 7 mm | 17 mm | 37 mm | 7 mm |
| Simmerring 17 × 37 × 10 mm | 17 mm | 37 mm | 10 mm |
| Simmerring 17 × 38 × 7 mm | 17 mm | 38 mm | 7 mm |
| Simmerring 17 × 40 × 6 mm | 17 mm | 40 mm | 6 mm |
| Simmerring 17 × 40 × 7 mm | 17 mm | 40 mm | 7 mm |
| Simmerring 17 × 40 × 10 mm | 17 mm | 40 mm | 10 mm |
| Simmerring 17 × 47 × 7 mm | 17 mm | 47 mm | 7 mm |
| Simmerring 17 × 47 × 8 mm | 17 mm | 47 mm | 8 mm |
| Simmerring 17 × 47 × 10 mm | 17 mm | 47 mm | 10 mm |
| Simmerring 17 × 306 × 10 mm | 17 mm | 306 mm | 10 mm |

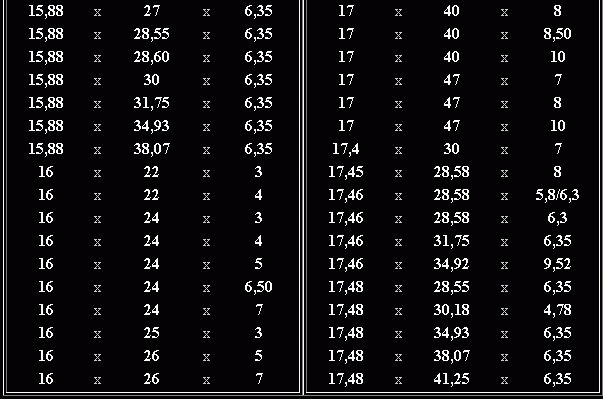

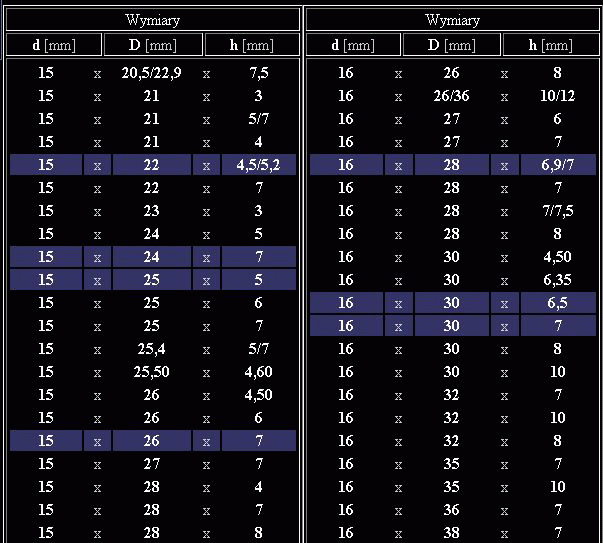

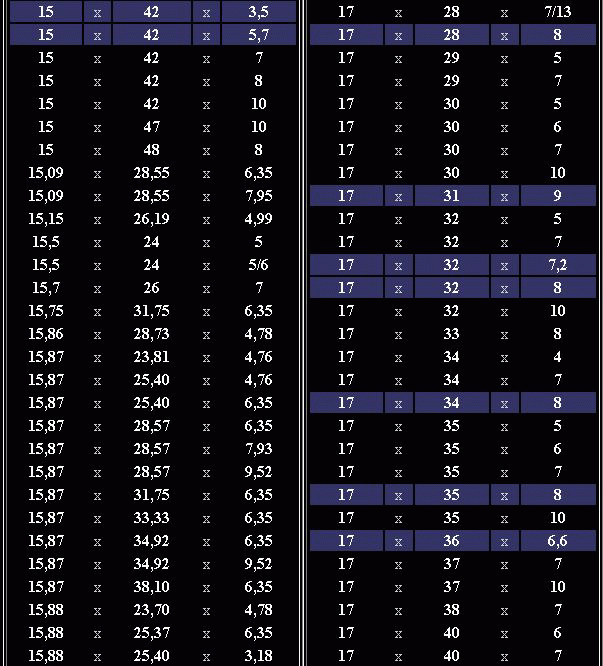

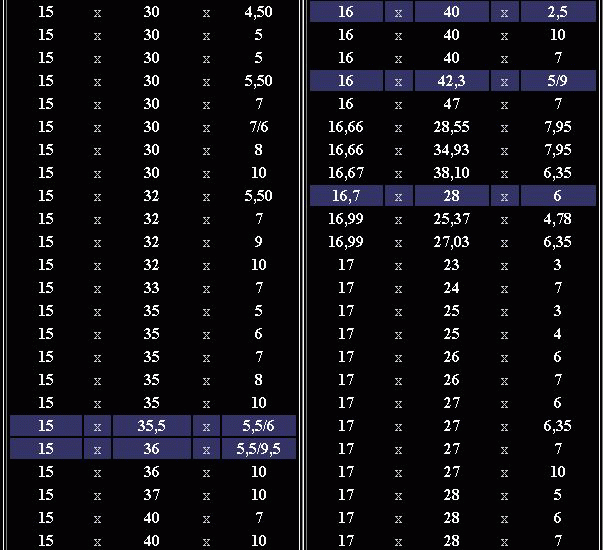

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
