Oring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Oringi 550-1245 mm – tabela wymiarów
Tabela katalogowa została odtworzona z materiału graficznego. Do każdej pozycji dodano nazwę Oring, aby wymiar był czytelny również dla wyszukiwarki.
129 pozycji| Oring – wymiar | D [mm] | d [mm] |
|---|---|---|
| Oring 550 × 3 mm | 550 mm | 3 mm |
| Oring 550 × 5 mm | 550 mm | 5 mm |
| Oring 550 × 7 mm | 550 mm | 7 mm |
| Oring 550 × 8 mm | 550 mm | 8 mm |
| Oring 550 × 9 mm | 550 mm | 9 mm |
| Oring 552 × 4 mm | 552 mm | 4 mm |
| Oring 552 × 5,33 mm | 552 mm | 5,33 mm |
| Oring 553,8 × 6,2 mm | 553,8 mm | 6,2 mm |
| Oring 554,3 × 5,7 mm | 554,3 mm | 5,7 mm |
| Oring 555,758 × 5,33 mm | 555,758 mm | 5,33 mm |
| Oring 558,25 × 3 mm | 558,25 mm | 3 mm |
| Oring 558,268 × 5,33 mm | 558,268 mm | 5,33 mm |
| Oring 558,268 × 7 mm | 558,268 mm | 7 mm |
| Oring 558,4 × 6,6 mm | 558,4 mm | 6,6 mm |
| Oring 558,4 × 8,4 mm | 558,4 mm | 8,4 mm |
| Oring 558,766 × 7 mm | 558,766 mm | 7 mm |
| Oring 559,25 × 3 mm | 559,25 mm | 3 mm |
| Oring 559,4 × 5,7 mm | 559,4 mm | 5,7 mm |
| Oring 559,627 × 7 mm | 559,627 mm | 7 mm |
| Oring 559,64 × 7 mm | 559,64 mm | 7 mm |
| Oring 560 × 7 mm | 560 mm | 7 mm |
| Oring 560 × 9 mm | 560 mm | 9 mm |
| Oring 560,808 × 5,33 mm | 560,808 mm | 5,33 mm |
| Oring 560,808 × 7 mm | 560,808 mm | 7 mm |
| Oring 560,808 × 9 mm | 560,808 mm | 9 mm |
| Oring 568,4 × 7 mm | 568,4 mm | 7 mm |
| Oring 569 × 9 mm | 569 mm | 9 mm |
| Oring 569,812 × 7 mm | 569,812 mm | 7 mm |
| Oring 569,9 × 7 mm | 569,9 mm | 7 mm |
| Oring 572 × 3 mm | 572 mm | 3 mm |
| Oring 575 × 9 mm | 575 mm | 9 mm |
| Oring 605 × 7,9 mm | 605 mm | 7,9 mm |
| Oring 632 × 3,9 mm | 632 mm | 3,9 mm |
| Oring 636 × 5,33 mm | 636 mm | 5,33 mm |
| Oring 636 × 7,9 mm | 636 mm | 7,9 mm |
| Oring 639,9 × 3 mm | 639,9 mm | 3 mm |
| Oring 655,8 × 3 mm | 655,8 mm | 3 mm |
| Oring 656,2 × 7,5 mm | 656,2 mm | 7,5 mm |
| Oring 656,6 × 9 mm | 656,6 mm | 9 mm |
| Oring 656,8 × 4 mm | 656,8 mm | 4 mm |
| Oring 657 × 5 mm | 657 mm | 5 mm |
| Oring 657 × 9 mm | 657 mm | 9 mm |
| Oring 657,5 × 6,35 mm | 657,5 mm | 6,35 mm |
| Oring 670 × 3 mm | 670 mm | 3 mm |
| Oring 670 × 7 mm | 670 mm | 7 mm |
| Oring 673 × 9,9 mm | 673 mm | 9,9 mm |
| Oring 691,2 × 2 mm | 691,2 mm | 2 mm |
| Oring 693 × 9 mm | 693 mm | 9 mm |
| Oring 693,25 × 7 mm | 693,25 mm | 7 mm |
| Oring 693,5 × 7 mm | 693,5 mm | 7 mm |
| Oring 695,5 × 9 mm | 695,5 mm | 9 mm |
| Oring 695,7 × 3 mm | 695,7 mm | 3 mm |
| Oring 699 × 7 mm | 699 mm | 7 mm |
| Oring 699 × 9 mm | 699 mm | 9 mm |
| Oring 700 × 9,9 mm | 700 mm | 9,9 mm |
| Oring 710,9 × 9 mm | 710,9 mm | 9 mm |
| Oring 711 × 9 mm | 711 mm | 9 mm |
| Oring 711,3 × 9 mm | 711,3 mm | 9 mm |
| Oring 711,6 × 9 mm | 711,6 mm | 9 mm |
| Oring 711,85 × 7 mm | 711,85 mm | 7 mm |
| Oring 712,2 × 9 mm | 712,2 mm | 9 mm |
| Oring 712,4 × 9 mm | 712,4 mm | 9 mm |
| Oring 712,45 × 7 mm | 712,45 mm | 7 mm |
| Oring 730 × 8 mm | 730 mm | 8 mm |
| Oring 730 × 9 mm | 730 mm | 9 mm |
| Oring 731 × 9 mm | 731 mm | 9 mm |
| Oring 757 × 3 mm | 757 mm | 3 mm |
| Oring 757,4 × 7 mm | 757,4 mm | 7 mm |
| Oring 779 × 3,9 mm | 779 mm | 3,9 mm |
| Oring 782,5 × 9 mm | 782,5 mm | 9 mm |
| Oring 783,8 × 5 mm | 783,8 mm | 5 mm |
| Oring 784,2 × 7 mm | 784,2 mm | 7 mm |
| Oring 784,4 × 3 mm | 784,4 mm | 3 mm |
| Oring 784,7 × 5,33 mm | 784,7 mm | 5,33 mm |
| Oring 797 × 7 mm | 797 mm | 7 mm |
| Oring 810 × 7 mm | 810 mm | 7 mm |
| Oring 810,1 × 9 mm | 810,1 mm | 9 mm |
| Oring 810,11 × 7 mm | 810,11 mm | 7 mm |
| Oring 810,4 × 7,9 mm | 810,4 mm | 7,9 mm |
| Oring 810,5 × 9 mm | 810,5 mm | 9 mm |
| Oring 810,6 × 5,34 mm | 810,6 mm | 5,34 mm |
| Oring 810,68 × 8 mm | 810,68 mm | 8 mm |
| Oring 835 × 7 mm | 835 mm | 7 mm |
| Oring 835 × 9 mm | 835 mm | 9 mm |
| Oring 840 × 7 mm | 840 mm | 7 mm |
| Oring 855 × 4 mm | 855 mm | 4 mm |
| Oring 859,7 × 2 mm | 859,7 mm | 2 mm |
| Oring 862,9 × 3 mm | 862,9 mm | 3 mm |
| Oring 862,93 × 7 mm | 862,93 mm | 7 mm |
| Oring 863,348 × 5,33 mm | 863,348 mm | 5,33 mm |
| Oring 863,348 × 7 mm | 863,348 mm | 7 mm |
| Oring 863,6 × 9 mm | 863,6 mm | 9 mm |
| Oring 863,8 × 8 mm | 863,8 mm | 8 mm |
| Oring 864 × 9 mm | 864 mm | 9 mm |
| Oring 864,3 × 7 mm | 864,3 mm | 7 mm |
| Oring 864,6 × 5,33 mm | 864,6 mm | 5,33 mm |
| Oring 864,8 × 7 mm | 864,8 mm | 7 mm |
| Oring 865 × 3 mm | 865 mm | 3 mm |
| Oring 865 × 9 mm | 865 mm | 9 mm |
| Oring 865,888 × 5,33 mm | 865,888 mm | 5,33 mm |
| Oring 865,888 × 7 mm | 865,888 mm | 7 mm |
| Oring 866 × 9 mm | 866 mm | 9 mm |
| Oring 866,1 × 3 mm | 866,1 mm | 3 mm |
| Oring 866,5 × 6 mm | 866,5 mm | 6 mm |
| Oring 867 × 7 mm | 867 mm | 7 mm |
| Oring 867,4 × 7 mm | 867,4 mm | 7 mm |
| Oring 875 × 5 mm | 875 mm | 5 mm |
| Oring 875 × 8 mm | 875 mm | 8 mm |
| Oring 875 × 8,7 mm | 875 mm | 8,7 mm |
| Oring 875 × 9 mm | 875 mm | 9 mm |
| Oring 878 × 5,33 mm | 878 mm | 5,33 mm |
| Oring 910 × 7 mm | 910 mm | 7 mm |
| Oring 930 × 9 mm | 930 mm | 9 mm |
| Oring 938 × 7 mm | 938 mm | 7 mm |
| Oring 961,5 × 8,4 mm | 961,5 mm | 8,4 mm |
| Oring 961,8 × 3 mm | 961,8 mm | 3 mm |
| Oring 962 × 5 mm | 962 mm | 5 mm |
| Oring 962 × 7 mm | 962 mm | 7 mm |
| Oring 962,1 × 9 mm | 962,1 mm | 9 mm |
| Oring 962,3 × 9 mm | 962,3 mm | 9 mm |
| Oring 962,357 × 5,46 mm | 962,357 mm | 5,46 mm |
| Oring 962,5 × 3 mm | 962,5 mm | 3 mm |
| Oring 965 × 7 mm | 965 mm | 7 mm |
| Oring 968 × 8,4 mm | 968 mm | 8,4 mm |
| Oring 973,05 × 7 mm | 973,05 mm | 7 mm |
| Oring 973,5 × 5,34 mm | 973,5 mm | 5,34 mm |
| Oring 974 × 8,4 mm | 974 mm | 8,4 mm |
| Oring 990 × 5,34 mm | 990 mm | 5,34 mm |
| Oring 990 × 9 mm | 990 mm | 9 mm |

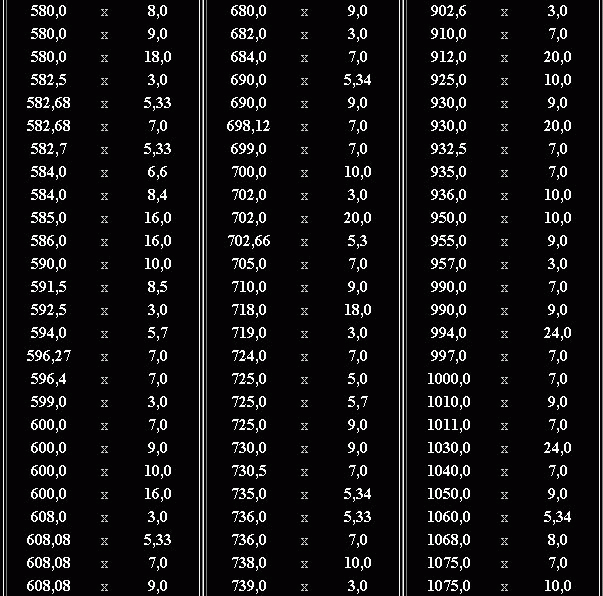

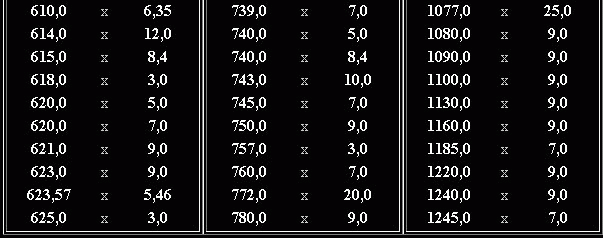

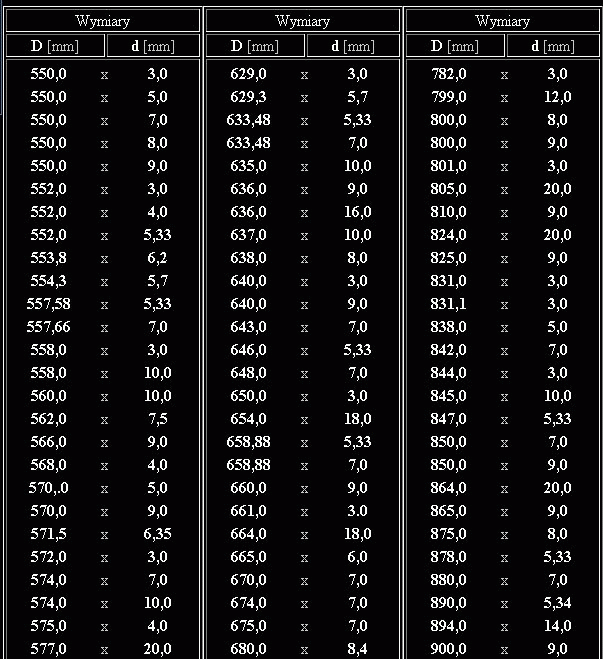

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
