Oring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.

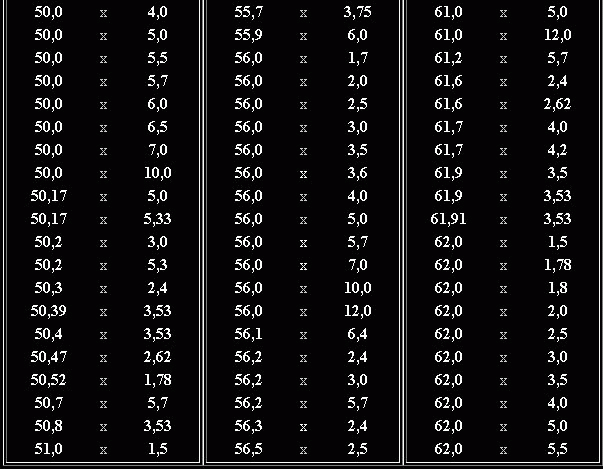

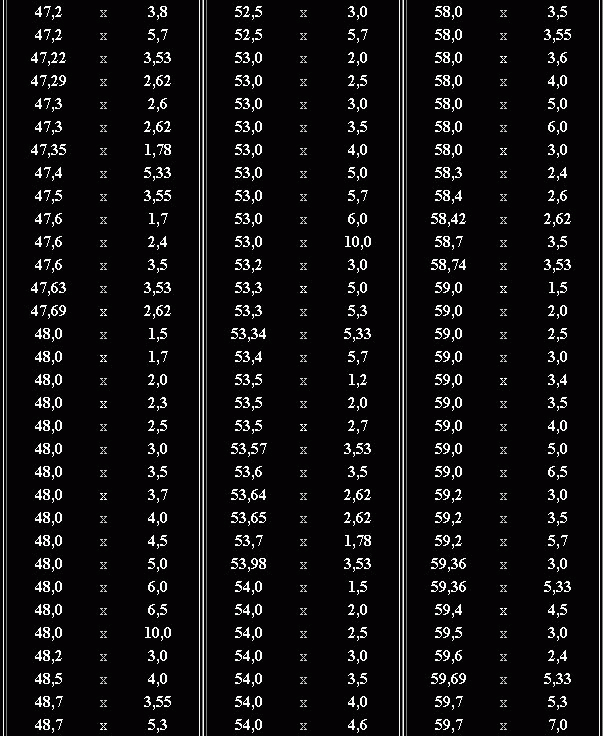

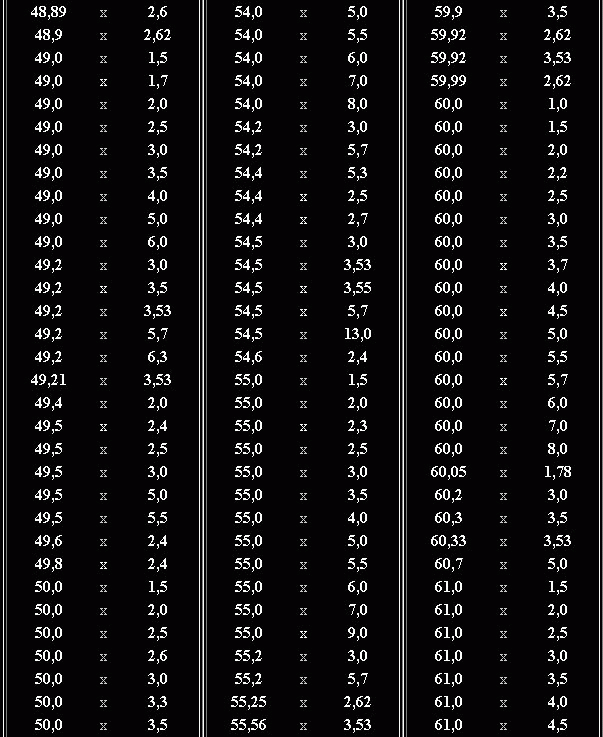

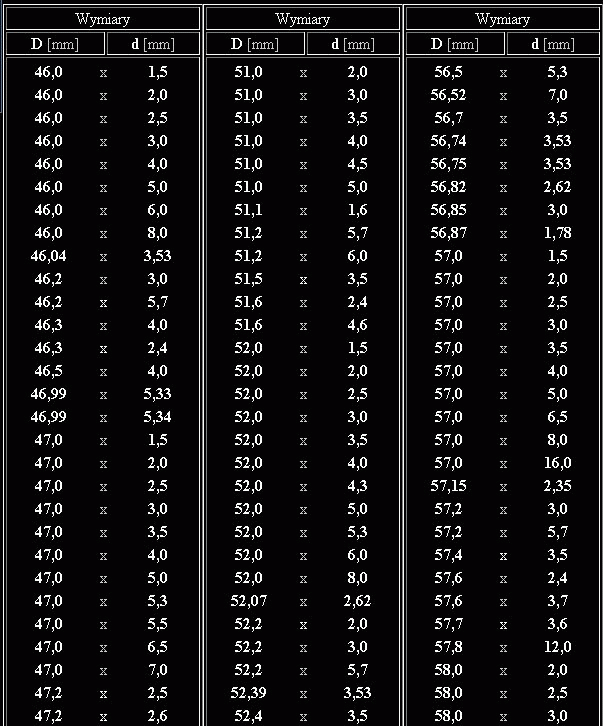

Oringi 46-62 mm – tabela wymiarów
Tabela katalogowa została odtworzona z materiału graficznego. Do każdej pozycji dodano nazwę Oring, aby wymiar był czytelny również dla wyszukiwarki.
274 pozycji| Oring – wymiar | D [mm] | d [mm] |
|---|---|---|
| Oring 46 × 2 mm | 46 mm | 2 mm |
| Oring 46 × 2,5 mm | 46 mm | 2,5 mm |
| Oring 46 × 3 mm | 46 mm | 3 mm |
| Oring 46 × 4 mm | 46 mm | 4 mm |
| Oring 46 × 5 mm | 46 mm | 5 mm |
| Oring 46 × 6 mm | 46 mm | 6 mm |
| Oring 46 × 8,9 mm | 46 mm | 8,9 mm |
| Oring 46,04 × 3,53 mm | 46,04 mm | 3,53 mm |
| Oring 46,2 × 3 mm | 46,2 mm | 3 mm |
| Oring 46,2 × 4,57 mm | 46,2 mm | 4,57 mm |
| Oring 46,3 × 4 mm | 46,3 mm | 4 mm |
| Oring 47 × 5,3 mm | 47 mm | 5,3 mm |
| Oring 47,22 × 3,53 mm | 47,22 mm | 3,53 mm |
| Oring 47,29 × 2,62 mm | 47,29 mm | 2,62 mm |
| Oring 47,3 × 2,6 mm | 47,3 mm | 2,6 mm |
| Oring 47,3 × 2,62 mm | 47,3 mm | 2,62 mm |
| Oring 47,35 × 1,3 mm | 47,35 mm | 1,3 mm |
| Oring 47,4 × 5,33 mm | 47,4 mm | 5,33 mm |
| Oring 47,5 × 3,55 mm | 47,5 mm | 3,55 mm |
| Oring 47,6 × 2,4 mm | 47,6 mm | 2,4 mm |
| Oring 47,6 × 3,5 mm | 47,6 mm | 3,5 mm |
| Oring 47,63 × 3,53 mm | 47,63 mm | 3,53 mm |
| Oring 47,69 × 2,62 mm | 47,69 mm | 2,62 mm |
| Oring 49 × 1,8 mm | 49 mm | 1,8 mm |
| Oring 49 × 7 mm | 49 mm | 7 mm |
| Oring 49,5 × 3 mm | 49,5 mm | 3 mm |
| Oring 49,6 × 2,4 mm | 49,6 mm | 2,4 mm |
| Oring 49,8 × 2,4 mm | 49,8 mm | 2,4 mm |
| Oring 50 × 2 mm | 50 mm | 2 mm |
| Oring 50 × 2,5 mm | 50 mm | 2,5 mm |
| Oring 50 × 2,6 mm | 50 mm | 2,6 mm |
| Oring 50 × 3 mm | 50 mm | 3 mm |
| Oring 50 × 3,3 mm | 50 mm | 3,3 mm |
| Oring 50 × 3,5 mm | 50 mm | 3,5 mm |
| Oring 50 × 3,8 mm | 50 mm | 3,8 mm |
| Oring 50 × 5,5 mm | 50 mm | 5,5 mm |
| Oring 50 × 6 mm | 50 mm | 6 mm |
| Oring 50 × 6,5 mm | 50 mm | 6,5 mm |
| Oring 50 × 7 mm | 50 mm | 7 mm |
| Oring 50 × 8,7 mm | 50 mm | 8,7 mm |
| Oring 50,17 × 5 mm | 50,17 mm | 5 mm |
| Oring 50,2 × 3 mm | 50,2 mm | 3 mm |
| Oring 50,2 × 5,3 mm | 50,2 mm | 5,3 mm |
| Oring 50,3 × 2,4 mm | 50,3 mm | 2,4 mm |
| Oring 50,39 × 3,53 mm | 50,39 mm | 3,53 mm |
| Oring 50,4 × 3,53 mm | 50,4 mm | 3,53 mm |
| Oring 50,47 × 2,62 mm | 50,47 mm | 2,62 mm |
| Oring 50,52 × 4,178 mm | 50,52 mm | 4,178 mm |
| Oring 50,7 × 8,7 mm | 50,7 mm | 8,7 mm |
| Oring 50,8 × 3,53 mm | 50,8 mm | 3,53 mm |
| Oring 52 × 5,5 mm | 52 mm | 5,5 mm |
| Oring 53 × 2,5 mm | 53 mm | 2,5 mm |
| Oring 53 × 3 mm | 53 mm | 3 mm |
| Oring 53 × 3,5 mm | 53 mm | 3,5 mm |
| Oring 53 × 4 mm | 53 mm | 4 mm |
| Oring 53 × 5 mm | 53 mm | 5 mm |
| Oring 53,3 × 2 mm | 53,3 mm | 2 mm |
| Oring 53,3 × 5,3 mm | 53,3 mm | 5,3 mm |
| Oring 53,3 × 5,7 mm | 53,3 mm | 5,7 mm |
| Oring 53,34 × 5,7 mm | 53,34 mm | 5,7 mm |
| Oring 53,45 × 2 mm | 53,45 mm | 2 mm |
| Oring 53,5 × 2 mm | 53,5 mm | 2 mm |
| Oring 53,5 × 2,7 mm | 53,5 mm | 2,7 mm |
| Oring 53,5 × 12 mm | 53,5 mm | 12 mm |
| Oring 53,57 × 3,53 mm | 53,57 mm | 3,53 mm |
| Oring 54 × 1,5 mm | 54 mm | 1,5 mm |
| Oring 54 × 1,7 mm | 54 mm | 1,7 mm |
| Oring 54 × 2 mm | 54 mm | 2 mm |
| Oring 54 × 2,5 mm | 54 mm | 2,5 mm |
| Oring 54 × 2,6 mm | 54 mm | 2,6 mm |
| Oring 54 × 3,5 mm | 54 mm | 3,5 mm |
| Oring 54 × 3,7 mm | 54 mm | 3,7 mm |
| Oring 54 × 4 mm | 54 mm | 4 mm |
| Oring 54 × 5 mm | 54 mm | 5 mm |
| Oring 54 × 6 mm | 54 mm | 6 mm |
| Oring 54 × 6,5 mm | 54 mm | 6,5 mm |
| Oring 54 × 7 mm | 54 mm | 7 mm |
| Oring 54 × 8 mm | 54 mm | 8 mm |
| Oring 54,1 × 1,6 mm | 54,1 mm | 1,6 mm |
| Oring 54,2 × 3 mm | 54,2 mm | 3 mm |
| Oring 54,2 × 5,7 mm | 54,2 mm | 5,7 mm |
| Oring 54,3 × 2,4 mm | 54,3 mm | 2,4 mm |
| Oring 54,4 × 2,5 mm | 54,4 mm | 2,5 mm |
| Oring 54,4 × 4 mm | 54,4 mm | 4 mm |
| Oring 54,5 × 3,53 mm | 54,5 mm | 3,53 mm |
| Oring 54,5 × 3,55 mm | 54,5 mm | 3,55 mm |
| Oring 54,5 × 4 mm | 54,5 mm | 4 mm |
| Oring 54,5 × 4,7 mm | 54,5 mm | 4,7 mm |
| Oring 54,5 × 5 mm | 54,5 mm | 5 mm |
| Oring 54,6 × 2,4 mm | 54,6 mm | 2,4 mm |
| Oring 54,65 × 4 mm | 54,65 mm | 4 mm |
| Oring 54,699 × 5,33 mm | 54,699 mm | 5,33 mm |
| Oring 54,699 × 5,34 mm | 54,699 mm | 5,34 mm |
| Oring 54,7 × 2 mm | 54,7 mm | 2 mm |
| Oring 54,7 × 2,5 mm | 54,7 mm | 2,5 mm |
| Oring 54,7 × 3 mm | 54,7 mm | 3 mm |
| Oring 54,7 × 3,5 mm | 54,7 mm | 3,5 mm |
| Oring 54,7 × 4 mm | 54,7 mm | 4 mm |
| Oring 54,7 × 5 mm | 54,7 mm | 5 mm |
| Oring 54,7 × 5,5 mm | 54,7 mm | 5,5 mm |
| Oring 54,7 × 6,5 mm | 54,7 mm | 6,5 mm |
| Oring 54,7 × 7 mm | 54,7 mm | 7 mm |
| Oring 54,709 × 5,3 mm | 54,709 mm | 5,3 mm |
| Oring 54,72 × 2,5 mm | 54,72 mm | 2,5 mm |
| Oring 54,87 × 3,55 mm | 54,87 mm | 3,55 mm |
| Oring 54,9 × 6 mm | 54,9 mm | 6 mm |
| Oring 54,92 × 2,6 mm | 54,92 mm | 2,6 mm |
| Oring 54,92 × 3 mm | 54,92 mm | 3 mm |
| Oring 54,92 × 3,5 mm | 54,92 mm | 3,5 mm |
| Oring 54,92 × 3,53 mm | 54,92 mm | 3,53 mm |
| Oring 54,92 × 5,7 mm | 54,92 mm | 5,7 mm |
| Oring 54,92 × 6,3 mm | 54,92 mm | 6,3 mm |
| Oring 54,921 × 3,53 mm | 54,921 mm | 3,53 mm |
| Oring 54,94 × 2 mm | 54,94 mm | 2 mm |
| Oring 54,95 × 2,4 mm | 54,95 mm | 2,4 mm |
| Oring 55 × 2 mm | 55 mm | 2 mm |
| Oring 55 × 2,3 mm | 55 mm | 2,3 mm |
| Oring 55 × 2,5 mm | 55 mm | 2,5 mm |
| Oring 55 × 3 mm | 55 mm | 3 mm |
| Oring 55 × 3,5 mm | 55 mm | 3,5 mm |
| Oring 55 × 4 mm | 55 mm | 4 mm |
| Oring 55 × 5 mm | 55 mm | 5 mm |
| Oring 55 × 5,5 mm | 55 mm | 5,5 mm |
| Oring 55 × 6 mm | 55 mm | 6 mm |
| Oring 55 × 7 mm | 55 mm | 7 mm |
| Oring 55 × 9 mm | 55 mm | 9 mm |
| Oring 55,1 × 2 mm | 55,1 mm | 2 mm |
| Oring 55,1 × 3 mm | 55,1 mm | 3 mm |
| Oring 55,1 × 3,5 mm | 55,1 mm | 3,5 mm |
| Oring 55,1 × 4 mm | 55,1 mm | 4 mm |
| Oring 55,1 × 4,5 mm | 55,1 mm | 4,5 mm |
| Oring 55,1 × 5 mm | 55,1 mm | 5 mm |
| Oring 55,12 × 8,7 mm | 55,12 mm | 8,7 mm |
| Oring 55,15 × 3,5 mm | 55,15 mm | 3,5 mm |
| Oring 55,16 × 2,4 mm | 55,16 mm | 2,4 mm |
| Oring 55,16 × 4,6 mm | 55,16 mm | 4,6 mm |
| Oring 55,2 × 1,5 mm | 55,2 mm | 1,5 mm |
| Oring 55,2 × 2 mm | 55,2 mm | 2 mm |
| Oring 55,2 × 2,5 mm | 55,2 mm | 2,5 mm |
| Oring 55,2 × 3 mm | 55,2 mm | 3 mm |
| Oring 55,2 × 3,5 mm | 55,2 mm | 3,5 mm |
| Oring 55,2 × 4 mm | 55,2 mm | 4 mm |
| Oring 55,2 × 4,3 mm | 55,2 mm | 4,3 mm |
| Oring 55,2 × 4,7 mm | 55,2 mm | 4,7 mm |
| Oring 55,2 × 5 mm | 55,2 mm | 5 mm |
| Oring 55,2 × 5,3 mm | 55,2 mm | 5,3 mm |
| Oring 55,2 × 6 mm | 55,2 mm | 6 mm |
| Oring 55,2 × 8 mm | 55,2 mm | 8 mm |
| Oring 55,207 × 2,62 mm | 55,207 mm | 2,62 mm |
| Oring 55,22 × 2 mm | 55,22 mm | 2 mm |
| Oring 55,22 × 4,7 mm | 55,22 mm | 4,7 mm |
| Oring 55,239 × 3,53 mm | 55,239 mm | 3,53 mm |
| Oring 55,24 × 3,5 mm | 55,24 mm | 3,5 mm |
| Oring 55,25 × 2,62 mm | 55,25 mm | 2,62 mm |
| Oring 55,3 × 6 mm | 55,3 mm | 6 mm |
| Oring 55,332 × 3 mm | 55,332 mm | 3 mm |
| Oring 55,333 × 5 mm | 55,333 mm | 5 mm |
| Oring 55,336 × 3,5 mm | 55,336 mm | 3,5 mm |
| Oring 55,364 × 2,62 mm | 55,364 mm | 2,62 mm |
| Oring 55,365 × 2,62 mm | 55,365 mm | 2,62 mm |
| Oring 55,37 × 1,78 mm | 55,37 mm | 1,78 mm |
| Oring 55,398 × 3,53 mm | 55,398 mm | 3,53 mm |
| Oring 55,4 × 2 mm | 55,4 mm | 2 mm |
| Oring 55,4 × 2,5 mm | 55,4 mm | 2,5 mm |
| Oring 55,4 × 3 mm | 55,4 mm | 3 mm |
| Oring 55,4 × 3,5 mm | 55,4 mm | 3,5 mm |
| Oring 55,4 × 4 mm | 55,4 mm | 4 mm |
| Oring 55,4 × 4,6 mm | 55,4 mm | 4,6 mm |
| Oring 55,556 × 3,53 mm | 55,556 mm | 3,53 mm |
| Oring 55,6 × 2,5 mm | 55,6 mm | 2,5 mm |
| Oring 55,6 × 3,6 mm | 55,6 mm | 3,6 mm |
| Oring 55,6 × 4 mm | 55,6 mm | 4 mm |
| Oring 55,6 × 5 mm | 55,6 mm | 5 mm |
| Oring 55,61 × 6,4 mm | 55,61 mm | 6,4 mm |
| Oring 55,62 × 2,4 mm | 55,62 mm | 2,4 mm |
| Oring 55,62 × 3 mm | 55,62 mm | 3 mm |
| Oring 55,62 × 5,7 mm | 55,62 mm | 5,7 mm |
| Oring 55,63 × 2,4 mm | 55,63 mm | 2,4 mm |
| Oring 55,65 × 5,3 mm | 55,65 mm | 5,3 mm |
| Oring 55,652 × 7 mm | 55,652 mm | 7 mm |
| Oring 55,67 × 3,5 mm | 55,67 mm | 3,5 mm |
| Oring 55,674 × 3,53 mm | 55,674 mm | 3,53 mm |
| Oring 55,675 × 3,53 mm | 55,675 mm | 3,53 mm |
| Oring 55,682 × 2,62 mm | 55,682 mm | 2,62 mm |
| Oring 55,685 × 3 mm | 55,685 mm | 3 mm |
| Oring 55,687 × 1,38 mm | 55,687 mm | 1,38 mm |
| Oring 55,7 × 2 mm | 55,7 mm | 2 mm |
| Oring 55,7 × 2,5 mm | 55,7 mm | 2,5 mm |
| Oring 55,7 × 3 mm | 55,7 mm | 3 mm |
| Oring 55,7 × 3,5 mm | 55,7 mm | 3,5 mm |
| Oring 55,7 × 4 mm | 55,7 mm | 4 mm |
| Oring 55,7 × 4,1 mm | 55,7 mm | 4,1 mm |
| Oring 55,7 × 5 mm | 55,7 mm | 5 mm |
| Oring 55,7 × 6,5 mm | 55,7 mm | 6,5 mm |
| Oring 55,7 × 8 mm | 55,7 mm | 8 mm |
| Oring 55,715 × 2,35 mm | 55,715 mm | 2,35 mm |
| Oring 55,72 × 3 mm | 55,72 mm | 3 mm |
| Oring 55,72 × 8,7 mm | 55,72 mm | 8,7 mm |
| Oring 55,74 × 3,8 mm | 55,74 mm | 3,8 mm |
| Oring 55,76 × 2,4 mm | 55,76 mm | 2,4 mm |
| Oring 55,76 × 3,7 mm | 55,76 mm | 3,7 mm |
| Oring 55,77 × 3,6 mm | 55,77 mm | 3,6 mm |
| Oring 55,78 × 2 mm | 55,78 mm | 2 mm |
| Oring 55,8 × 2 mm | 55,8 mm | 2 mm |
| Oring 55,8 × 3 mm | 55,8 mm | 3 mm |
| Oring 55,8 × 3,6 mm | 55,8 mm | 3,6 mm |
| Oring 55,8 × 4 mm | 55,8 mm | 4 mm |
| Oring 55,8 × 5 mm | 55,8 mm | 5 mm |
| Oring 55,8 × 6 mm | 55,8 mm | 6 mm |
| Oring 55,83 × 2,4 mm | 55,83 mm | 2,4 mm |
| Oring 55,83 × 3 mm | 55,83 mm | 3 mm |
| Oring 55,842 × 2,62 mm | 55,842 mm | 2,62 mm |
| Oring 55,9 × 4 mm | 55,9 mm | 4 mm |
| Oring 55,92 × 5,7 mm | 55,92 mm | 5,7 mm |
| Oring 55,99 × 5 mm | 55,99 mm | 5 mm |
| Oring 55,992 × 3,53 mm | 55,992 mm | 3,53 mm |
| Oring 55,999 × 2,62 mm | 55,999 mm | 2,62 mm |
| Oring 56 × 2 mm | 56 mm | 2 mm |
| Oring 56 × 2,2 mm | 56 mm | 2,2 mm |
| Oring 56 × 2,5 mm | 56 mm | 2,5 mm |
| Oring 56 × 3 mm | 56 mm | 3 mm |
| Oring 56 × 3,5 mm | 56 mm | 3,5 mm |
| Oring 56 × 3,7 mm | 56 mm | 3,7 mm |
| Oring 56 × 4 mm | 56 mm | 4 mm |
| Oring 56 × 4,5 mm | 56 mm | 4,5 mm |
| Oring 56 × 5 mm | 56 mm | 5 mm |
| Oring 56 × 5,7 mm | 56 mm | 5,7 mm |
| Oring 56 × 6 mm | 56 mm | 6 mm |
| Oring 56 × 7 mm | 56 mm | 7 mm |
| Oring 56 × 8,6 mm | 56 mm | 8,6 mm |
| Oring 56,005 × 1,78 mm | 56,005 mm | 1,78 mm |
| Oring 56,02 × 3 mm | 56,02 mm | 3 mm |
| Oring 56,03 × 3,5 mm | 56,03 mm | 3,5 mm |
| Oring 56,033 × 3,53 mm | 56,033 mm | 3,53 mm |
| Oring 56,07 × 5 mm | 56,07 mm | 5 mm |
| Oring 56,1 × 2 mm | 56,1 mm | 2 mm |
| Oring 56,1 × 2,5 mm | 56,1 mm | 2,5 mm |
| Oring 56,1 × 3,5 mm | 56,1 mm | 3,5 mm |
| Oring 56,1 × 4 mm | 56,1 mm | 4 mm |
| Oring 56,1 × 4,8 mm | 56,1 mm | 4,8 mm |
| Oring 56,12 × 5,7 mm | 56,12 mm | 5,7 mm |
| Oring 56,16 × 2,4 mm | 56,16 mm | 2,4 mm |
| Oring 56,16 × 2,62 mm | 56,16 mm | 2,62 mm |
| Oring 56,17 × 4 mm | 56,17 mm | 4 mm |
| Oring 56,17 × 4,2 mm | 56,17 mm | 4,2 mm |
| Oring 56,19 × 3,5 mm | 56,19 mm | 3,5 mm |
| Oring 56,19 × 3,83 mm | 56,19 mm | 3,83 mm |
| Oring 56,191 × 3,53 mm | 56,191 mm | 3,53 mm |
| Oring 57 × 3,5 mm | 57 mm | 3,5 mm |
| Oring 58 × 2,3 mm | 58 mm | 2,3 mm |
| Oring 58 × 3,5 mm | 58 mm | 3,5 mm |
| Oring 58 × 4,5 mm | 58 mm | 4,5 mm |
| Oring 58 × 6 mm | 58 mm | 6 mm |
| Oring 58,74 × 3,53 mm | 58,74 mm | 3,53 mm |
| Oring 59 × 2 mm | 59 mm | 2 mm |
| Oring 59 × 2,5 mm | 59 mm | 2,5 mm |
| Oring 59 × 3 mm | 59 mm | 3 mm |
| Oring 59 × 3,4 mm | 59 mm | 3,4 mm |
| Oring 59 × 6,5 mm | 59 mm | 6,5 mm |
| Oring 59,2 × 3 mm | 59,2 mm | 3 mm |
| Oring 59,4 × 4,5 mm | 59,4 mm | 4,5 mm |
| Oring 59,5 × 2,5 mm | 59,5 mm | 2,5 mm |
| Oring 59,5 × 3 mm | 59,5 mm | 3 mm |
| Oring 59,5 × 5,5 mm | 59,5 mm | 5,5 mm |
| Oring 59,6 × 2,4 mm | 59,6 mm | 2,4 mm |
| Oring 59,69 × 5,33 mm | 59,69 mm | 5,33 mm |
| Oring 59,7 × 5,3 mm | 59,7 mm | 5,3 mm |
| Oring 59,77 × 7 mm | 59,77 mm | 7 mm |
| Oring 59,9 × 3,5 mm | 59,9 mm | 3,5 mm |
| Oring 59,92 × 3,8 mm | 59,92 mm | 3,8 mm |
| Oring 60 × 2,5 mm | 60 mm | 2,5 mm |
| Oring 62 × 1,5 mm | 62 mm | 1,5 mm |
| Oring 62 × 1,8 mm | 62 mm | 1,8 mm |
| Oring 62 × 3,5 mm | 62 mm | 3,5 mm |
Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
ABS Serwis, ul. Kościelna 5/L5, 20-307 Lublin • pon.–pt. 8:00–16:00
