Oring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.
Oringi 340-550 mm – tabela wymiarów
Tabela katalogowa została odtworzona z materiału graficznego. Do każdej pozycji dodano nazwę Oring, aby wymiar był czytelny również dla wyszukiwarki.
224 pozycji| Oring – wymiar | D [mm] | d [mm] |
|---|---|---|
| Oring 340 × 3 mm | 340 mm | 3 mm |
| Oring 340 × 4 mm | 340 mm | 4 mm |
| Oring 340 × 5 mm | 340 mm | 5 mm |
| Oring 340 × 5,33 mm | 340 mm | 5,33 mm |
| Oring 340 × 6 mm | 340 mm | 6 mm |
| Oring 340 × 7,5 mm | 340 mm | 7,5 mm |
| Oring 340 × 8 mm | 340 mm | 8 mm |
| Oring 340 × 8,6 mm | 340 mm | 8,6 mm |
| Oring 341,22 × 8 mm | 341,22 mm | 8 mm |
| Oring 341,5 × 5 mm | 341,5 mm | 5 mm |
| Oring 341,5 × 8,4 mm | 341,5 mm | 8,4 mm |
| Oring 341,796 × 7 mm | 341,796 mm | 7 mm |
| Oring 341,8 × 7 mm | 341,8 mm | 7 mm |
| Oring 341,91 × 8,4 mm | 341,91 mm | 8,4 mm |
| Oring 341,93 × 5,37 mm | 341,93 mm | 5,37 mm |
| Oring 342 × 5 mm | 342 mm | 5 mm |
| Oring 342 × 7 mm | 342 mm | 7 mm |
| Oring 342 × 9 mm | 342 mm | 9 mm |
| Oring 342,27 × 7 mm | 342,27 mm | 7 mm |
| Oring 345 × 3 mm | 345 mm | 3 mm |
| Oring 345 × 5 mm | 345 mm | 5 mm |
| Oring 345 × 7 mm | 345 mm | 7 mm |
| Oring 346 × 4 mm | 346 mm | 4 mm |
| Oring 347 × 6 mm | 347 mm | 6 mm |
| Oring 348 × 8 mm | 348 mm | 8 mm |
| Oring 348,9 × 7 mm | 348,9 mm | 7 mm |
| Oring 349,93 × 5,7 mm | 349,93 mm | 5,7 mm |
| Oring 350 × 4 mm | 350 mm | 4 mm |
| Oring 350 × 4,8 mm | 350 mm | 4,8 mm |
| Oring 350 × 5 mm | 350 mm | 5 mm |
| Oring 350,038 × 5,46 mm | 350,038 mm | 5,46 mm |
| Oring 350,5 × 6 mm | 350,5 mm | 6 mm |
| Oring 350,6 × 7 mm | 350,6 mm | 7 mm |
| Oring 350,6 × 7,5 mm | 350,6 mm | 7,5 mm |
| Oring 350,678 × 5,33 mm | 350,678 mm | 5,33 mm |
| Oring 350,686 × 7 mm | 350,686 mm | 7 mm |
| Oring 350,8 × 3 mm | 350,8 mm | 3 mm |
| Oring 351 × 1,9 mm | 351 mm | 1,9 mm |
| Oring 351 × 3 mm | 351 mm | 3 mm |
| Oring 351 × 8,9 mm | 351 mm | 8,9 mm |
| Oring 351 × 9 mm | 351 mm | 9 mm |
| Oring 351,8 × 5,33 mm | 351,8 mm | 5,33 mm |
| Oring 351,85 × 3 mm | 351,85 mm | 3 mm |
| Oring 351,9 × 5 mm | 351,9 mm | 5 mm |
| Oring 351,93 × 5,7 mm | 351,93 mm | 5,7 mm |
| Oring 352 × 8 mm | 352 mm | 8 mm |
| Oring 352,006 × 7 mm | 352,006 mm | 7 mm |
| Oring 352,2 × 8,7 mm | 352,2 mm | 8,7 mm |
| Oring 352,5 × 5 mm | 352,5 mm | 5 mm |
| Oring 352,5 × 8 mm | 352,5 mm | 8 mm |
| Oring 352,93 × 4,7 mm | 352,93 mm | 4,7 mm |
| Oring 352,95 × 3 mm | 352,95 mm | 3 mm |
| Oring 353 × 7 mm | 353 mm | 7 mm |
| Oring 353 × 9 mm | 353 mm | 9 mm |
| Oring 353,226 × 7 mm | 353,226 mm | 7 mm |
| Oring 353,81 × 5,7 mm | 353,81 mm | 5,7 mm |
| Oring 374 × 5 mm | 374 mm | 5 mm |
| Oring 375 × 5 mm | 375 mm | 5 mm |
| Oring 375 × 6 mm | 375 mm | 6 mm |
| Oring 375 × 7 mm | 375 mm | 7 mm |
| Oring 388 × 4,5 mm | 388 mm | 4,5 mm |
| Oring 389 × 6 mm | 389 mm | 6 mm |
| Oring 390 × 4 mm | 390 mm | 4 mm |
| Oring 390 × 5 mm | 390 mm | 5 mm |
| Oring 390 × 9 mm | 390 mm | 9 mm |
| Oring 392 × 6 mm | 392 mm | 6 mm |
| Oring 392,8 × 3 mm | 392,8 mm | 3 mm |
| Oring 393 × 4,7 mm | 393 mm | 4,7 mm |
| Oring 393 × 7 mm | 393 mm | 7 mm |
| Oring 393,07 × 7 mm | 393,07 mm | 7 mm |
| Oring 394 × 7 mm | 394 mm | 7 mm |
| Oring 410 × 9 mm | 410 mm | 9 mm |
| Oring 411 × 3 mm | 411 mm | 3 mm |
| Oring 422 × 6 mm | 422 mm | 6 mm |
| Oring 422,2 × 6,2 mm | 422,2 mm | 6,2 mm |
| Oring 422,2 × 6,9 mm | 422,2 mm | 6,9 mm |
| Oring 423 × 8 mm | 423 mm | 8 mm |
| Oring 425 × 3,5 mm | 425 mm | 3,5 mm |
| Oring 425 × 4 mm | 425 mm | 4 mm |
| Oring 425 × 8 mm | 425 mm | 8 mm |
| Oring 426 × 5,7 mm | 426 mm | 5,7 mm |
| Oring 426,1 × 3 mm | 426,1 mm | 3 mm |
| Oring 429 × 6 mm | 429 mm | 6 mm |
| Oring 430 × 5 mm | 430 mm | 5 mm |
| Oring 430,4 × 8,4 mm | 430,4 mm | 8,4 mm |
| Oring 437 × 4 mm | 437 mm | 4 mm |
| Oring 437 × 7,6 mm | 437 mm | 7,6 mm |
| Oring 437 × 8,4 mm | 437 mm | 8,4 mm |
| Oring 437 × 10 mm | 437 mm | 10 mm |
| Oring 437,1 × 3 mm | 437,1 mm | 3 mm |
| Oring 439,3 × 5,7 mm | 439,3 mm | 5,7 mm |
| Oring 439,5 × 4 mm | 439,5 mm | 4 mm |
| Oring 439,5 × 5 mm | 439,5 mm | 5 mm |
| Oring 439,5 × 8 mm | 439,5 mm | 8 mm |
| Oring 439,6 × 1 mm | 439,6 mm | 1 mm |
| Oring 439,93 × 4,57 mm | 439,93 mm | 4,57 mm |
| Oring 440 × 5 mm | 440 mm | 5 mm |
| Oring 440 × 6 mm | 440 mm | 6 mm |
| Oring 440 × 7 mm | 440 mm | 7 mm |
| Oring 440 × 7,5 mm | 440 mm | 7,5 mm |
| Oring 440,2 × 4 mm | 440,2 mm | 4 mm |
| Oring 440,2 × 9 mm | 440,2 mm | 9 mm |
| Oring 440,526 × 3,53 mm | 440,526 mm | 3,53 mm |
| Oring 440,526 × 5,33 mm | 440,526 mm | 5,33 mm |
| Oring 440,526 × 7 mm | 440,526 mm | 7 mm |
| Oring 440,8 × 1 mm | 440,8 mm | 1 mm |
| Oring 441 × 3 mm | 441 mm | 3 mm |
| Oring 445,2 × 6 mm | 445,2 mm | 6 mm |
| Oring 445,4 × 8,4 mm | 445,4 mm | 8,4 mm |
| Oring 445,5 × 3 mm | 445,5 mm | 3 mm |
| Oring 445,598 × 1,78 mm | 445,598 mm | 1,78 mm |
| Oring 445,606 × 3,53 mm | 445,606 mm | 3,53 mm |
| Oring 445,606 × 5,33 mm | 445,606 mm | 5,33 mm |
| Oring 445,607 × 7 mm | 445,607 mm | 7 mm |
| Oring 445,93 × 5,7 mm | 445,93 mm | 5,7 mm |
| Oring 446 × 5 mm | 446 mm | 5 mm |
| Oring 446 × 7 mm | 446 mm | 7 mm |
| Oring 446 × 8 mm | 446 mm | 8 mm |
| Oring 446 × 10 mm | 446 mm | 10 mm |
| Oring 446,1 × 8,4 mm | 446,1 mm | 8,4 mm |
| Oring 446,14 × 8,6 mm | 446,14 mm | 8,6 mm |
| Oring 446,4 × 7 mm | 446,4 mm | 7 mm |
| Oring 446,44 × 5,7 mm | 446,44 mm | 5,7 mm |
| Oring 446,55 × 3 mm | 446,55 mm | 3 mm |
| Oring 446,876 × 7 mm | 446,876 mm | 7 mm |
| Oring 446,878 × 7 mm | 446,878 mm | 7 mm |
| Oring 447 × 3 mm | 447 mm | 3 mm |
| Oring 447 × 4 mm | 447 mm | 4 mm |
| Oring 447 × 5 mm | 447 mm | 5 mm |
| Oring 447,8 × 6 mm | 447,8 mm | 6 mm |
| Oring 447,993 × 5,7 mm | 447,993 mm | 5,7 mm |
| Oring 448,5 × 5,7 mm | 448,5 mm | 5,7 mm |
| Oring 449 × 6 mm | 449 mm | 6 mm |
| Oring 449 × 7 mm | 449 mm | 7 mm |
| Oring 449 × 8 mm | 449 mm | 8 mm |
| Oring 449 × 9 mm | 449 mm | 9 mm |
| Oring 449,5 × 8 mm | 449,5 mm | 8 mm |
| Oring 475 × 3 mm | 475 mm | 3 mm |
| Oring 481,38 × 5,33 mm | 481,38 mm | 5,33 mm |
| Oring 490 × 4 mm | 490 mm | 4 mm |
| Oring 490 × 5 mm | 490 mm | 5 mm |
| Oring 490 × 7 mm | 490 mm | 7 mm |
| Oring 490 × 7,5 mm | 490 mm | 7,5 mm |
| Oring 490 × 8 mm | 490 mm | 8 mm |
| Oring 490 × 9 mm | 490 mm | 9 mm |
| Oring 491,49 × 5,33 mm | 491,49 mm | 5,33 mm |
| Oring 492 × 4 mm | 492 mm | 4 mm |
| Oring 492 × 9 mm | 492 mm | 9 mm |
| Oring 494,16 × 7 mm | 494,16 mm | 7 mm |
| Oring 498 × 5 mm | 498 mm | 5 mm |
| Oring 535,18 × 3 mm | 535,18 mm | 3 mm |
| Oring 535,2 × 3 mm | 535,2 mm | 3 mm |
| Oring 535,4 × 3 mm | 535,4 mm | 3 mm |
| Oring 535,497 × 5,33 mm | 535,497 mm | 5,33 mm |
| Oring 535,497 × 7 mm | 535,497 mm | 7 mm |
| Oring 535,5 × 3 mm | 535,5 mm | 3 mm |
| Oring 535,5 × 4 mm | 535,5 mm | 4 mm |
| Oring 535,5 × 8 mm | 535,5 mm | 8 mm |
| Oring 535,519 × 3,83 mm | 535,519 mm | 3,83 mm |
| Oring 535,7 × 10 mm | 535,7 mm | 10 mm |
| Oring 535,93 × 4,7 mm | 535,93 mm | 4,7 mm |
| Oring 536 × 3 mm | 536 mm | 3 mm |
| Oring 536 × 4 mm | 536 mm | 4 mm |
| Oring 536 × 5 mm | 536 mm | 5 mm |
| Oring 536 × 6 mm | 536 mm | 6 mm |
| Oring 536 × 7 mm | 536 mm | 7 mm |
| Oring 536 × 7,5 mm | 536 mm | 7,5 mm |
| Oring 536 × 9 mm | 536 mm | 9 mm |
| Oring 536,3 × 5,33 mm | 536,3 mm | 5,33 mm |
| Oring 536,4 × 3 mm | 536,4 mm | 3 mm |
| Oring 536,5 × 5 mm | 536,5 mm | 5 mm |
| Oring 536,5 × 6 mm | 536,5 mm | 6 mm |
| Oring 536,737 × 7 mm | 536,737 mm | 7 mm |
| Oring 536,767 × 7 mm | 536,767 mm | 7 mm |
| Oring 537 × 4 mm | 537 mm | 4 mm |
| Oring 538 × 4 mm | 538 mm | 4 mm |
| Oring 538 × 5 mm | 538 mm | 5 mm |
| Oring 538 × 6 mm | 538 mm | 6 mm |
| Oring 538 × 7 mm | 538 mm | 7 mm |
| Oring 538 × 7,5 mm | 538 mm | 7,5 mm |
| Oring 538,037 × 5,33 mm | 538,037 mm | 5,33 mm |
| Oring 538,037 × 7 mm | 538,037 mm | 7 mm |
| Oring 538,059 × 3,53 mm | 538,059 mm | 3,53 mm |
| Oring 538,28 × 3 mm | 538,28 mm | 3 mm |
| Oring 538,4 × 7 mm | 538,4 mm | 7 mm |
| Oring 538,5 × 5 mm | 538,5 mm | 5 mm |
| Oring 538,6 × 4 mm | 538,6 mm | 4 mm |
| Oring 538,6 × 6 mm | 538,6 mm | 6 mm |
| Oring 541 × 7 mm | 541 mm | 7 mm |
| Oring 541 × 9 mm | 541 mm | 9 mm |
| Oring 542 × 7 mm | 542 mm | 7 mm |
| Oring 543,066 × 3,53 mm | 543,066 mm | 3,53 mm |
| Oring 543,066 × 7 mm | 543,066 mm | 7 mm |
| Oring 543,3 × 2,9 mm | 543,3 mm | 2,9 mm |
| Oring 543,93 × 4,7 mm | 543,93 mm | 4,7 mm |
| Oring 544 × 4 mm | 544 mm | 4 mm |
| Oring 544 × 6 mm | 544 mm | 6 mm |
| Oring 544 × 7,5 mm | 544 mm | 7,5 mm |
| Oring 544 × 9 mm | 544 mm | 9 mm |
| Oring 544,1 × 8 mm | 544,1 mm | 8 mm |
| Oring 544,336 × 7 mm | 544,336 mm | 7 mm |
| Oring 544,4 × 3 mm | 544,4 mm | 3 mm |
| Oring 544,4 × 8 mm | 544,4 mm | 8 mm |
| Oring 544,5 × 5 mm | 544,5 mm | 5 mm |
| Oring 544,5 × 6 mm | 544,5 mm | 6 mm |
| Oring 544,5 × 9 mm | 544,5 mm | 9 mm |
| Oring 544,6 × 2,5 mm | 544,6 mm | 2,5 mm |
| Oring 544,98 × 6,2 mm | 544,98 mm | 6,2 mm |
| Oring 545 × 3 mm | 545 mm | 3 mm |
| Oring 545 × 5 mm | 545 mm | 5 mm |
| Oring 545 × 6,3 mm | 545 mm | 6,3 mm |
| Oring 545 × 7 mm | 545 mm | 7 mm |
| Oring 545 × 7,5 mm | 545 mm | 7,5 mm |
| Oring 545 × 8 mm | 545 mm | 8 mm |
| Oring 545 × 9 mm | 545 mm | 9 mm |
| Oring 545,47 × 7 mm | 545,47 mm | 7 mm |
| Oring 549,3 × 5,7 mm | 549,3 mm | 5,7 mm |
| Oring 550 × 3 mm | 550 mm | 3 mm |
| Oring 550 × 5 mm | 550 mm | 5 mm |
| Oring 550 × 6 mm | 550 mm | 6 mm |
| Oring 550 × 7 mm | 550 mm | 7 mm |
| Oring 550 × 7,5 mm | 550 mm | 7,5 mm |
| Oring 550 × 8 mm | 550 mm | 8 mm |
| Oring 550 × 9 mm | 550 mm | 9 mm |

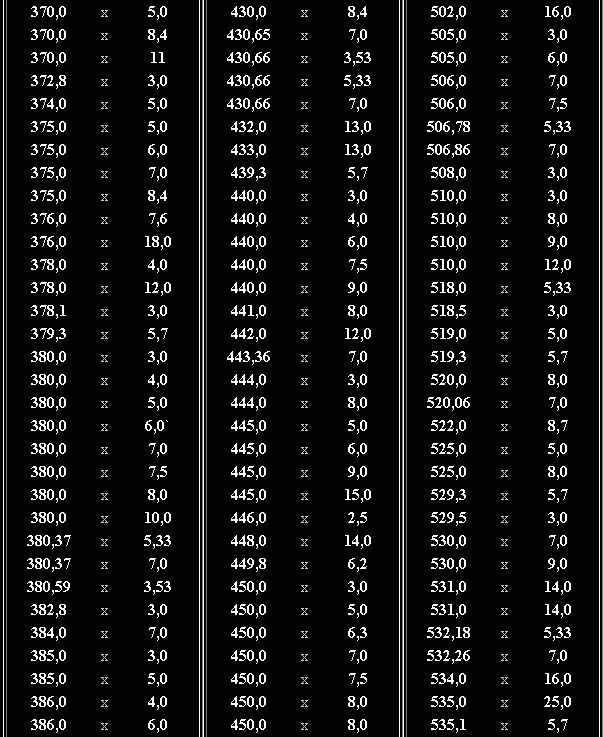

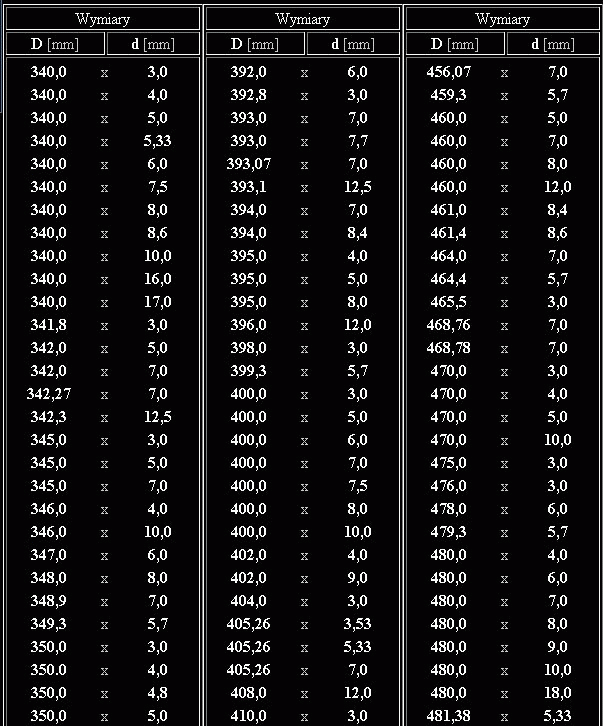

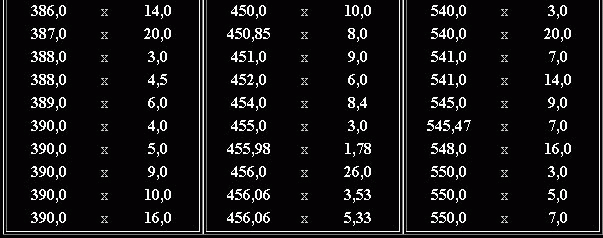

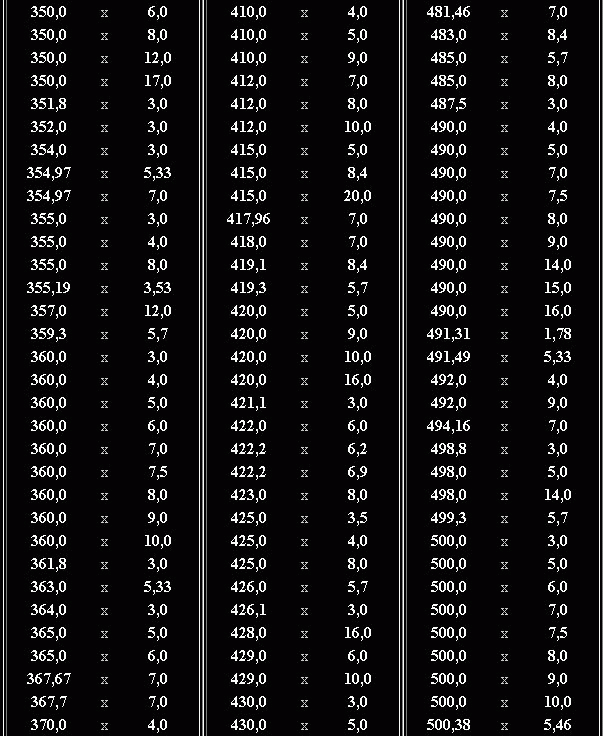

Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
