Oring
Rysunek poglądowy produktu. Poniżej znajduje się katalog wymiarowy w formie tabeli HTML.

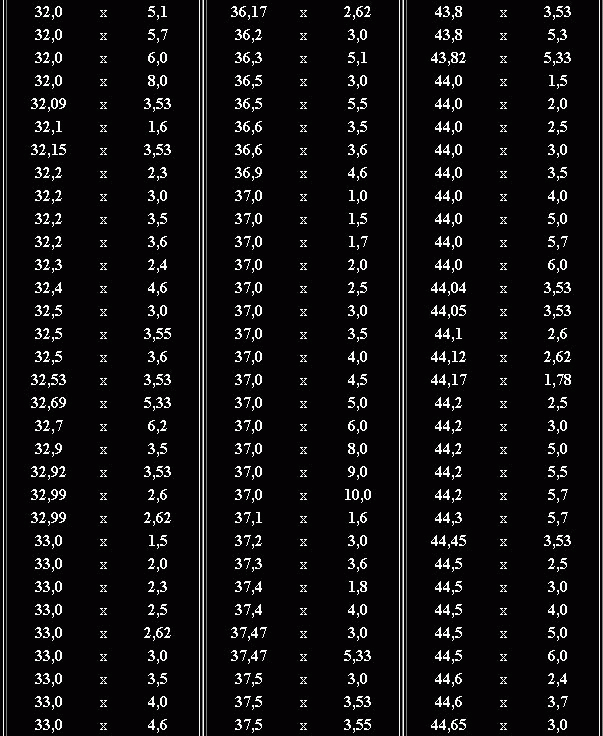

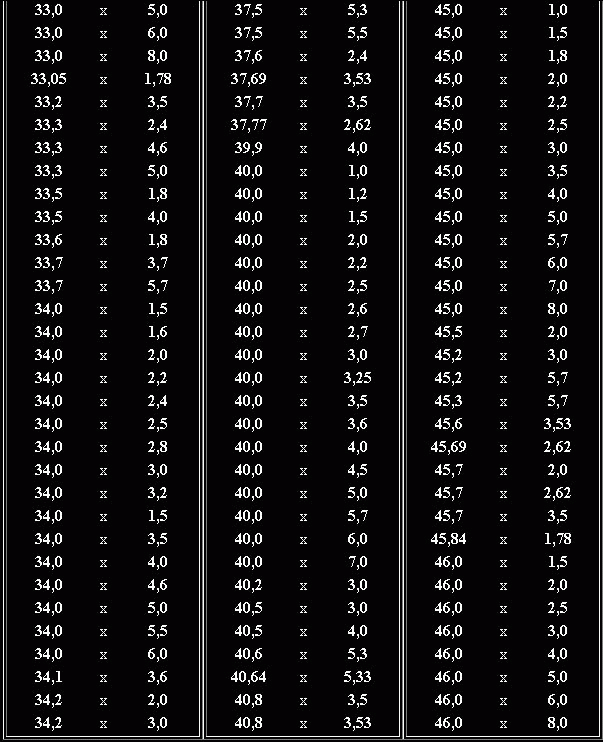

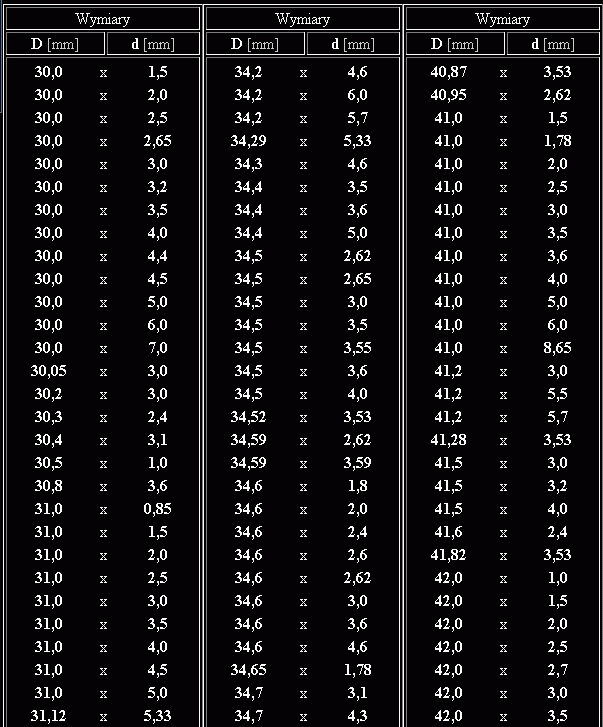

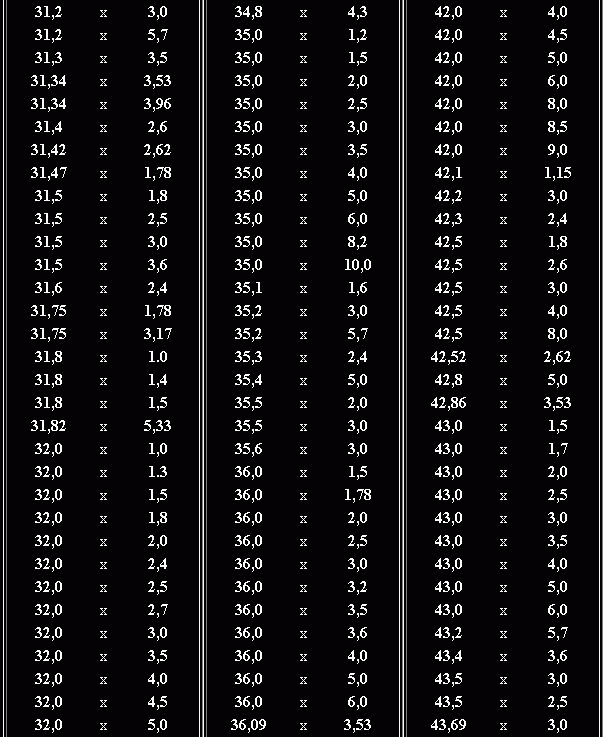

Oringi 30-46 mm – tabela wymiarów
Tabela katalogowa została odtworzona z materiału graficznego. Do każdej pozycji dodano nazwę Oring, aby wymiar był czytelny również dla wyszukiwarki.
291 pozycji| Oring – wymiar | D [mm] | d [mm] |
|---|---|---|
| Oring 30 × 2 mm | 30 mm | 2 mm |
| Oring 30 × 2,5 mm | 30 mm | 2,5 mm |
| Oring 30 × 2,65 mm | 30 mm | 2,65 mm |
| Oring 30 × 3,2 mm | 30 mm | 3,2 mm |
| Oring 30 × 3,5 mm | 30 mm | 3,5 mm |
| Oring 30 × 4 mm | 30 mm | 4 mm |
| Oring 30 × 4,4 mm | 30 mm | 4,4 mm |
| Oring 30 × 5 mm | 30 mm | 5 mm |
| Oring 30 × 6 mm | 30 mm | 6 mm |
| Oring 30 × 7 mm | 30 mm | 7 mm |
| Oring 30,05 × 3 mm | 30,05 mm | 3 mm |
| Oring 30,3 × 4 mm | 30,3 mm | 4 mm |
| Oring 30,4 × 3 mm | 30,4 mm | 3 mm |
| Oring 30,8 × 3,6 mm | 30,8 mm | 3,6 mm |
| Oring 31 × 0,85 mm | 31 mm | 0,85 mm |
| Oring 31 × 1,5 mm | 31 mm | 1,5 mm |
| Oring 31 × 2 mm | 31 mm | 2 mm |
| Oring 31 × 2,5 mm | 31 mm | 2,5 mm |
| Oring 31 × 3,5 mm | 31 mm | 3,5 mm |
| Oring 31 × 4 mm | 31 mm | 4 mm |
| Oring 31 × 4,8 mm | 31 mm | 4,8 mm |
| Oring 31 × 5 mm | 31 mm | 5 mm |
| Oring 31,12 × 5,33 mm | 31,12 mm | 5,33 mm |
| Oring 32 × 3,8 mm | 32 mm | 3,8 mm |
| Oring 32 × 6 mm | 32 mm | 6 mm |
| Oring 32 × 8,9 mm | 32 mm | 8,9 mm |
| Oring 32,09 × 3,53 mm | 32,09 mm | 3,53 mm |
| Oring 32,1 × 1,6 mm | 32,1 mm | 1,6 mm |
| Oring 32,15 × 3,53 mm | 32,15 mm | 3,53 mm |
| Oring 32,2 × 2,3 mm | 32,2 mm | 2,3 mm |
| Oring 32,2 × 3 mm | 32,2 mm | 3 mm |
| Oring 32,2 × 3,6 mm | 32,2 mm | 3,6 mm |
| Oring 32,2 × 3,8 mm | 32,2 mm | 3,8 mm |
| Oring 32,4 × 4,6 mm | 32,4 mm | 4,6 mm |
| Oring 32,5 × 1,8 mm | 32,5 mm | 1,8 mm |
| Oring 32,5 × 2,6 mm | 32,5 mm | 2,6 mm |
| Oring 32,5 × 3 mm | 32,5 mm | 3 mm |
| Oring 32,5 × 3,55 mm | 32,5 mm | 3,55 mm |
| Oring 32,5 × 4 mm | 32,5 mm | 4 mm |
| Oring 32,5 × 8 mm | 32,5 mm | 8 mm |
| Oring 33 × 4,6 mm | 33 mm | 4,6 mm |
| Oring 33,3 × 2,4 mm | 33,3 mm | 2,4 mm |
| Oring 33,3 × 4,6 mm | 33,3 mm | 4,6 mm |
| Oring 33,3 × 5 mm | 33,3 mm | 5 mm |
| Oring 33,42 × 4,6 mm | 33,42 mm | 4,6 mm |
| Oring 33,42 × 5,7 mm | 33,42 mm | 5,7 mm |
| Oring 33,42 × 6 mm | 33,42 mm | 6 mm |
| Oring 33,429 × 8,33 mm | 33,429 mm | 8,33 mm |
| Oring 33,43 × 4,6 mm | 33,43 mm | 4,6 mm |
| Oring 33,44 × 3,6 mm | 33,44 mm | 3,6 mm |
| Oring 33,44 × 3,8 mm | 33,44 mm | 3,8 mm |
| Oring 33,44 × 5 mm | 33,44 mm | 5 mm |
| Oring 33,45 × 2,62 mm | 33,45 mm | 2,62 mm |
| Oring 33,45 × 2,65 mm | 33,45 mm | 2,65 mm |
| Oring 33,45 × 3 mm | 33,45 mm | 3 mm |
| Oring 33,45 × 3,55 mm | 33,45 mm | 3,55 mm |
| Oring 33,45 × 3,6 mm | 33,45 mm | 3,6 mm |
| Oring 33,45 × 3,8 mm | 33,45 mm | 3,8 mm |
| Oring 33,45 × 4 mm | 33,45 mm | 4 mm |
| Oring 33,452 × 3,53 mm | 33,452 mm | 3,53 mm |
| Oring 33,459 × 2,62 mm | 33,459 mm | 2,62 mm |
| Oring 33,459 × 3,59 mm | 33,459 mm | 3,59 mm |
| Oring 33,46 × 1,8 mm | 33,46 mm | 1,8 mm |
| Oring 33,46 × 2 mm | 33,46 mm | 2 mm |
| Oring 33,46 × 2,4 mm | 33,46 mm | 2,4 mm |
| Oring 33,46 × 2,6 mm | 33,46 mm | 2,6 mm |
| Oring 33,46 × 2,62 mm | 33,46 mm | 2,62 mm |
| Oring 33,46 × 3 mm | 33,46 mm | 3 mm |
| Oring 33,46 × 3,6 mm | 33,46 mm | 3,6 mm |
| Oring 33,46 × 4,6 mm | 33,46 mm | 4,6 mm |
| Oring 33,465 × 1,78 mm | 33,465 mm | 1,78 mm |
| Oring 33,47 × 4,3 mm | 33,47 mm | 4,3 mm |
| Oring 33,47 × 3/1 mm | 33,47 mm | 3/1 mm |
| Oring 33,5 × 1,8 mm | 33,5 mm | 1,8 mm |
| Oring 33,5 × 4 mm | 33,5 mm | 4 mm |
| Oring 33,63 × 4,1 mm | 33,63 mm | 4,1 mm |
| Oring 33,65 × 3 mm | 33,65 mm | 3 mm |
| Oring 33,65 × 5,5 mm | 33,65 mm | 5,5 mm |
| Oring 33,66 × 3,5 mm | 33,66 mm | 3,5 mm |
| Oring 33,66 × 3,6 mm | 33,66 mm | 3,6 mm |
| Oring 33,69 × 4,6 mm | 33,69 mm | 4,6 mm |
| Oring 33,7 × 1,5 mm | 33,7 mm | 1,5 mm |
| Oring 33,7 × 2 mm | 33,7 mm | 2 mm |
| Oring 33,7 × 2,5 mm | 33,7 mm | 2,5 mm |
| Oring 33,7 × 3 mm | 33,7 mm | 3 mm |
| Oring 33,7 × 3,5 mm | 33,7 mm | 3,5 mm |
| Oring 33,7 × 3,7 mm | 33,7 mm | 3,7 mm |
| Oring 33,7 × 4 mm | 33,7 mm | 4 mm |
| Oring 33,7 × 4,5 mm | 33,7 mm | 4,5 mm |
| Oring 33,7 × 4,57 mm | 33,7 mm | 4,57 mm |
| Oring 33,7 × 5 mm | 33,7 mm | 5 mm |
| Oring 33,7 × 8,9 mm | 33,7 mm | 8,9 mm |
| Oring 33,7 × 9 mm | 33,7 mm | 9 mm |
| Oring 33,709 × 6 mm | 33,709 mm | 6 mm |
| Oring 33,71 × 1,6 mm | 33,71 mm | 1,6 mm |
| Oring 33,72 × 3 mm | 33,72 mm | 3 mm |
| Oring 33,73 × 3,6 mm | 33,73 mm | 3,6 mm |
| Oring 33,74 × 1,8 mm | 33,74 mm | 1,8 mm |
| Oring 33,74 × 4 mm | 33,74 mm | 4 mm |
| Oring 33,747 × 3 mm | 33,747 mm | 3 mm |
| Oring 33,747 × 5,33 mm | 33,747 mm | 5,33 mm |
| Oring 33,75 × 3 mm | 33,75 mm | 3 mm |
| Oring 33,75 × 3,53 mm | 33,75 mm | 3,53 mm |
| Oring 33,75 × 3,55 mm | 33,75 mm | 3,55 mm |
| Oring 34 × 1,5 mm | 34 mm | 1,5 mm |
| Oring 34 × 1,6 mm | 34 mm | 1,6 mm |
| Oring 34 × 2 mm | 34 mm | 2 mm |
| Oring 34 × 2,2 mm | 34 mm | 2,2 mm |
| Oring 34 × 2,4 mm | 34 mm | 2,4 mm |
| Oring 34 × 2,5 mm | 34 mm | 2,5 mm |
| Oring 34 × 2,8 mm | 34 mm | 2,8 mm |
| Oring 34 × 3,2 mm | 34 mm | 3,2 mm |
| Oring 34 × 3,5 mm | 34 mm | 3,5 mm |
| Oring 34 × 4 mm | 34 mm | 4 mm |
| Oring 34 × 4,6 mm | 34 mm | 4,6 mm |
| Oring 34 × 5 mm | 34 mm | 5 mm |
| Oring 34 × 5,5 mm | 34 mm | 5,5 mm |
| Oring 34 × 6 mm | 34 mm | 6 mm |
| Oring 34,08 × 3,5 mm | 34,08 mm | 3,5 mm |
| Oring 34,08 × 3,53 mm | 34,08 mm | 3,53 mm |
| Oring 34,087 × 3,53 mm | 34,087 mm | 3,53 mm |
| Oring 34,095 × 2,62 mm | 34,095 mm | 2,62 mm |
| Oring 34,1 × 1,5 mm | 34,1 mm | 1,5 mm |
| Oring 34,1 × 2 mm | 34,1 mm | 2 mm |
| Oring 34,1 × 3,5 mm | 34,1 mm | 3,5 mm |
| Oring 34,1 × 3,6 mm | 34,1 mm | 3,6 mm |
| Oring 34,1 × 4 mm | 34,1 mm | 4 mm |
| Oring 34,1 × 5 mm | 34,1 mm | 5 mm |
| Oring 34,1 × 6 mm | 34,1 mm | 6 mm |
| Oring 34,128 × 3,53 mm | 34,128 mm | 3,53 mm |
| Oring 34,14 × 2,5 mm | 34,14 mm | 2,5 mm |
| Oring 34,15 × 3 mm | 34,15 mm | 3 mm |
| Oring 34,15 × 3,2 mm | 34,15 mm | 3,2 mm |
| Oring 34,15 × 4 mm | 34,15 mm | 4 mm |
| Oring 34,16 × 2,4 mm | 34,16 mm | 2,4 mm |
| Oring 34,182 × 3,53 mm | 34,182 mm | 3,53 mm |
| Oring 34,2 × 2 mm | 34,2 mm | 2 mm |
| Oring 34,2 × 3 mm | 34,2 mm | 3 mm |
| Oring 34,252 × 2,62 mm | 34,252 mm | 2,62 mm |
| Oring 34,3 × 4,7 mm | 34,3 mm | 4,7 mm |
| Oring 34,382 × 5,33 mm | 34,382 mm | 5,33 mm |
| Oring 34,4 × 1,5 mm | 34,4 mm | 1,5 mm |
| Oring 34,4 × 2 mm | 34,4 mm | 2 mm |
| Oring 34,4 × 2,5 mm | 34,4 mm | 2,5 mm |
| Oring 34,4 × 3,5 mm | 34,4 mm | 3,5 mm |
| Oring 34,4 × 4 mm | 34,4 mm | 4 mm |
| Oring 34,4 × 5 mm | 34,4 mm | 5 mm |
| Oring 34,4 × 6 mm | 34,4 mm | 6 mm |
| Oring 34,404 × 3,53 mm | 34,404 mm | 3,53 mm |
| Oring 34,405 × 3,53 mm | 34,405 mm | 3,53 mm |
| Oring 34,41 × 2,6 mm | 34,41 mm | 2,6 mm |
| Oring 34,412 × 2,62 mm | 34,412 mm | 2,62 mm |
| Oring 34,417 × 4,138 mm | 34,417 mm | 4,138 mm |
| Oring 34,42 × 2,5 mm | 34,42 mm | 2,5 mm |
| Oring 34,42 × 3 mm | 34,42 mm | 3 mm |
| Oring 34,42 × 5 mm | 34,42 mm | 5 mm |
| Oring 34,42 × 5,5 mm | 34,42 mm | 5,5 mm |
| Oring 34,42 × 5,7 mm | 34,42 mm | 5,7 mm |
| Oring 34,43 × 5,7 mm | 34,43 mm | 5,7 mm |
| Oring 34,445 × 3,53 mm | 34,445 mm | 3,53 mm |
| Oring 34,45 × 2,5 mm | 34,45 mm | 2,5 mm |
| Oring 34,45 × 4 mm | 34,45 mm | 4 mm |
| Oring 34,45 × 5 mm | 34,45 mm | 5 mm |
| Oring 34,46 × 2,4 mm | 34,46 mm | 2,4 mm |
| Oring 34,46 × 3,7 mm | 34,46 mm | 3,7 mm |
| Oring 34,465 × 3 mm | 34,465 mm | 3 mm |
| Oring 34,5 × 4,7 mm | 34,5 mm | 4,7 mm |
| Oring 34,5 × 5 mm | 34,5 mm | 5 mm |
| Oring 34,5 × 6 mm | 34,5 mm | 6 mm |
| Oring 34,56 × 3,53 mm | 34,56 mm | 3,53 mm |
| Oring 34,569 × 2,62 mm | 34,569 mm | 2,62 mm |
| Oring 34,57 × 2 mm | 34,57 mm | 2 mm |
| Oring 34,57 × 2,62 mm | 34,57 mm | 2,62 mm |
| Oring 34,57 × 3,5 mm | 34,57 mm | 3,5 mm |
| Oring 34,584 × 1,38 mm | 34,584 mm | 1,38 mm |
| Oring 34,6 × 3 mm | 34,6 mm | 3 mm |
| Oring 34,6 × 4 mm | 34,6 mm | 4 mm |
| Oring 34,6 × 5 mm | 34,6 mm | 5 mm |
| Oring 34,6 × 6 mm | 34,6 mm | 6 mm |
| Oring 34,6 × 8,9 mm | 34,6 mm | 8,9 mm |
| Oring 35 × 7 mm | 35 mm | 7 mm |
| Oring 37,6 × 2,4 mm | 37,6 mm | 2,4 mm |
| Oring 37,69 × 3,53 mm | 37,69 mm | 3,53 mm |
| Oring 37,7 × 3,5 mm | 37,7 mm | 3,5 mm |
| Oring 37,77 × 2,62 mm | 37,77 mm | 2,62 mm |
| Oring 39,9 × 4 mm | 39,9 mm | 4 mm |
| Oring 40 × 1,5 mm | 40 mm | 1,5 mm |
| Oring 40 × 1,8 mm | 40 mm | 1,8 mm |
| Oring 40 × 2 mm | 40 mm | 2 mm |
| Oring 40 × 2,2 mm | 40 mm | 2,2 mm |
| Oring 40 × 2,5 mm | 40 mm | 2,5 mm |
| Oring 40 × 2,6 mm | 40 mm | 2,6 mm |
| Oring 40 × 2,7 mm | 40 mm | 2,7 mm |
| Oring 40 × 3,5 mm | 40 mm | 3,5 mm |
| Oring 40 × 3,6 mm | 40 mm | 3,6 mm |
| Oring 40 × 4 mm | 40 mm | 4 mm |
| Oring 40 × 5 mm | 40 mm | 5 mm |
| Oring 40 × 5,7 mm | 40 mm | 5,7 mm |
| Oring 40 × 6 mm | 40 mm | 6 mm |
| Oring 40 × 7 mm | 40 mm | 7 mm |
| Oring 40 × 12 mm | 40 mm | 12 mm |
| Oring 40,2 × 3 mm | 40,2 mm | 3 mm |
| Oring 40,5 × 3 mm | 40,5 mm | 3 mm |
| Oring 40,5 × 4 mm | 40,5 mm | 4 mm |
| Oring 42 × 2,5 mm | 42 mm | 2,5 mm |
| Oring 42 × 2,7 mm | 42 mm | 2,7 mm |
| Oring 42 × 3 mm | 42 mm | 3 mm |
| Oring 42 × 3,5 mm | 42 mm | 3,5 mm |
| Oring 42 × 5,5 mm | 42 mm | 5,5 mm |
| Oring 42,25 × 3,6 mm | 42,25 mm | 3,6 mm |
| Oring 42,8 × 5 mm | 42,8 mm | 5 mm |
| Oring 42,86 × 3,53 mm | 42,86 mm | 3,53 mm |
| Oring 43 × 1,5 mm | 43 mm | 1,5 mm |
| Oring 43 × 2 mm | 43 mm | 2 mm |
| Oring 43 × 2,5 mm | 43 mm | 2,5 mm |
| Oring 43 × 3,5 mm | 43 mm | 3,5 mm |
| Oring 43 × 4 mm | 43 mm | 4 mm |
| Oring 43 × 4,7 mm | 43 mm | 4,7 mm |
| Oring 43 × 5 mm | 43 mm | 5 mm |
| Oring 43 × 6 mm | 43 mm | 6 mm |
| Oring 43,13 × 3,8 mm | 43,13 mm | 3,8 mm |
| Oring 43,134 × 3,83 mm | 43,134 mm | 3,83 mm |
| Oring 43,134 × 3,96 mm | 43,134 mm | 3,96 mm |
| Oring 43,142 × 2,62 mm | 43,142 mm | 2,62 mm |
| Oring 43,147 × 4,138 mm | 43,147 mm | 4,138 mm |
| Oring 43,15 × 1,8 mm | 43,15 mm | 1,8 mm |
| Oring 43,15 × 2,5 mm | 43,15 mm | 2,5 mm |
| Oring 43,15 × 3,6 mm | 43,15 mm | 3,6 mm |
| Oring 43,175 × 1,8 mm | 43,175 mm | 1,8 mm |
| Oring 43,18 × 1 mm | 43,18 mm | 1 mm |
| Oring 43,18 × 1,5 mm | 43,18 mm | 1,5 mm |
| Oring 43,18 × 10 mm | 43,18 mm | 10 mm |
| Oring 43,182 × 5,33 mm | 43,182 mm | 5,33 mm |
| Oring 43,2 × 1,3 mm | 43,2 mm | 1,3 mm |
| Oring 43,2 × 1,8 mm | 43,2 mm | 1,8 mm |
| Oring 43,2 × 2 mm | 43,2 mm | 2 mm |
| Oring 43,2 × 2,4 mm | 43,2 mm | 2,4 mm |
| Oring 43,2 × 2,5 mm | 43,2 mm | 2,5 mm |
| Oring 43,2 × 3,5 mm | 43,2 mm | 3,5 mm |
| Oring 43,2 × 4 mm | 43,2 mm | 4 mm |
| Oring 43,2 × 4,1 mm | 43,2 mm | 4,1 mm |
| Oring 43,2 × 5 mm | 43,2 mm | 5 mm |
| Oring 43,253 × 3,83 mm | 43,253 mm | 3,83 mm |
| Oring 43,27 × 6,2 mm | 43,27 mm | 6,2 mm |
| Oring 43,29 × 3,5 mm | 43,29 mm | 3,5 mm |
| Oring 43,292 × 3,53 mm | 43,292 mm | 3,53 mm |
| Oring 43,299 × 2,6 mm | 43,299 mm | 2,6 mm |
| Oring 43,299 × 2,62 mm | 43,299 mm | 2,62 mm |
| Oring 43,3 × 2 mm | 43,3 mm | 2 mm |
| Oring 43,3 × 2,3 mm | 43,3 mm | 2,3 mm |
| Oring 43,3 × 2,5 mm | 43,3 mm | 2,5 mm |
| Oring 43,3 × 2,62 mm | 43,3 mm | 2,62 mm |
| Oring 43,3 × 3,5 mm | 43,3 mm | 3,5 mm |
| Oring 43,3 × 8,9 mm | 43,3 mm | 8,9 mm |
| Oring 43,305 × 1,8 mm | 43,305 mm | 1,8 mm |
| Oring 43,4 × 3,6 mm | 43,4 mm | 3,6 mm |
| Oring 43,5 × 2 mm | 43,5 mm | 2 mm |
| Oring 43,5 × 2,5 mm | 43,5 mm | 2,5 mm |
| Oring 43,5 × 3 mm | 43,5 mm | 3 mm |
| Oring 43,5 × 3,5 mm | 43,5 mm | 3,5 mm |
| Oring 43,5 × 4 mm | 43,5 mm | 4 mm |
| Oring 43,5 × 5 mm | 43,5 mm | 5 mm |
| Oring 43,5 × 6 mm | 43,5 mm | 6 mm |
| Oring 43,5 × 8,2 mm | 43,5 mm | 8,2 mm |
| Oring 43,51 × 1,6 mm | 43,51 mm | 1,6 mm |
| Oring 43,52 × 3 mm | 43,52 mm | 3 mm |
| Oring 43,52 × 4,7 mm | 43,52 mm | 4,7 mm |
| Oring 43,53 × 4,4 mm | 43,53 mm | 4,4 mm |
| Oring 43,54 × 5 mm | 43,54 mm | 5 mm |
| Oring 43,55 × 2 mm | 43,55 mm | 2 mm |
| Oring 43,56 × 3 mm | 43,56 mm | 3 mm |
| Oring 43,6 × 1,8 mm | 43,6 mm | 1,8 mm |
| Oring 43,6 × 2 mm | 43,6 mm | 2 mm |
| Oring 43,6 × 2,5 mm | 43,6 mm | 2,5 mm |
| Oring 43,6 × 3 mm | 43,6 mm | 3 mm |
| Oring 43,6 × 3,2 mm | 43,6 mm | 3,2 mm |
| Oring 43,6 × 3,5 mm | 43,6 mm | 3,5 mm |
| Oring 43,6 × 3,6 mm | 43,6 mm | 3,6 mm |
| Oring 43,6 × 4 mm | 43,6 mm | 4 mm |
| Oring 43,6 × 5 mm | 43,6 mm | 5 mm |
| Oring 43,6 × 6 mm | 43,6 mm | 6 mm |
| Oring 43,609 × 3,53 mm | 43,609 mm | 3,53 mm |
| Oring 43,69 × 3 mm | 43,69 mm | 3 mm |
| Oring 44,2 × 5 mm | 44,2 mm | 5 mm |
| Oring 44,2 × 6 mm | 44,2 mm | 6 mm |
| Oring 44,2 × 8,7 mm | 44,2 mm | 8,7 mm |
| Oring 44,2 × 9 mm | 44,2 mm | 9 mm |
| Oring 44,23 × 2,4 mm | 44,23 mm | 2,4 mm |
| Oring 44,5 × 2 mm | 44,5 mm | 2 mm |
| Oring 44,6 × 2 mm | 44,6 mm | 2 mm |
| Oring 44,6 × 5,3 mm | 44,6 mm | 5,3 mm |
Oryginalny katalog graficzny – porównaj dane
Zapytaj o produkt lub zamiennik
ABS Serwis, ul. Kościelna 5/L5, 20-307 Lublin • pon.–pt. 8:00–16:00
